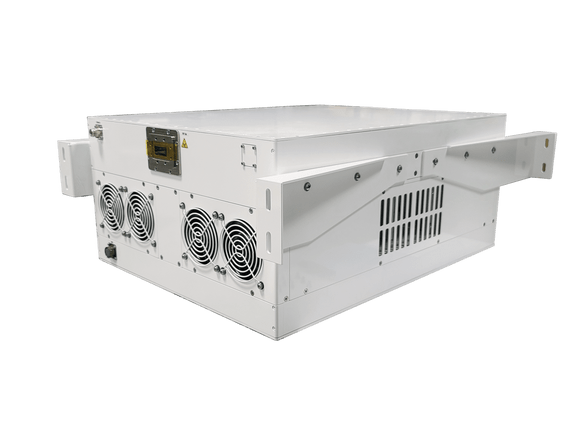

ETL Systems TPB-KXB0580-600 600-1000W Ku-Band Outdoor SSPA

Smaller, lighter and more powerful SSPA Series allows significant high power BUC / SSPB / SSPA while substantially improving thermal efficiency, leading to higher reliability and longer MTBF.

Powered by GaN technology, the 600W to 1000W Ku-Band SSPA Series are very compact, light and extremely powerful. Weighing only 75 lbs at 500W and 125lbs at 1000W output power, this new Ku-band 600W to 1000W product family is the most powerful and feature rich for its size.

Featuring best in class RF characteristics, true RMS power measurements, extensive monitor and control capabilities enabled via Ethernet, Serial and/or Analog Interfaces. The remarkably compact size and high thermal efficiency results in overall system size and cost reduction making it the ideal candidate for mobile and fixed VSAT applications.

Options

• Internal 10MHz Reference clock
• Autosense 10 MHz Reference clock
• Automatic Level Control (ALC)
• Antenna Mounting Kit
• 1:1 and 1:2 Redundancy Kit
• Remote Control Panel

Features

• Extremely High Power Density
  • Lightweight compact package up to 1000W output power
• Superior RF performance
  • Superior Phase Noise: 8 dB better than IESS308/309 recommendation
  • Spurious emission below -60 dBc
  • Wide range Gain Control
  • Highest Linearity at small back-off
• RF Overdrive Protection
• Redundancy ready with no external controller required
• Status LED
• Analogue Interface
• Available in different frequency options
  • C-Band-Super-ext, Palapa, Insat
  • Ku-Band – Ext and Stand Ku-Band in one unit; switchable LO
• Extensive M&C capability
  • Serial: RS 232 & RS 485
  • Ethernet: embedded Web browser (HTTP) & SNMPv3 support
• Available in GaAs configuration
• Input and output True RMS power detection
• Field upgradable software
