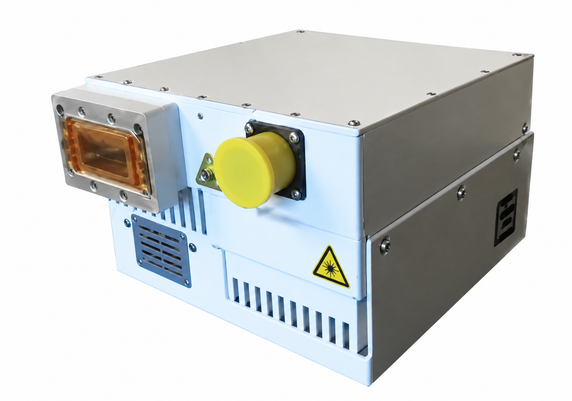

ETL Systems TPA-XB00430-500 16-100W X-Band Outdoor SSPA
Product Code:
TPA-XB00430-500
Condition:
New
Weight:
2.50 KGS
Width:
16.50
(cm)
Height:
11.50
(cm)
Depth:
16.50
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
The STS16/20/25/40/50/80/100X series is one of the smallest, lightweight efficient units available today.
With best in class RF characteristics, embedded output isolator, extensive monitor and control capabilities enabled via Ethernet, Serial and/or Analogue interfaces.
Designed for portable, mobile and VSAT on the move applications. Its small size and weight allows direct feed horn mounting, which makes it a most economical solution for fixed VSAT applications.
Options
- Internal 10MHz Reference clock
- Antenna Mounting Kit
- Built in auto-ranging AC power supply
Features
- Up to 100W Psat in this super compact lightweight package 2.5Kg 16.5 x 18.5 x 11.5 cms.
- Ideal for feed horn mounting
- Low power consumption
- Superior RF performance:
- Phase noise 10dB better than IESS308/309
- P1dB of 46dBm min
- Spurious below –60dBc
- Wide dynamic range of Gain control
- Output power measurement - True RMS detector
- Integrated L-Band to X-Band up-converter
- Built-in Output Isolator provides full output VSWR protection
- Configuration via RS-232 serial console, packet protocol RS-485 - User friendly HTTP based GUI and SNMP optional
- 48VDC isolated power supply
- Redundant ready with no external controller
- Field upgradeable software
- Status LED
