ETL Systems SCP-436024 Scorpion Series 15 dB IF-Band Proximity Coupler
Product Code:
SCP-436024
Condition:
New
Weight:
1.00 KGS
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394

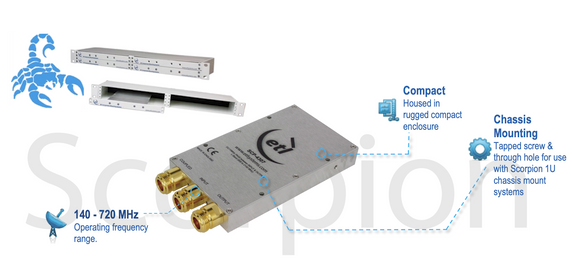

The ETL Systems SCP-436024 is a 15 dB IF-band proximity coupler from the Scorpion Series, designed for RF signal monitoring in satellite, telecom, and test environments. It operates over the 140–720 MHz frequency range and is compatible with the Scorpion modular chassis system, allowing for flexible integration into rack-mounted setups.
Available with RF connector options: 50 Ω SMA, 50 Ω N-Type and 50 Ω BNC.
Key Features:
- 10MHz & DC pass on through port
- To be used as standalone unit or fitted to the Scorpion 1U rack mount chassis SCP-1U-11
| SKU | Freq. Low2 | Freq. High2 | Coupling Factor (dB) | DC Pass | DC Block |
| SCP-436024-N5N5N5 | 140MHz | 720MHz | 15 | None | All Ports |
| SCP-436024-B5B5B5 | 140MHz | 720MHz | 15 | None | All Ports |
| SCP-436024-S5S5S5 | 140MHz | 720MHz | 15 | None | All Ports |
5 customers are viewing this product
Details
The ETL Systems SCP-436024 is a 15 dB IF-band proximity coupler from the Scorpion Series, designed for RF signal monitoring in satellite, telecom, and test environments. It operates over the 140–720 MHz frequency range and is compatible with the Scorpion modular chassis system, allowing for flexible integration into rack-mounted setups.
Available with RF connector options: 50 Ω SMA, 50 Ω N-Type and 50 Ω BNC.
Key Features:
- 10MHz & DC pass on through port
- To be used as standalone unit or fitted to the Scorpion 1U rack mount chassis SCP-1U-11
| SKU | Freq. Low2 | Freq. High2 | Coupling Factor (dB) | DC Pass | DC Block |
| SCP-436024-N5N5N5 | 140MHz | 720MHz | 15 | None | All Ports |
| SCP-436024-B5B5B5 | 140MHz | 720MHz | 15 | None | All Ports |
| SCP-436024-S5S5S5 | 140MHz | 720MHz | 15 | None | All Ports |
