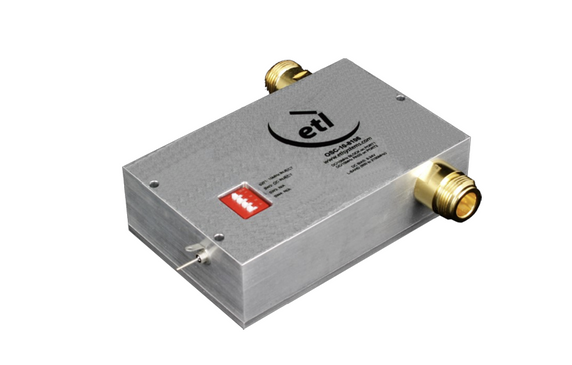

ETL SYSTEMS OSC-10-8112 L-BAND OSCILLATOR
Product Code:
OSC-10-8112
Condition:
New
Availability:
YES
Weight:
1.00 KGS
$924.15
10 MHz ovenised oscillator with option to insert DC onto the output port.
Applications: Typical fields of applications are telecom infrastructures, satellite systems, microwave links, test and instrumentation and radar networks.
| OSC-10-8112 | S5S5 | N5N5 | B5B5 | B7B7 | F7F7 |
| Frequency Range | 850 - 2150 MHz | ||||
| RF Connectors | 50Ω SMA | 50Ω N-Type | 50Ω BNC | 75Ω BNC | 75Ω F-Type |
| Typ. Insertion Loss (dB) Max. Output Level (dBm) |
0.7 1.2 0 ± 2.5 |
0.7 1.2 0 ± 2.5 |
0.7 1.2 0 ± 2.5 |
0.7 1.2 0 ± 2.5 |
0.7 1.2 0 ± 2.5 |
| Typ. Input Return Loss (dB) Min |
16 10 |
16 10 |
15 10 |
12 8 |
12 8 |
| Typ. Output Return Loss (dB) Min |
16 10 |
16 10 |
15 10 |
10 8 |
10 8 |
| 10MHz Rejection is -65dB* *to ports which are applicable |
|||||
