ETL Systems

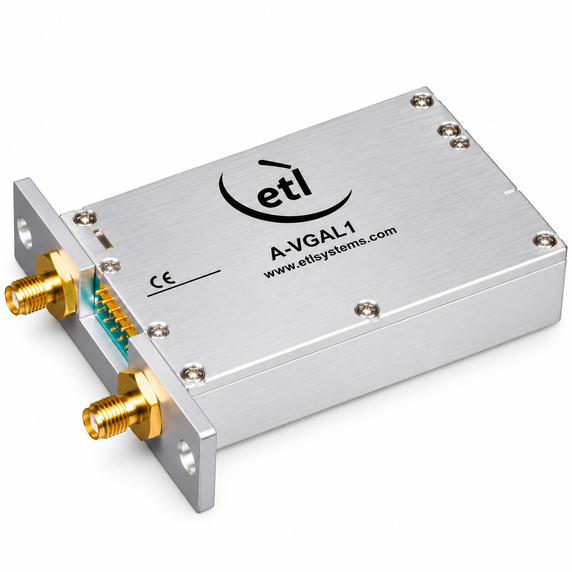

ETL Systems A-VGAL1-3053 L-band Variable 0-30 dB Gain Amplifier With 8-24V External Bias
Product Code:
A-VGAL1-3053
Condition:
New
Availability:
YES
Weight:
1.00 KGS
Request a quote at Contact@orbitalconnect.com or +1.888.315.9545
Variable Gain L-band (850-2150MHz) amplifier with 0 to 30 dB gain settable in 1dB gain steps. DC Pass and 10MHz Block requires 8-24 Volts inline bias.
Available with RF connector options: 50 Ω SMA, 50 Ω N-type, 50 Ω BNC, 75 Ω BNC and 75 Ω F-type.
Key Features:
- 0 to 30dB gain settable in 1dB steps
- Built in regulator
- Requires 8-24V on RF power line
- All ports 10MHz reject & DC pass
| SKU | Freq. Low | Freq. High | Freq. Unit | Output P1dB Typ. (dBm) | OIP3 Typ. (dBm) | Noise Figure Typ. (dB) | DC Supply Voltage |
| A-VGAL1-3053-F7F7 | 850MHz | 2150MHz | MHz | 18 | 27 | 12 | +12V |
| A-VGAL1-3053-B7B7 | 850MHz | 2150MHz | MHz | 18 | 27 | 12 | +12V |
| A-VGAL1-3053-S5S5 | 850MHz | 2150MHz | MHz | 18 | 27 | 12 | +12V |
| A-VGAL1-3053-B5B5 | 850MHz | 2150MHz | MHz | 18 | 27 | 12 | +12V |
| A-VGAL1-3053-N5N5 | 850MHz | 2150MHz | MHz | 18 | 27 | 12 | +12V |
5 customers are viewing this product
Details
Variable Gain L-band (850-2150MHz) amplifier with 0 to 30 dB gain settable in 1dB gain steps. DC Pass and 10MHz Block requires 8-24 Volts inline bias.
Available with RF connector options: 50 Ω SMA, 50 Ω N-type, 50 Ω BNC, 75 Ω BNC and 75 Ω F-type.
Key Features:
- 0 to 30dB gain settable in 1dB steps
- Built in regulator
- Requires 8-24V on RF power line
- All ports 10MHz reject & DC pass
| SKU | Freq. Low | Freq. High | Freq. Unit | Output P1dB Typ. (dBm) | OIP3 Typ. (dBm) | Noise Figure Typ. (dB) | DC Supply Voltage |
| A-VGAL1-3053-F7F7 | 850MHz | 2150MHz | MHz | 18 | 27 | 12 | +12V |
| A-VGAL1-3053-B7B7 | 850MHz | 2150MHz | MHz | 18 | 27 | 12 | +12V |
| A-VGAL1-3053-S5S5 | 850MHz | 2150MHz | MHz | 18 | 27 | 12 | +12V |
| A-VGAL1-3053-B5B5 | 850MHz | 2150MHz | MHz | 18 | 27 | 12 | +12V |
| A-VGAL1-3053-N5N5 | 850MHz | 2150MHz | MHz | 18 | 27 | 12 | +12V |
