ETL Systems

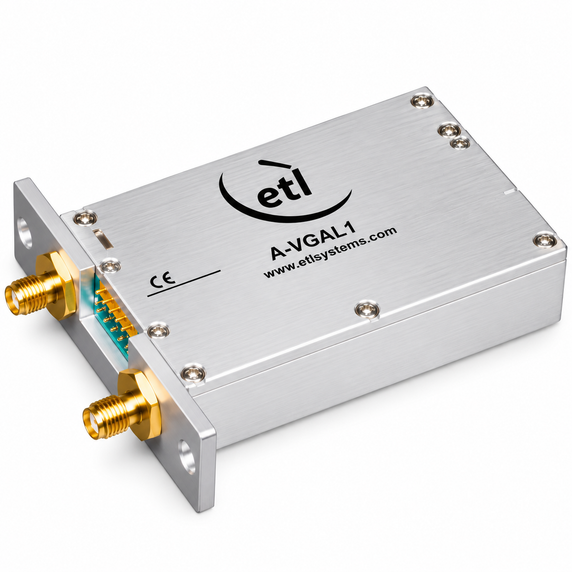

ETL Systems A-VGAL1-3026 L-Band Variable Gain Amplifier
Product Code:
A-VGAL1-3026
Condition:
New
Weight:
1.00 KGS
Width:
8.00
(cm)
Height:
7.40
(cm)
Depth:
1.80
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
The ETL Systems A-VGAL1-3026 is a high-performance, externally powered L-band variable gain amplifier designed for applications such as satellite communications, broadcast systems, and RF distribution networks. It offers flexible gain control and a variety of RF connector options to suit diverse system requirements.
Available with RF connector options: 50 Ω SMA, 50 Ω N-type, 50 Ω BNC, 75 Ω BNC and 75 Ω F-type.
Key Features:
- DC and 10MHz pass
- Gain selectable from 0 to 30dB in 1dB gain steps
- Requires 8-24V for external Bias
| SKU | Freq. Low | Freq. High | Freq. Unit | Output P1dB Typ. (dBm) | OIP3 Typ. (dBm) | Noise Figure Typ. (dB) | DC Supply Voltage |
| A-VGAL1-3026-B5B5 | 850MHz | 2150MHz | MHz | 18 | 27 | 12 | +12V |
| A-VGAL1-3026-N5N5 | 850MHz | 2150MHz | MHz | 18 | 27 | 12 | +12V |
| A-VGAL1-3026-S5S5 | 850MHz | 2150MHz | MHz | 18 | 27 | 12 | +12V |
| A-VGAL1-3026-F7F7 | 850MHz | 2150MHz | MHz | 18 | 27 | 12 | +12V |
| A-VGAL1-3026-B7B7 | 850MHz | 2150MHz | MHz | 18 | 27 | 12 | +12V |
5 customers are viewing this product
Details
The ETL Systems A-VGAL1-3026 is a high-performance, externally powered L-band variable gain amplifier designed for applications such as satellite communications, broadcast systems, and RF distribution networks. It offers flexible gain control and a variety of RF connector options to suit diverse system requirements.
Available with RF connector options: 50 Ω SMA, 50 Ω N-type, 50 Ω BNC, 75 Ω BNC and 75 Ω F-type.
Key Features:
- DC and 10MHz pass
- Gain selectable from 0 to 30dB in 1dB gain steps
- Requires 8-24V for external Bias
| SKU | Freq. Low | Freq. High | Freq. Unit | Output P1dB Typ. (dBm) | OIP3 Typ. (dBm) | Noise Figure Typ. (dB) | DC Supply Voltage |
| A-VGAL1-3026-B5B5 | 850MHz | 2150MHz | MHz | 18 | 27 | 12 | +12V |
| A-VGAL1-3026-N5N5 | 850MHz | 2150MHz | MHz | 18 | 27 | 12 | +12V |
| A-VGAL1-3026-S5S5 | 850MHz | 2150MHz | MHz | 18 | 27 | 12 | +12V |
| A-VGAL1-3026-F7F7 | 850MHz | 2150MHz | MHz | 18 | 27 | 12 | +12V |
| A-VGAL1-3026-B7B7 | 850MHz | 2150MHz | MHz | 18 | 27 | 12 | +12V |
