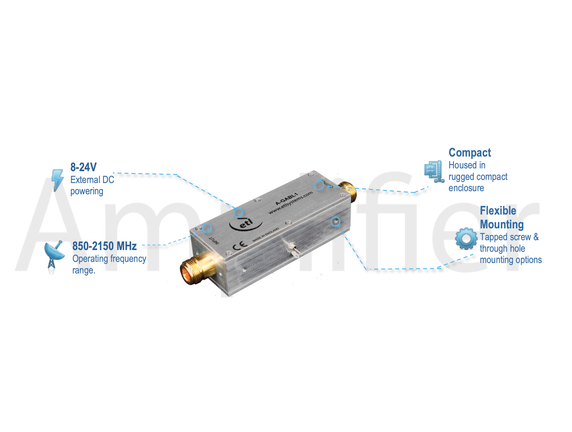

ETL Systems A-GABL1-3214 L-Band Amplifier
Product Code:
A-GABL1-3214
Condition:
New
Weight:
1.00 KGS
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
The ETL Systems A-GABL1-3214 is an L-band RF amplifier designed for satellite communications, broadcast, and test applications.
Available with RF connector options: 50 Ω SMA, 50 Ω N-type, 50 Ω BNC, 75 Ω BNC and 75 Ω F-type.
Key Features:
- DC block on the input port
- Gain options of +10, +20 and +30 dB
- LNB injection onto the input port
- DC block on the output port
- Requires 8 to 24V external DC bias
| SKU | Freq. Low | Freq. High | Freq. Unit | Gain (dB) | Output P1dB Typ. (dBm) | OIP3 Typ. (dBm) | Noise Figure Typ. (dB) | DC Supply Voltage |
| A-GABL1-3214-B5B5 | 850MHz | 2150MHz | MHz | 20 | 18 | 28 | 10 | +12V |
| A-GABL1-3214-B7B7 | 850MHz | 2150MHz | MHz | 20 | 18 | 28 | 10 | +12V |
| A-GABL1-3214-N5N5 | 850MHz | 2150MHz | MHz | 20 | 18 | 28 | 10 | +12V |
| A-GABL1-3214-S5S5 | 850MHz | 2150MHz | MHz | 20 | 18 | 28 | 10 | +12V |
| A-GABL1-3214-F7F7 | 850MHz | 2150MHz | MHz | 20 | 18 | 28 | 10 | +12V |
5 customers are viewing this product
Details
The ETL Systems A-GABL1-3214 is an L-band RF amplifier designed for satellite communications, broadcast, and test applications.
Available with RF connector options: 50 Ω SMA, 50 Ω N-type, 50 Ω BNC, 75 Ω BNC and 75 Ω F-type.
Key Features:
- DC block on the input port
- Gain options of +10, +20 and +30 dB
- LNB injection onto the input port
- DC block on the output port
- Requires 8 to 24V external DC bias
| SKU | Freq. Low | Freq. High | Freq. Unit | Gain (dB) | Output P1dB Typ. (dBm) | OIP3 Typ. (dBm) | Noise Figure Typ. (dB) | DC Supply Voltage |
| A-GABL1-3214-B5B5 | 850MHz | 2150MHz | MHz | 20 | 18 | 28 | 10 | +12V |
| A-GABL1-3214-B7B7 | 850MHz | 2150MHz | MHz | 20 | 18 | 28 | 10 | +12V |
| A-GABL1-3214-N5N5 | 850MHz | 2150MHz | MHz | 20 | 18 | 28 | 10 | +12V |
| A-GABL1-3214-S5S5 | 850MHz | 2150MHz | MHz | 20 | 18 | 28 | 10 | +12V |
| A-GABL1-3214-F7F7 | 850MHz | 2150MHz | MHz | 20 | 18 | 28 | 10 | +12V |
Download
| Download Name | |
| ETL Systems A-GABL1-3214 L-Band Amplifier datasheet | |
