ETL Systems

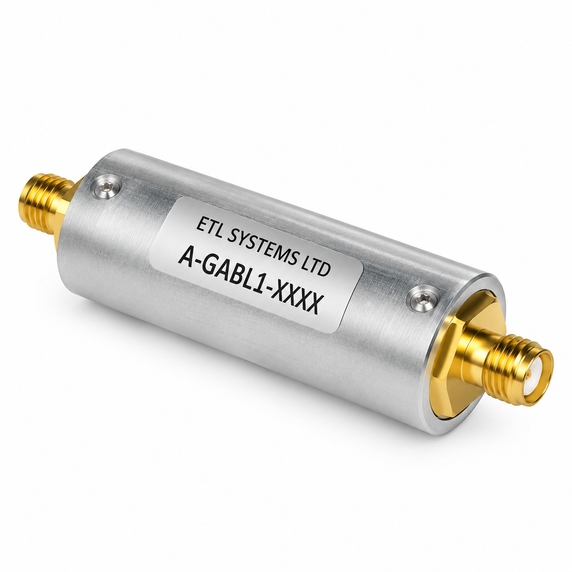

ETL Systems A-GABL1-3114 L-Band Amplifier
Product Code:
A-GABL1-3114
Condition:
New
Weight:
1.00 KGS
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
The ETL Systems A-GABL1-3114 is a high-gain L-band RF amplifier designed for applications such as satellite communications, radar systems, and test and measurement setups.
Key Features:
- DC block between the input port and output port
- Gain options of +10, +15 and +20, +25 and +28 dB
- Requires 8-24V external DC powering
| SKU | Freq. Low | Freq. High | Freq. Unit | Gain (dB) | Output P1dB Typ. (dBm) | OIP3 Typ. (dBm) | Noise Figure Typ. (dB) | DC Supply Voltage |
| A-GABL1-3114-F7F7 | 850MHz | 2150MHz | MHz | 30 | 15 | 25 | 8 | +12V |
| A-GABL1-3114-S5S5 | 850MHz | 2150MHz | MHz | 30 | 15 | 25 | 8 | +12V |
| A-GABL1-3114-B5B5 | 850MHz | 2150MHz | MHz | 30 | 15 | 25 | 8 | +12V |
| A-GABL1-3114-B7B7 | 850MHz | 2150MHz | MHz | 30 | 15 | 25 | 8 | +12V |
| A-GABL1-3114-N5N5 | 850MHz | 2150MHz | MHz | 30 | 15 | 25 | 8 | +12V |
5 customers are viewing this product
Details
The ETL Systems A-GABL1-3114 is a high-gain L-band RF amplifier designed for applications such as satellite communications, radar systems, and test and measurement setups.
Key Features:
- DC block between the input port and output port
- Gain options of +10, +15 and +20, +25 and +28 dB
- Requires 8-24V external DC powering
| SKU | Freq. Low | Freq. High | Freq. Unit | Gain (dB) | Output P1dB Typ. (dBm) | OIP3 Typ. (dBm) | Noise Figure Typ. (dB) | DC Supply Voltage |
| A-GABL1-3114-F7F7 | 850MHz | 2150MHz | MHz | 30 | 15 | 25 | 8 | +12V |
| A-GABL1-3114-S5S5 | 850MHz | 2150MHz | MHz | 30 | 15 | 25 | 8 | +12V |
| A-GABL1-3114-B5B5 | 850MHz | 2150MHz | MHz | 30 | 15 | 25 | 8 | +12V |
| A-GABL1-3114-B7B7 | 850MHz | 2150MHz | MHz | 30 | 15 | 25 | 8 | +12V |
| A-GABL1-3114-N5N5 | 850MHz | 2150MHz | MHz | 30 | 15 | 25 | 8 | +12V |
Download
| Download Name | |
| ETL Systems A-GABL1-3114 L-Band Amplifier datasheet | |
