ETL Systems

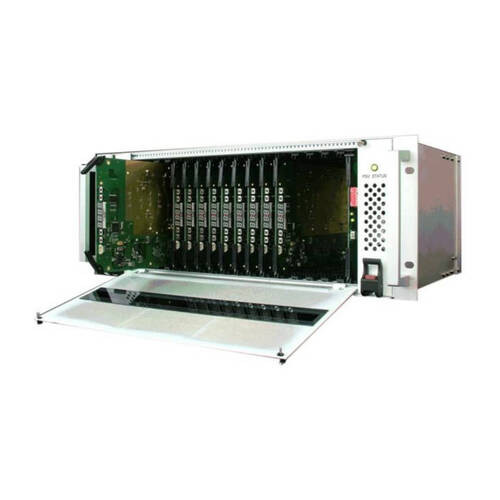

ETL Systems 26128 Modular L-band Splitter Active 4-way Variable Gain - MULTI
Product Code:
26128-DIV407-XXXX
Availability:
YES
Weight:
20.00 KGS
Width:
48.26
(cm)
Height:
17.78
(cm)
Depth:
45.00
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.315.9545
Model 26128-DIV407-XXXX, is an L-band (850-2150MHz) active 4-way splitter module card with 0-28 dB variable gain, 0-6 dB variable slope compensation and 0/13/18V LNB powering.
It is designed to be housed in a Model 26128 modular system chassis, which holds up to 16 splitter modules. The chassis benefits from hot-swap RF cards, dual redundant hot-swap power supplies for reliability in service and a hot-swap CPU module.
Remote control and monitoring is via RJ45 Ethernet port with SNMP and web browser interface.
The modular system chassis can hold a mix of RF cards including splitters, combiners, amplifiers, switches and attenuators, providing flexible signal management in a compact housing.
5 customers are viewing this product
Details
Model 26128-DIV407-XXXX, is an L-band (850-2150MHz) active 4-way splitter module card with 0-28 dB variable gain, 0-6 dB variable slope compensation and 0/13/18V LNB powering.
It is designed to be housed in a Model 26128 modular system chassis, which holds up to 16 splitter modules. The chassis benefits from hot-swap RF cards, dual redundant hot-swap power supplies for reliability in service and a hot-swap CPU module.
Remote control and monitoring is via RJ45 Ethernet port with SNMP and web browser interface.
The modular system chassis can hold a mix of RF cards including splitters, combiners, amplifiers, switches and attenuators, providing flexible signal management in a compact housing.
