DroneShield

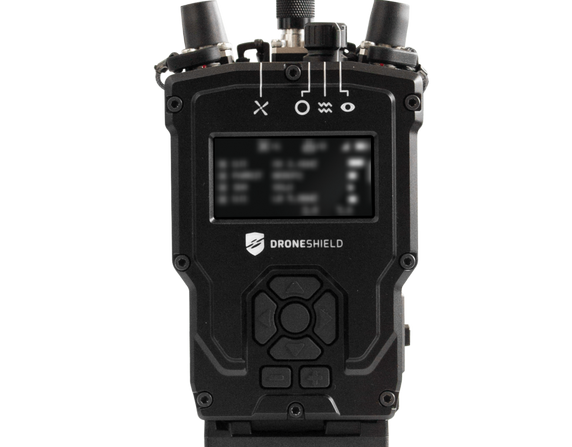

DroneShield RfPatrol Mk2 Portable Threat Detection, Redefined
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
The RfPatrol Mk2 is a next-generation wearable solution providing true airspace awareness for military, law enforcement, and executive security personnel.
Compact, intuitive, and highly effective, it ensures full situational awareness providing operators with a decisive advantage.
Key Features:

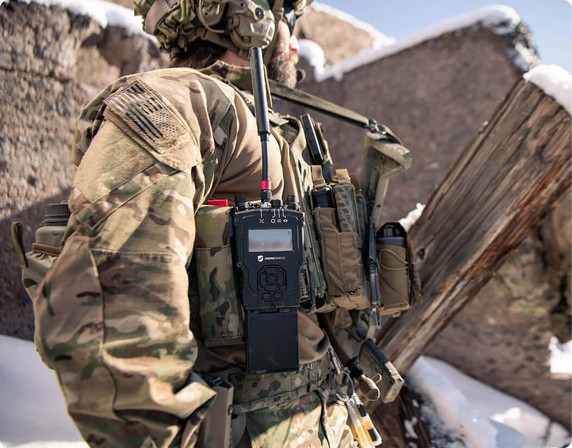

Wearable Detection
-
The RfPatrol Mk2 integrates into gear for seamless, on-the-go threat detection without impeding mobility
-
Aluminium housing for increased durability for extended use in harsh environments
Modular Directional Antennas
-
Omni-directional antenna covering ISM bands and other commonly used control frequencies
Ease of Use and Integration
-
No setup required
-
With a user-friendly interface and portable design, the RfPatrol Mk2 integrates effortlessly into existing operational workflows
AI-Powered Detection
-
RfPatrol device database stays up to date with changing threat environments via DroneShield’s proprietary AI-driven detection engine
-
RfPatrol is powered by DroneShield latest SDR scanning technology
-
Instant visual, audible, or haptic notifications of drone threats
Operating Time
-
NATO-standard military-grade battery and optimized power consumption design provides up to 8 hours of continuous operation
-
Rechargeable lithium-ion battery with quick-release and reload operation
Accessories
-
RfPatrol Detection Finding Kit
-
Magnetic Antenna Kit
| SPECIFICATIONS | |
| RfPatrol Mk2 | |
| Unit Weight | 800g / 1.76lbs |
| User Feedback | Visual, haptic, audible |
| Dimensions | 157 x 92 x 51mm / 6.2“ x 3.6“ x 2“ (excluding antennas & attachable battery) |
| Environment | |
| Operating Temperature | -32º to +60º C / -25.6ºF to +140ºF |
| Ingress Protection | Rated to IP67 |
| Battery & Power | |
| Features | Rechargeable lithium-ion battery, quick release and reload |
| Compliance | NATO-standard military grade battery |
| Battery Nominal Voltage | 10.8VDC |
| Battery Weight | 380g / 0.83lbs |
| Battery Dimensions | >71mm x 41mm x 86mm / 2.8“ x 1.6“ x 3.4“ |
| Operating Time | Up to 8 hours (continuous operation) Pass through charger available for extended use |
| Shipping | |
| Packaging | Ships in a rugged carry case (IP67) |
| Carry Case Dimensions | 590mm x 220mm x 380mm / 23.2“ x 8.7” x 15“ |
| Total Shipped Weight | 12.0kg / 26.46lbs (including carry case) |
| Warranty | |
| Warranty | 12 months from date of shipment Longer warranty available on request |
