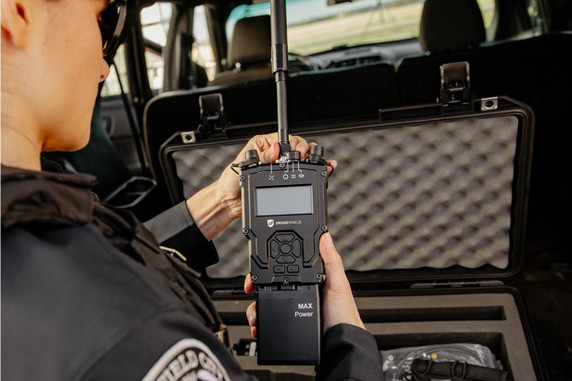

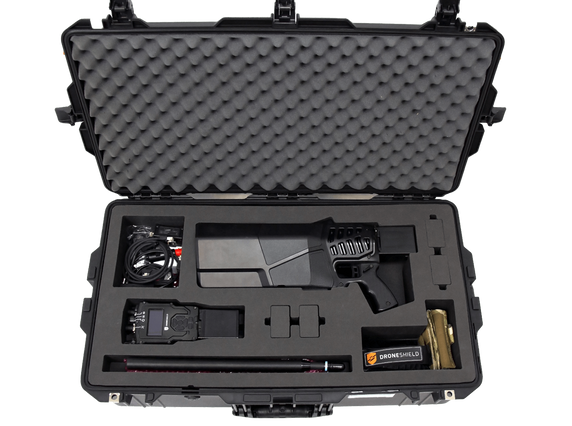

DroneShield Immediate Response Kit DroneGun Mk4
Product Code:
116
Condition:
New
Weight:
12.17 KGS
Width:
64.00
(cm)
Height:
22.00
(cm)
Depth:
41.00
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
The Immediate Response Kit (IRK) is a rapidly deployable counter-drone solution designed for mobility and ease of use. Combining DroneShield’s RfPatrol Mk2 for advanced detection and DroneGun Mk4 for defeat capabilities, it enables real-time drone defense in dynamic operational environments.
Key Features:
Comprehensive Threat Response
-
Includes both RfPatrol Mk2 for passive detection and DroneGun Mk4 for precision jamming
Intuitive Controls
-
Designed for intuitive operation with easy to use controls for rapid deployment
-
LED indicators show “on” for enabled bands and “Flash” when disrupting. LEDs can be disabled to suit mission requirements
Field-Ready Power
-
Rechargeable batteries support extended missions without reliance on fixed infrastructure
Highly Portable
-
Packaged for rapid transport and deployment in lightweight, rugged case
Operational Effectiveness
-
Supplied with omni-directional ISM band antenna, the IRK has no intentional RF transmissions for quiet and safe wearable operation. Additional antenna ports available for capability expansion
-
Custom antennas provide increased disruption performance while maintaining compact design, ensuring effective directionality and a safe environment for the operator
Ease of Use and Integration
-
User-friendly interface
-
Supports integration into existing soldier battle management systems via existing API (available through JSON and gRPC) utilizing net warrior-compliant hardware
| SPECIFICATIONS | |||
| DroneGun Mk4 | RfPatrol | ||
| Unit Weight | 3.37kg / 7.43lbs (with battery attached) | Unit Weight | 800g / 1.76lbs |
| User Feedback | Visual LEDs | User Feedback | Visual, haptic, audible |
| Effective Frequencies | Wide range of ISM bands and GNSS (satellite navigation) | Dimensions | 157 x 92 x 51mm / 6.2“ x 3.6“ x 2“ (excluding antennas & attachable battery) |
| Available Colors | Matte black | Environment | |
| Start-up Time | <3 seconds | Operating Temperature | -32º to +60º C / -25.6ºF to +140ºF |
| Operation Time | > 1 hour (aggregate operational time per charge) | Ingress Protection | Rated to IP67 |
| Charger | Pass-through charger, AC/DC PSU included | Battery & Power | |
| Environment | Features | Rechargeable lithium-ion battery, quick release and reload | |
| Operating Temperature | Tested to -32ºC to +55°C / -25.6ºF to +131ºF | Compliance | NATO-standard military grade battery |
| Ingress Protection | Rated to IP67 | Battery Nominal Voltage | 10.8VDC |
| Battery & Power | Battery Weight | 380g / 0.83lbs | |
| Rechargeable lithium-ion battery | Battery Dimensions | >71mm x 41mm x 86mm / 2.8“ x 1.6“ x 3.4“ | |
| NATO military-grade battery (common use) | Operating Time | Up to 8hrs (continuous operation) Pass through charger available for extended use |
|
| Quick-release and reload battery operation | |||
| Shipping | Shipping | ||
| Packaging | Ships in a rugged carry case (IP67) | Packaging | Ships in a rugged carry case (IP67) |
| Carry Case Dimensions | 640mm x 220mm x 410mm / 25.20” x 8.66” x 16.14” | Carry Case Dimensions | 590mm x 220mm x 380mm / 23.2“ x 8.“7 x 15“ |
| Total Shipped Weight | 12.17kg / 26.83lbs (including carry case) | Total Shipped Weight | 12.0kg / 26.46lbs (including carry case) |
| Warranty | Warranty | ||
| Warranty | 12 months from date of shipment Longer warranty available on request |
Warranty | 12 months from date of shipment Longer warranty available on request |
