DroneShield

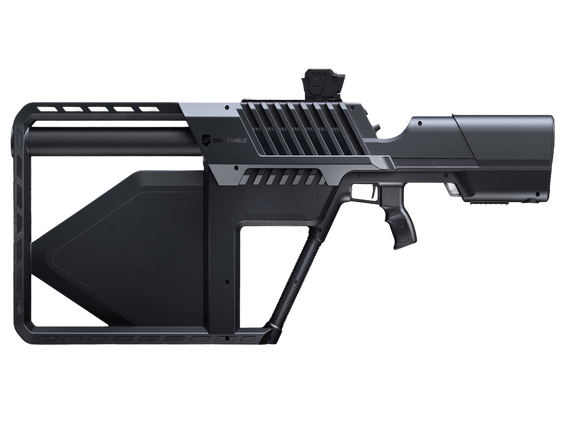

DroneShield DroneGun Tactical
Product Code:
5895-22-638-3914
Condition:
New
Weight:
7.30 KGS
Width:
120.00
(cm)
Height:
56.00
(cm)
Depth:
22.00
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
Portable Threat Long Range, Highly Effective Countermeasure, Redefined
DroneGun Tactical provides powerful, long-range counter-drone capability in a robust, easy-to-operate design. The DroneGun tactical neutralizes unauthorized drones with precision, ensuring mission success in complex environments.
Durable Design
-
Internal aluminium frame for strength and durability. Engineered with balanced design for extended operational use. Designed with MIL-STD 1913 rails for mounting scope
Intuitive Controls
-
Rotary dial switch enables selection of active disruption frequencies
-
Visual feedback provided via LED indicators “on” for enabled bands and “flash” when disrupting
Long Range Coverage
-
Long range coverage effective in a wide range of environmental conditions
-
Effectively counters a wide range of commercial and military-grade drones while keeping UAS intact and available for forensic investigation
Targeted Defeat
-
High performance directional antennas disrupt control, video, and navigation signals across multiple frequency bands
-
GNSS (satellite navigation) disruption capability
Operational Effectiveness
-
Custom Antenna Radome designed for effective operation across multiple bands.
-
Thermal management system built holistically into design
Ease of Use and Integration
-
Minimal technical training for set up or use
-
Functions independently or as part of a layered CUAS defense system
| SPECIFICATIONS | |
| DroneGun Tactical | |
| Effective Frequencies | Wide range of ISM bands, as well as GNSS (satellite navigation) |
| Unit Weight | 7.3kg / 16.0lbs (including 2 x batteries) |
| User Feedback | Visual + optional audio |
| Available Colors | Matte black, Desert sand |
| Environment | |
| Operating Temperature | -20 °C to +55°C / -4°F to +131°F |
| Ingress Protection | Designed to IP54 |
| Battery & Power | |
| Features | Rechargeable Lithium-Ion Battery Quick release and reload better operation |
| Compliance | NATO-military approved or commercial options available |
| Operating Time | 2+ hours (aggregate operational time per charge) |
| Shipping | |
| Packaging | Ships in a rugged carry case (IP67) |
| Carry Case Dimensions | 1200mm x 560mm x 220mm / 47” x 22” x 8.6” |
| Total Shipped Weight | 20.0kg / 44.2lbs (including carry case) |
| Warranty | |
| Warranty | 12 months from date of shipment Longer warranty available on request |
5 customers are viewing this product
Details
Portable Threat Long Range, Highly Effective Countermeasure, Redefined
DroneGun Tactical provides powerful, long-range counter-drone capability in a robust, easy-to-operate design. The DroneGun tactical neutralizes unauthorized drones with precision, ensuring mission success in complex environments.
Durable Design
-
Internal aluminium frame for strength and durability. Engineered with balanced design for extended operational use. Designed with MIL-STD 1913 rails for mounting scope
Intuitive Controls
-
Rotary dial switch enables selection of active disruption frequencies
-
Visual feedback provided via LED indicators “on” for enabled bands and “flash” when disrupting
Long Range Coverage
-
Long range coverage effective in a wide range of environmental conditions
-
Effectively counters a wide range of commercial and military-grade drones while keeping UAS intact and available for forensic investigation
Targeted Defeat
-
High performance directional antennas disrupt control, video, and navigation signals across multiple frequency bands
-
GNSS (satellite navigation) disruption capability
Operational Effectiveness
-
Custom Antenna Radome designed for effective operation across multiple bands.
-
Thermal management system built holistically into design
Ease of Use and Integration
-
Minimal technical training for set up or use
-
Functions independently or as part of a layered CUAS defense system
| SPECIFICATIONS | |
| DroneGun Tactical | |
| Effective Frequencies | Wide range of ISM bands, as well as GNSS (satellite navigation) |
| Unit Weight | 7.3kg / 16.0lbs (including 2 x batteries) |
| User Feedback | Visual + optional audio |
| Available Colors | Matte black, Desert sand |
| Environment | |
| Operating Temperature | -20 °C to +55°C / -4°F to +131°F |
| Ingress Protection | Designed to IP54 |
| Battery & Power | |
| Features | Rechargeable Lithium-Ion Battery Quick release and reload better operation |
| Compliance | NATO-military approved or commercial options available |
| Operating Time | 2+ hours (aggregate operational time per charge) |
| Shipping | |
| Packaging | Ships in a rugged carry case (IP67) |
| Carry Case Dimensions | 1200mm x 560mm x 220mm / 47” x 22” x 8.6” |
| Total Shipped Weight | 20.0kg / 44.2lbs (including carry case) |
| Warranty | |
| Warranty | 12 months from date of shipment Longer warranty available on request |
