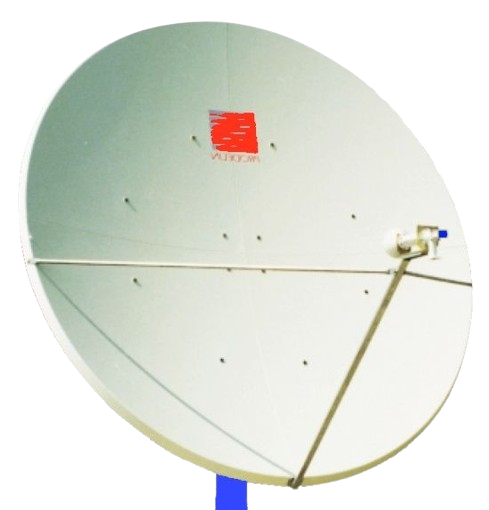

CPI SAT 1.8 Meter Ku-Band Linear Receive Transmit, 1182 Series
Product Code:
1182-2110
Condition:
New
Availability:
YES
Weight:
111.00 KGS
Width:
180.00
(cm)
Height:
180.00
(cm)
Depth:
46.00
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.315.9545
The CPI SAT 1182 series Ku-Band VSAT 1.8 meter antennas deliver incredible RF performance at a highly cost effective price. The 1182 antenna features fine azimuth and elevation adjustment for precision manual pointing.
- 1.8 Meter Transmit Receive Antenna
- Ku band 2 Port Tx Rx Cross Pol Feed Assembly
- Tier 2 Feed Support
- Fine Azimuth Adjustment
- Precision Compression Molded Reflector
| Electrical | Ku-Band Linear Polarity |
| Antenna Size | 1.8M (71 in.) |
| Operating Frequency | |
| Rx | 10.70-12.75 GHz |
| Tx | 13.75-14.50 GHz |
| Midband Gain ( +/- .3dB) | |
| Rx | 45.0 dBi |
| Tx | 46.5 dBi |
| 3 dB Beam Width | |
| Rx | 1.0° |
| Tx | 0.8° |
| Sidelobe Envelope, Co-Pol, dBi | |
| 100λ / D < Θ ≤ 20° | 29 – 25 Log Θ dBi |
| 20° < Θ ≤ 26.3° | -3.5 dBi |
| 26.3° < Θ ≤ 48° | 32 – 25 Log Θ dBi |
| 48° < Θ < 180° | -10 dBi (Typical) |
| Antenna Noise Temp | |
| 10° Elevation | 44 K |
| 20° Elevation | 38 K |
| 30° Elevation | 35 K |
| Cross Pol Isolation Rx Tx | > 30 dB (On Axis) |
| VSWR | 1.4:1 max |
| Feed Interface | |
| Rx | WR75 Flat |
| Tx | WR75 Flat |
| Mechanical | |
| Reflector Material | One Piece Glass Fiber Reinforced Polyester SMC |
| Antenna Optics | Prime Focus, Offset, 0.6 F/D |
| Mount Type | Elevation over Azimuth |
| Mast Pipe Size | 3-1/2” SCH 40 Pipe (4.00” OD) 10.16 cm. |
| Elevation Adjustment Range | 10° to 80° Continuous Fine Adjustment |
| Azimuth Adjustment Range | 360° Continuous, +/- 10° Fine Adjustment |
| Environmental Performance | |
| Wind Loading | |
| Operational | 45 mph (72 km/h) |
| Survival | 125 mph (201 km/h) |
| Temperature | |
| Operational | -40° to 140° F (-40° to 60° C) |
| Survival | -50° to 160° F (-46° to 71° C) |
| Rain Operational | 1/2 inch/h |
| Ice Survival | 1/2” radial |
| Atmospheric Conditions | Salt, Pollutants and Contaminants as Encountered in Coastal and Industrial Areas |
| Solar Radiation | 360 BTU/h/ft2 |
