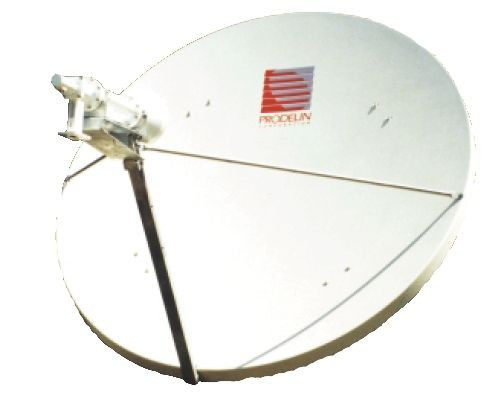

CPI SAT 1.8 Meter, 1183-1010 - 1183 Series
Product Code:
1183-1010
Condition:
New
Availability:
YES
Weight:
72.00 KGS
$1,803.87
Technical Specifications
|
Electrical |
C-Band |
Ku-Band |
|
Antenna Size |
1.8M (71 in.) |
1.8M (71 in.) |
|
Operating Frequency (GHz) |
3.625 - 4.2 GHz |
10.95 - 12.75 GHz |
|
Midband Gain ( +/- .5dB) |
35.5 dBi |
45.5 dBi |
|
3 dB Beamwidth |
2.9° |
0.9° |
|
Antenna Noise Temperature 20° Elevation 30° Elevation |
49 K47 K |
38 K35 K |
|
Polarization |
Linear or Circular |
Single or Dual Linear |
|
First Sidelobe (typical) |
- 20 dB |
- 20 dB |
|
Cross-Pol Isolation (Linear) |
>30 dB (on axis) |
>30 dB (on axis) |
|
VSWR |
1.3:1 Max. |
1.3:1 Max. |
|
Feed Interface |
CPR 229 F |
Rectangular WR 75 or WC 75 |
|
Mechanical |
||
|
Reflector Material |
Glass Fiber Reinforced Polyester SMC |
|
|
Antenna Optics |
Prime Focus, One-Piece Offset Feed |
|
|
Mast Pipe Size |
3.5” SCH 40 Pipe (4.00” OD) 10.16 cm. |
|
|
Elevation Adjustment Range |
5° to 90°, Continuous Fine Adjustment |
|
|
Azimuth Adjustment Range |
360° Continuous |
|
|
Shipping Specifications |
160 lbs. (72 kg.) |
|
|
Environmental Performance |
||
|
Wind Loading Operational Survival |
45 mph (72 km/h) 125 mph (201 km/h) |
|
|
Temperature Operational Survival |
-40° to 140° F (-40° to 60° C)- 50° to 160° F (-46° to 71° C) |
|
|
Atmospheric Conditions |
Salt, Pollutants and Contaminants as Encountered in Coastal and Industrial Areas |
|
|
Solar Radiation |
360 BTU/h/ft2 |
|
Feed System is not included in the 1183-0000 part number
Model Numbers of antennas with Feed Systems:
1183-1320: 1.8m w/ C band Linear SP/DP Feed
1183-2330: 1.8m w/ C band Circular SP Feed
1183-2340: 1.8m w/ C band Circular DP Feed
1183-1010: 1.8m w/ Ku band Linear SP Feed
1183-1030: 1.8m w/ Ku band Linear DP Feed
5 customers are viewing this product
Details
Technical Specifications
|
Electrical |
C-Band |
Ku-Band |
|
Antenna Size |
1.8M (71 in.) |
1.8M (71 in.) |
|
Operating Frequency (GHz) |
3.625 - 4.2 GHz |
10.95 - 12.75 GHz |
|
Midband Gain ( +/- .5dB) |
35.5 dBi |
45.5 dBi |
|
3 dB Beamwidth |
2.9° |
0.9° |
|
Antenna Noise Temperature 20° Elevation 30° Elevation |
49 K47 K |
38 K35 K |
|
Polarization |
Linear or Circular |
Single or Dual Linear |
|
First Sidelobe (typical) |
- 20 dB |
- 20 dB |
|
Cross-Pol Isolation (Linear) |
>30 dB (on axis) |
>30 dB (on axis) |
|
VSWR |
1.3:1 Max. |
1.3:1 Max. |
|
Feed Interface |
CPR 229 F |
Rectangular WR 75 or WC 75 |
|
Mechanical |
||
|
Reflector Material |
Glass Fiber Reinforced Polyester SMC |
|
|
Antenna Optics |
Prime Focus, One-Piece Offset Feed |
|
|
Mast Pipe Size |
3.5” SCH 40 Pipe (4.00” OD) 10.16 cm. |
|
|
Elevation Adjustment Range |
5° to 90°, Continuous Fine Adjustment |
|
|
Azimuth Adjustment Range |
360° Continuous |
|
|
Shipping Specifications |
160 lbs. (72 kg.) |
|
|
Environmental Performance |
||
|
Wind Loading Operational Survival |
45 mph (72 km/h) 125 mph (201 km/h) |
|
|
Temperature Operational Survival |
-40° to 140° F (-40° to 60° C)- 50° to 160° F (-46° to 71° C) |
|
|
Atmospheric Conditions |
Salt, Pollutants and Contaminants as Encountered in Coastal and Industrial Areas |
|
|
Solar Radiation |
360 BTU/h/ft2 |
|
Feed System is not included in the 1183-0000 part number
Model Numbers of antennas with Feed Systems:
1183-1320: 1.8m w/ C band Linear SP/DP Feed
1183-2330: 1.8m w/ C band Circular SP Feed
1183-2340: 1.8m w/ C band Circular DP Feed
1183-1010: 1.8m w/ Ku band Linear SP Feed
1183-1030: 1.8m w/ Ku band Linear DP Feed
