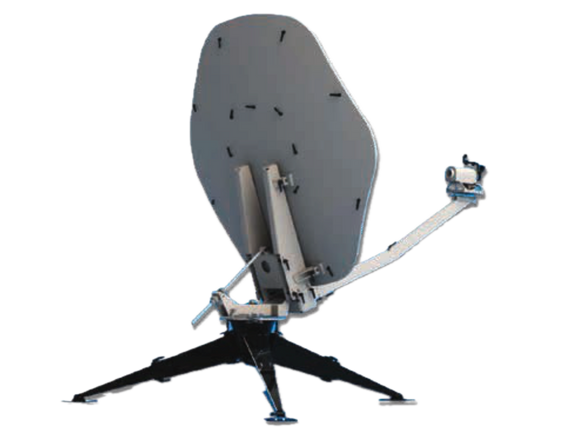

CPI C240FM 2.4 Meter Manual Flyaway Antenna

The CPI Satcom & Antenna Technologies Inc. (CPI SAT) lightweight 2.4 meter manual flyaway antenna is designed for worldwide transmit and receive operation in C, X, Ku and Ka-band. This flyaway antenna consists of a carbon fiber composite reflector, an ACME threaded locking rod elevation-over-azimuth positioner and an aluminum support structure. This results in a low-weight, manual antenna with superior stiffness and high performance under wind loading conditions. The unique shape and the accurate reflector surface provide exceptionally low sidelobe and cross-polarization performance meeting INTELSAT and EUTELSAT requirements. Repeatability is maintained with precision registration of the nine reflector segments and the feed support structure. The interchangeable feeds are palletized for quick, easy removal and replacement, allowing the end-user to effectively change frequency bands in the field within minutes. The complete antenna system, including a single feed and a manual positioner, is packaged in robust, portable cases.

Features

• Carbon fiber reflector: lightweight, precision surface and high stiffness

• Low profile EL over AZ positioner installed:

  Composite/aluminum lightweight, sturdy

• Easy deployment: two-person assembly in less than 30 minutes, captive hardware and precision alignment. No tools required for assembly
• High performance: Low sidelobes and high EIRP capability - FCC, ITU, DISA, ARSTRAT sidelobe compliant

Options

• Finishes

Standard ford polar white reflector / feed

Options: green feed std. 595 34094 or desert sand feed std. 595 33303

• Feeds

Options 4-port, Co-Pol or CP/LP switchable

Bands L, C, X, Ku, DBS and/or Ka

• Integration

SSPB and/or LNB

Specify at time of order

Benefits

• Lightweight
• Designed for worldwide transmite and receive

Applications:

• Superior stiffness and high performance under wind loading conditions
