CPI

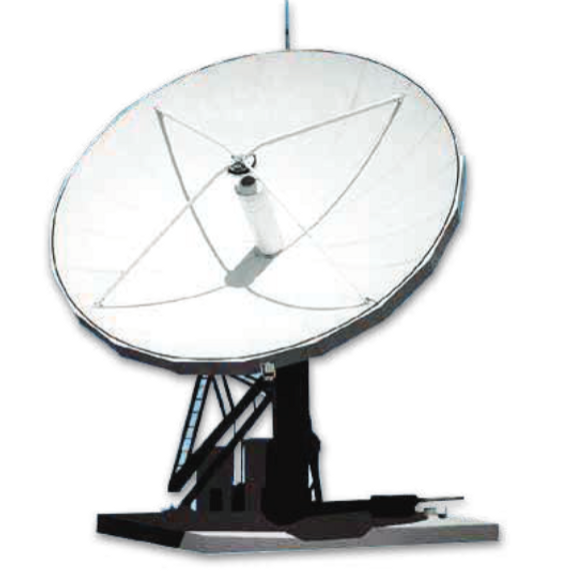

CPI 6.3 Meter Circular Polarized X-Band Cassegrain Antenna
Product Code:
CPI-630ES-X-CP
Condition:
New
Availability:
YES
Weight:
1,263.00 KGS
Width:
520.00
(cm)
Height:
520.00
(cm)
Depth:
46.00
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.315.9545
Overview
The CPI Satcom & Antenna Technologies Inc. (CPI SAT) 6.3 meter antenna delivers exceptional performance for transmit/receive and receive only applications for C through Ku-Band frequencies. This antenna offers a deep dish reflector that incorporates precision-formed panels, contoured radials and hub assembly. It features an innovative feed and subreflector design which results in high gain, low noise temperature, high antenna efficiency and excellent rejection of noise and microwave interference. The aluminum reflector is supported by a galvanized pedestal that provides the required stiffness for pointing and tracking accuracy. The pedestals are designed for full orbital arc coverage and are readily adaptable to ground or rooftop installations. The electrical performance is compliant with ITU and FCC sidelobe specifications. Type approved configurations are available for Intelsat (F1, E2), Eutelsat (L), Asiasat, Hispasat, EuropeStar or Singapore Telecom. All configurations meet CPI Satcom & Antenna Technologies Inc. (CPI SAT) own type-approved quality assurance and performance guarantee.
FEATURES:
• ‘Type-Approved’ bolt-together
• 3.4 to 18.4 GHz operation, meeting ITU and FCC
• Aluminum reflector, galvanized pedestal
• 125 mph (200 km/h) wind survival
OPTIONS:
• C, X, Ku, DBS and Ka-Band feed configurations
• C/Ku receive-only feed systems
• Specialized feed systems
(e.g., extended, multi-band)
• Improved feed cross-pol performance
• CP/LP manual or remote switchable feeds
• Antenna control system with tracking
• Reflector and feed deicing systems
• Environmental hub configurations
• Integrated transmit cross-axis kits
• Integrated LNA or LNB systems
• HPAs, converters and M&C systems
• Load frame mounts
• Packing for sea and air transport
• Turnkey installation and testing
• ‘Type-Approved’ bolt-together
• 3.4 to 18.4 GHz operation, meeting ITU and FCC
• Aluminum reflector, galvanized pedestal
• 125 mph (200 km/h) wind survival
UPGRADES:
• X-band low PIM reflector/feed configurations
• Extended azimuth travel
• High wind configuration
• Low operating temperatures
• High power configurations
• Ka-band (see separate datasheet)
BENEFITS:
• High antenna efficiency
• Excellent rejection of noise and microwave interference
APPLICATIONS:
• Communications, Data Transfer, Broadcast
| ELECTRICAL (1) Receive Transmit | C-Band 4 Port Circular Polarized | C-Band 4 Port Linear Polarized (5) Receive Transmit | X-Band 2 Port Circular Polarized Receive Transmit | Ku-Band 4 Port Linear Polarized (5) Receive Transmit | DBS-Band 4 Port Linear Polarized Receive Transmit |
| Frequency (GHz) | 3.625- 5.850 | 3.625- 5.850 | 7.250 - 7.900 | 10.700 - 13.750 | 10.700 - 17.300 |
| 4.200 6.425 | 4.200 6.425 | 7.750 8.400 | 12.750 14.500 | 12.750 18.400 | |
| Antenna Gain, Midband dBi (2) | 46.54 50.70 | 46.30 50.20 | 52.00 52.60 | 55.70 57.50 | 55.40 59.40 |
| VSWR | 1.25:1 1.25:1 | 1.25:1 1.25:1 | 1.25:1 1.25:1 | 1.30:1 1.30:1 | 1.30:1 1.30:1 |
| Pattern Beamwidth (2) | |||||
| -3 dB, at midband | 0.81º 0.50º | 0.82º 0.52º | 0.41º 0.38º | 0.26º 0.22º | 0.28º 0.17º |
| Antenna Noise Temperature (K) | |||||
| 5° Elevation | 49 K | 51 K | 63 K | 87 K | 78 K |
| 10° Elevation | 40 K | 42 K | 53 K | 74 K | 64 K |
| 20° Elevation | 34 K | 37 K | 46 K | 66 K | 55 K |
| 40° Elevation | 32 K | 34 K | 43 K | 61 K | 50 K |
| Typical G/T (dB/K) (3) | 28.4 (4.000 GHz, 30 K LNA) |
28.1 (4.000 GHz, 30 K LNA) |
32.4 (7.500 GHz, 45 K LNA) |
34.4 (11.725 GHz, 70 K LNA) |
34.4 (11.725 GHz, 70 K LNA) |
| Axial Ratio (dB) | 0.51 dB 0.51 dB | 1.50 dB 1.50 dB | |||
| Power Handling (total) | 10 kW CW | 10 kW CW | 5 kW CW | 2 kW CW | 2 kW CW |
| Cross Polarization Isolation (dB) | 30.7 dB 30.7 dB | 35.0 dB 35.0 dB | 21.3 dB 21.3 dB | 35.0 dB 35.0 dB | 35.0 dB 35.0 dB |
| On Axis Within a 1.0 dB Beamwidth | 30.7 dB 30.7 dB | 35.0 dB 30.0 dB | 21.3 dB 21.3 dB | 35.0 dB 35.0 dB | 35.0 dB 30.0 dB |
| Port-to-Port Isolation (dB) | |||||
| Rx/Tx (Rx frequency) | 0 dB -70 dB | 0 dB -50 dB | 0 dB -110 dB | 0 dB -50 dB | 0 dB -75 dB |
| Tx/Rx (Tx frequency) | -85 dB 0 dB | -85 dB 0 dB | -110 dB 0 dB | -85 dB 0 dB | -85 dB 0 dB |
| Sidelobe Performance | Meets ITU-RS-580, FCC(4) | Meets ITU-RS-580 | Meets ITU-RS-580, FCC | Meets ITU-RS-580 | |
| RF Specification | 975-2121 | 975-2354 | 975-2342 | 975-3143 | 975-2682 |
