CPI

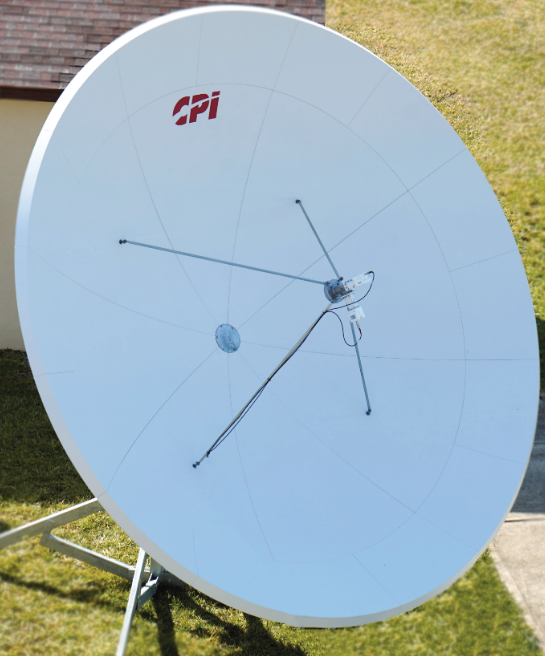

CPI 4.5 Meter Antenna C-Band RxO Antenna Series 1451 with Wideband CP RxO Feed
Condition:
New
Availability:
YES
Weight:
180.00 KGS
Width:
450.00
(cm)
Height:
450.00
(cm)
Depth:
92.00
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.315.9545
Overview
The CPI Antenna Technologies’ 4.5m C-Band RxO Antenna Series 1451 is ideally suited for demanding commercial applications. The 8-piece compression molded reflector is precision manufactured for high-efficiency operation. The Az/El mount is designed for installation on a custom Kingpost (included) of 10” Schedule Pipe (10.75” or 273 mm OD) The Az/El mount features fine Azimuth and Elevation Adjustments. All structural components are constructed from heavy gauge galvanized steel for strength and corrosion resistance. The electrical performance is compliant with FCC and ITU-RS-580 sidelobe specifications and Intelsat (A, B, C) and Eutelsat requirements.
FEATURES
• Precision SMC reflector
• Fine azimuth & elevation adjustments

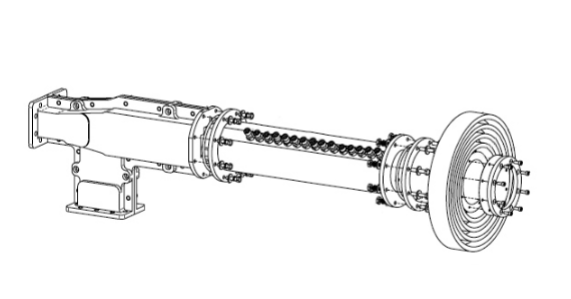

• Wideband CP RxO feed model 0800-4111
• Durable and rugged construction for ease of shipping and handling
• Heavy gauge-galvanized steel Az/El mount
OPTIONS:
• Top plate weldment (in lieu of Kingpost)
APPLICATIONS:
• Commercial RxO, wideband circular polarity
APPLICATIONS:
• Commercial RxO
5 customers are viewing this product
Details
Overview
The CPI Antenna Technologies’ 4.5m C-Band RxO Antenna Series 1451 is ideally suited for demanding commercial applications. The 8-piece compression molded reflector is precision manufactured for high-efficiency operation. The Az/El mount is designed for installation on a custom Kingpost (included) of 10” Schedule Pipe (10.75” or 273 mm OD) The Az/El mount features fine Azimuth and Elevation Adjustments. All structural components are constructed from heavy gauge galvanized steel for strength and corrosion resistance. The electrical performance is compliant with FCC and ITU-RS-580 sidelobe specifications and Intelsat (A, B, C) and Eutelsat requirements.
FEATURES
• Precision SMC reflector
• Fine azimuth & elevation adjustments
• Wideband CP RxO feed model 0800-4111
• Durable and rugged construction for ease of shipping and handling
• Heavy gauge-galvanized steel Az/El mount
OPTIONS:
• Top plate weldment (in lieu of Kingpost)
APPLICATIONS:
• Commercial RxO, wideband circular polarity
APPLICATIONS:
• Commercial RxO
