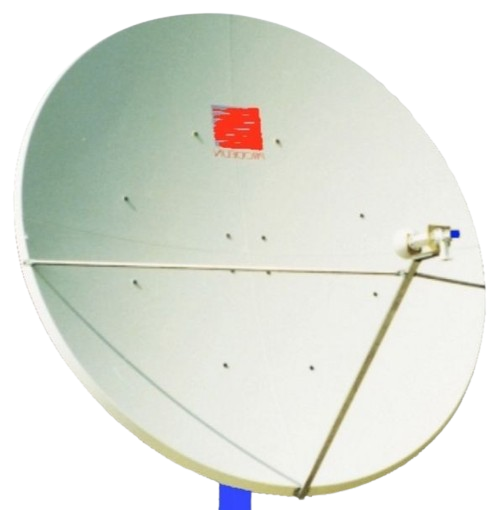

CPI 3.8 Meter C-Band-Circular Tx/Rx VSAT Antenna
Request a quote at Contact@orbitalconnect.com or +1.888.315.9545
Technical Specifications
|
Electrical |
C-Band Linear |
C-Band Circular |
Ku-Band Linear |
X-Band Circular |
|
Antenna Size |
3.8 M |
3.8 M |
3.8 M |
3.8 M |
|
Operating Frequency (GHz) Receive Transmit |
3.625 - 4.20 GHz 5.845 - 6.425 GHz |
3.625 - 4.20 GHz 5.845 - 6.425 GHz |
10.95 - 12.75 GHz 13.75 - 14.50 GHz |
7.25 - 7.75 GHz 7.9 - 8.4 GHz |
|
Midband Gain ( +/- .5dB) Receive Transmit |
42.00 dBi 46.20 dBi |
41.80 dBi 46.30 dBi |
51.20 dBi 53.00 dBi |
47.80 dBi 48.40 dBi |
|
VSWR Receive Transmit |
1.3:1 Max.(<-17.70 dB) 1.3:1 Max.(<-17.70 dB) |
1.3:1 Max.(<-17.70 dB) 1.3:1 Max.(<-17.70 dB) |
1.5:1 Max.(<-14.00 dB) 1.3:1 Max.(<-17.70 dB) |
1.3:1 Max.(<-17.70 dB) 1.3:1 Max.(<-17.70 dB) |
|
Pattern Beamwidth -3 dB (in degrees at midband) -15 dB |
Rx 1.40 deg Tx 0.90 deg Rx 3.20 deg Tx 2.00 deg |
Rx 1.40 deg Tx 0.90 deg Rx 3.20 deg Tx 2.00 deg. |
Rx 0.50 deg Tx 0.40 deg Rx 1.00 deg Tx 0.90 deg |
Rx 0.80 deg Tx 0.70 deg Rx 1.60 deg Tx 1.50 deg |
|
Sidelobe Envelope, Co-Pol (dBi) 100 λ/D ≤ θ ≤ 20° 20° < θ ≤ 26.3° 26.3° < θ ≤ 48° θ < 48° |
29 - 25 Logq dBi -3.5 dBi 32 - 25 Logq dBi -10 dBi (averaged) |
29 - 25 Logq dBi -3.5 dBi 32 - 25 Logq dBi -10 dBi (averaged) |
29 - 25 Logq dBi -3.5 dBi 32 - 25 Logq dBi -10 dBi (averaged) |
29 - 25 Logq dBi -3.5 dBi 32 - 25 Logq dBi -10 dBi (averaged) |
|
Note: In receive portion of C-band only, sidelobe envelope specified from 100l/D rather than 1° |
||||
|
Antenna Noise Temperature 5° Elevation 10° Elevation 20° Elevation 40° Elevation |
55 K 45 K 38 K 36 K |
62 K 52 K 45 K 43 K |
70 K 60 K 55 K 45 K |
60 K 51 K 47 K 47 K |
|
Power Handling |
1 kW |
1 kW |
100 kW |
2 kW |
|
Cross Polarization Isolation On Axis Within 1.0 dB Beamwidth |
> 30 dB > 27 dB |
Rx > 15.00 dB – Tx > 17.70 dB Rx > 15.00 dB – Tx > 17.70 dB |
Rx > 30.00 dB – Tx > 35.00 dB Rx > 25.00 dB – Tx > 26.00 dB |
Rx > 23.20 dB – Tx > 18.80 dB Rx > 23.20 dB – Tx > 18.80 dB |
|
Note: Standard C-band Circular polarization in Tx-Band provides an axial ratio of 1.3 (XPD equivalence of 17.7 dB). Optional F-1 station feedavailable with axial ratio of 1.09 (XPD equivalence > 27.3 dB) in Tx band. Call factory when specifying this option. X Band filters available upon request. |
||||
|
Output Waveguide Interface Flange Receive Transmit |
CPR 229 F CPR 137 or Type N |
CPR 229 F CPR 137 or Type N |
WR 75 WR 75 |
WR 112 WR 112 |
5 customers are viewing this product
Details
Technical Specifications
|
Electrical |
C-Band Linear |
C-Band Circular |
Ku-Band Linear |
X-Band Circular |
|
Antenna Size |
3.8 M |
3.8 M |
3.8 M |
3.8 M |
|
Operating Frequency (GHz) Receive Transmit |
3.625 - 4.20 GHz 5.845 - 6.425 GHz |
3.625 - 4.20 GHz 5.845 - 6.425 GHz |
10.95 - 12.75 GHz 13.75 - 14.50 GHz |
7.25 - 7.75 GHz 7.9 - 8.4 GHz |
|
Midband Gain ( +/- .5dB) Receive Transmit |
42.00 dBi 46.20 dBi |
41.80 dBi 46.30 dBi |
51.20 dBi 53.00 dBi |
47.80 dBi 48.40 dBi |
|
VSWR Receive Transmit |
1.3:1 Max.(<-17.70 dB) 1.3:1 Max.(<-17.70 dB) |
1.3:1 Max.(<-17.70 dB) 1.3:1 Max.(<-17.70 dB) |
1.5:1 Max.(<-14.00 dB) 1.3:1 Max.(<-17.70 dB) |
1.3:1 Max.(<-17.70 dB) 1.3:1 Max.(<-17.70 dB) |
|
Pattern Beamwidth -3 dB (in degrees at midband) -15 dB |
Rx 1.40 deg Tx 0.90 deg Rx 3.20 deg Tx 2.00 deg |
Rx 1.40 deg Tx 0.90 deg Rx 3.20 deg Tx 2.00 deg. |
Rx 0.50 deg Tx 0.40 deg Rx 1.00 deg Tx 0.90 deg |
Rx 0.80 deg Tx 0.70 deg Rx 1.60 deg Tx 1.50 deg |
|
Sidelobe Envelope, Co-Pol (dBi) 100 λ/D ≤ θ ≤ 20° 20° < θ ≤ 26.3° 26.3° < θ ≤ 48° θ < 48° |
29 - 25 Logq dBi -3.5 dBi 32 - 25 Logq dBi -10 dBi (averaged) |
29 - 25 Logq dBi -3.5 dBi 32 - 25 Logq dBi -10 dBi (averaged) |
29 - 25 Logq dBi -3.5 dBi 32 - 25 Logq dBi -10 dBi (averaged) |
29 - 25 Logq dBi -3.5 dBi 32 - 25 Logq dBi -10 dBi (averaged) |
|
Note: In receive portion of C-band only, sidelobe envelope specified from 100l/D rather than 1° |
||||
|
Antenna Noise Temperature 5° Elevation 10° Elevation 20° Elevation 40° Elevation |
55 K 45 K 38 K 36 K |
62 K 52 K 45 K 43 K |
70 K 60 K 55 K 45 K |
60 K 51 K 47 K 47 K |
|
Power Handling |
1 kW |
1 kW |
100 kW |
2 kW |
|
Cross Polarization Isolation On Axis Within 1.0 dB Beamwidth |
> 30 dB > 27 dB |
Rx > 15.00 dB – Tx > 17.70 dB Rx > 15.00 dB – Tx > 17.70 dB |
Rx > 30.00 dB – Tx > 35.00 dB Rx > 25.00 dB – Tx > 26.00 dB |
Rx > 23.20 dB – Tx > 18.80 dB Rx > 23.20 dB – Tx > 18.80 dB |
|
Note: Standard C-band Circular polarization in Tx-Band provides an axial ratio of 1.3 (XPD equivalence of 17.7 dB). Optional F-1 station feedavailable with axial ratio of 1.09 (XPD equivalence > 27.3 dB) in Tx band. Call factory when specifying this option. X Band filters available upon request. |
||||
|
Output Waveguide Interface Flange Receive Transmit |
CPR 229 F CPR 137 or Type N |
CPR 229 F CPR 137 or Type N |
WR 75 WR 75 |
WR 112 WR 112 |
