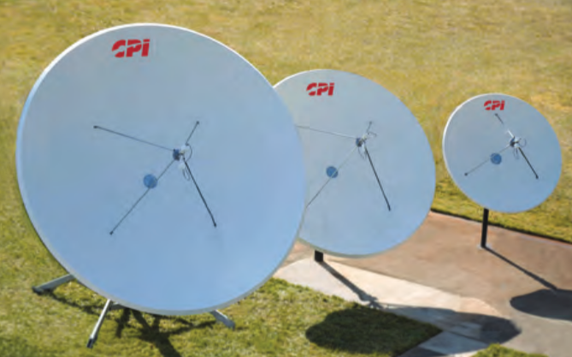

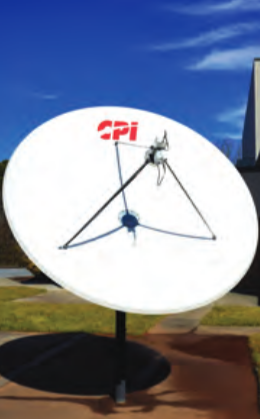

CPI 2.4m C-Band Circular 5G RxO terminal, Series 1252
Product Code:
1252-5330|1252-5340
Condition:
New
Availability:
YES
Weight:
100.00 KGS
Request a quote at Contact@orbitalconnect.com or +1.888.315.9545
Overview
CPI SAT is offering a range of specially configured RxO terminals to accommodate the changes to C-Band satellite spectrum under the 5G initiative. The 2.4m, 3.7m and 4.5m terminals include 5G band-pass filters and PLL LNBs to satisfy these new requirements. The FCC has allocated the lower 300 MHz of C-Band 3.7-4.2 GHz frequency spectrum to facilitate 5G technology. This essentially leaves the upper 200 MHz of frequency spectrum for the use of C-Band satellite technology. CPI's C-Band terminal solutions are integrated with a special band-pass filter and high performance LNB to accommodate the 5G applications. CPI SAT also offers these antennas in a base configuration for customers who wish to provide their own filters and LNBs.
FEATURES
- 3 sizes; 2.4m, 3.7m and 4.5m
- C-Band RxO Satellite Feed System
- Support for Linear, Single or Dual Polarity
- Band Pass Filter for FG Weighing <650 g (<1.43 lbs)
- Band Pass Filter Rejects Energy <4.0 GHz at 60dB
- PLL LNB +/- 5.15 KHz LO Stability & Low Phase Noise
- 1252-5330: 2.4m w/ C band Circular SP Feed
- 1252-5340: 2.4m w/ C band Circular DP Feed
BENEFITS:
- CPI's industry knowledge and innovation
- One-Stop-Shop procurement from CPI
- Fully engineered and integrated package
- Guaranteed Performance
- CPI's full support 24/7/365
- 5-year Comprehensive Warranty
APPLICATIONS:
- Satellite Broadcasters
- CATV Headends
| Electrical | C-Band |
| Antenna Size | 2.4M (96 in.) |
| Operating Frequency (GHz) | 3.625 - 4.2 GHz |
| Midband Gain ( +/- .2dB) | 37.50 dBi |
| Antenna Noise Temp (Clear Sky) | |
| 20° Elevation | 37 K |
| 30° Elevation | 36 K |
| Cross Polarization (Linear) | >30 dB (on axis) |
| First Sidelobe (typical) | - 20 dB |
| VSWR | 1.3:1 max |
| Insertion Loss | 0.2 dB Max. |
| Mechanical | |
| Reflector Material | Three Segment Glass Fiber Reinforced Polyester SMC |
| Antenna Optics | Prime Focus, Axisymmetric |
| Mast Pipe Size | 5” SCH 40 Pipe (5.56” OD) 14.13 mm. |
| Elevation Adjustment Range | 0° to 90° Continuous Fine Adjustment |
| Azimuth Adjustment Range | 360°Continuous Coarse |
| f/D Ratio/Feed Support | 0.37/Tripod Feed Support |
| Declination Corrected Polar Range | 90° Arc Coverage with 24” Actuator, Available |
| Shipping Specifications (Weight) | Az/El: 205 lbs. (93 kg.) |
| Environmental Performance | |
| Wind Loading | |
| Operational | 50 mph (80 km/h) |
| Survival | 125 mph (201 km/h) |
| Temperature | |
| Operational | -40° to 140° F (-40° to 60° C) |
| Survival | -50° to 160° F (-46° to 71° C) |
| Rain Operational Survival | 1/2” /hr 2” /hr |
| Ice - Operational Survival | 1/2” radial |
| Atmospheric Conditions | Salt, Pollutants and Contaminants as Encountered in Coastal and Industrial Areas |
| Solar Radiation | 360 BTU/h/ft2 |
