CPI

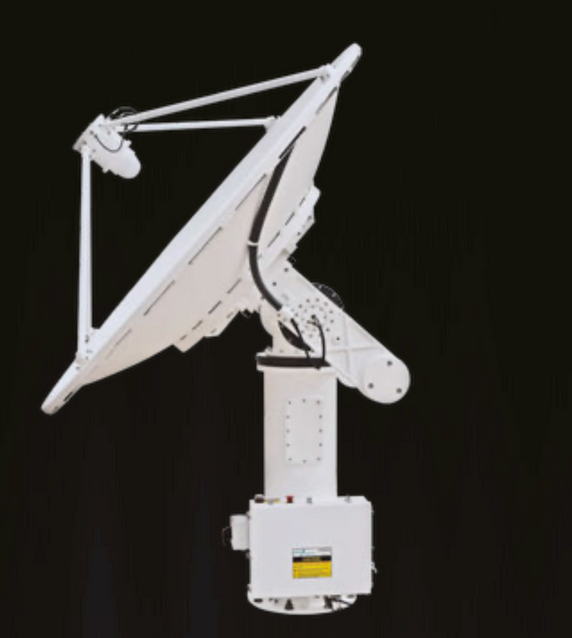

CPI 2.4AEBP-2.4m Elevation-Over-Azimuth Antenna Positioner
Product Code:
CPI-2.4AEBP
Condition:
New
Weight:
565.00 KGS
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
The Orbital Systems 2.4AEBP antenna positioner is designed and built to provide high reliability while withstanding severe environmental conditions. A high-quality, high-precision elevation-over-azimuth satellite tracking system suitable for operation at X- Band and below. The 2.4AEBP utilizes the proven orbital data bus (ODB) technology to provide integrated control of the antenna positioner and RF payload. Superior engineering, precision manufacturing and strict quality control standards result in maintenance free operation and making the 2.4AEBP the optimal choice for service in remote locations and hostile climates.
Features
The 2.4AEBP antenna positioner is available with multiple reflector options. Standard equipment includes feed mounting poles, ACU-2 antenna control unit, and a complete tool kit with every system. Gold-on-gold contact slip rings facilitate unlimited azimuth rotation and the positioner operates on one or two RF channels. The antenna positioner is available with standard options to provide AC or DC power and 100BASE-T Ethernet on the elevation arm. Reception loss caused by what is sometimes called a “keyhole effect” is eliminated by the high speed of azimuth rotation in Orbital Systems’ two axis products. When tracking a near overhead pass the antenna uses a predictive motion with a peak azimuth velocity of 60 degrees/sec, and acceleration at up to 60 degrees/sec². These very high speeds serve to reduce loss of signals on a worst case near overhead pass.
System Control and Tracking
- ACU-2 antenna control unit is standard and enables flexible control options
- Tracks satellites at X Band and below without keyhole effect
- Customized controller interface options are available
Motors and Gears
- Mechanical system components are fully integrated with IP65-rated brushless servomotors and integrated brakes, matched and tuned motor drives, and heavy duty gears
- Gears are automatically heated to maintain optimal performance at temperatures as low as -40°C
- Gears are completely enclosed in a cast housing operating inside a controlled optimal environment to increase their service life requiring no annual lubrication.
Pressurization
- Antenna positioner and feed are pressurized with dehydrated air or nitrogen to prevent corrosion of system components
- Dry air is supplied using conventional transmission line dehydrator technology
- Temperature and humidity sensors in the electrical cabinet and feed are monitored by the antenna control unit which automatically purges the system of moisture
- System remains operational if pressurization fails
Reflectors and Feeds
- Supplied with a 2.4m spun aluminum reflector, see 2.4AEBP-3m data sheet for 3.0m version
- Equipped with feed poles for use with Orbital Systems feeds
- Many feeds are available with optional downconverters and polarity switching
- Feeds are equipped with purge valves to expel moisture from the system
- Feed communication is integrated into the antenna control unit over ODB
- Typical 2.4m X- and L- Band system performance is 24.5 dB/K and 8 dB/K, respectively
Special Order Options
- Mains A/C or D/C power supplied internally through antenna positioner for elevation arm- mounted electronics
- Gigabyte Ethernet through antenna positioner
- Additional RF channels through antenna positioner
- Additional data pairs through antenna positioner
- Optical multi mode fiber through antenna positioner
| Operational Specifications | Required | Continuous Capable |
| Azimuth Maximum Velocity | 57°/ Sec | >60°/ Sec |
| Azimuth Maximum Acceleration | >39°/Sec² | >60°/Sec² |
| Azimuth Peak Torque | >1586 Nm (1170 ft/lbs) | |
| Azimuth Maximum Travel | Continuous Rotation | |
| Elevation Maximum Velocity | 9°/ Sec | >20°/ Sec |
| Elevation Maximum Acceleration | 0.9°/ Sec² | >60°/Sec² |
| Elevation Maximum Torque | >950 Nm (700 ft/lbs) | |
| Elevation Maximum Travel | 184° | |
| Brake Holding Torque | 1947 Nm (>1436 ft/lbs) | |
| Mechanical Total Tracking Accuracy | 0.10° | |
| Absolute Position Feedback Accuracy. | ±0.02° | |
| Electrical, Mechanical, and Environmental Specifications | ||
| Input Voltage, Frequency | 208 -240 VAC, 20 A, 50/60 Hz, Single Phase | |
| Input Amperage | Typical 5 A; Maximum 15 A; Uses Standard 20 A Breaker | |
| Operating Altitude | 3000m Above Sea Level | |
| Operating Temperature | -40° C to +55° C | |
| Continuous Wind Speed for Operational Tracking | 88 k/hr (55 mph) | |
| Maximum Wind Speed In Stow Position | 200 k/hr (125 mph) | |
| Non-Operating Maximum Rain Load | 25 cm (10 inches) /hr | |
| Maximum Ice Load | 13mm (0.5 inches) | |
| Positioner Weight | 565 kg (1245 lbs) | |
| Safety, Emissions, and Machinery Directive Ratings | CE Marked; Tested by Independent Labs | |
