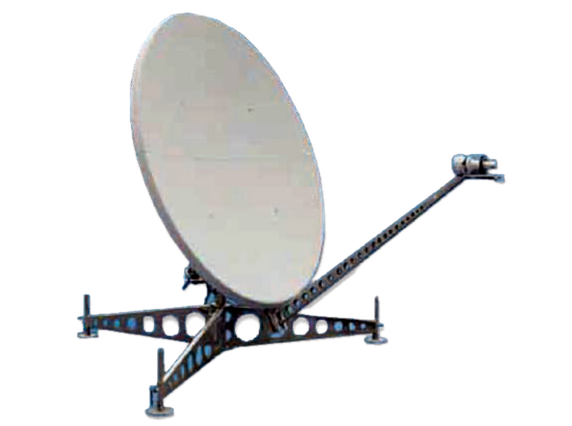

CPI 2.4 Meter Rugged Deploy Antenna

The CPI Satcom & Antenna Technologies Inc. (CPI SAT) lightweight 2.4-meter (96-inch) Rugged Deploy antennas are designed for worldwide transmit and receive operation in C, X, Ku and Ka-band. These portable antennas consist of Precision Compression Molded reflectors and galvanized steel tripod base mounts. This results in a durable antenna with superior stiffness and high performance under wind loading conditions. The unique shape and the accurate reflector surface provide good sidelobe and cross-polarization performance. The antenna system includes options consisting of a four-segment SMC compression molded reflector assembly. Repeatability is maintained with precision registration of the reflector segment(s) and the feed support structure. A reusable, transportable wooden crate that accommodates soft cases or hard cases for the reflector is available for storage and transportation of the reflector case and tripod base.

Features

• Precision compression molded offset reflector
• Compact galvanized steel pedestal
• Transport cases included
• Two-person assembly in less than 5 minutes
• Captive hardware/fasteners
• No tools required
• Quick adjust positioner

Options

• Paint/finishes
• Case upgrades
• Multiple feeds -- C, X, Ku and Ka-band

Benefits

• Superior stiffness
• High performance under wind loading condition

Applications

• Designed for worldwide transmit and receive operation in C, X, Ku and Ka-band
