CPI 16.4 Meter Cassegrain Antenna
Product Code:
ESCPI1640-LM
Condition:
New
Weight:
8,000.00 KGS
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394

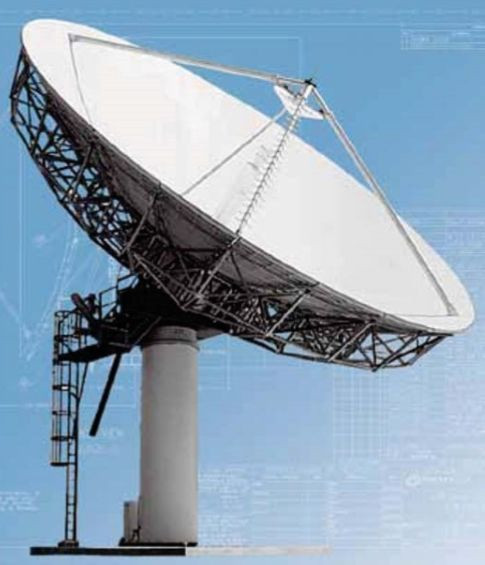

The CPI Antenna Technologies’ 16.4 meter antenna delivers exceptional performance for transmit/receive and receive only applications in L through Ku-Band frequencies. This antenna offers a reflector design that incorporates precision-formed panels, truss radials and hub assembly. It features an innovative cassegrain feed and subreflector design which results in high gain, low noise temperature, high antenna efficiency and excellent rejection of noise and microwave interference.
A large center hub provides spacious accommodation for equipment mounting. The reflector is supported by a galvanized elevation over azimuth Kingpost pedestal that provides the required stiffness for pointing and tracking accuracy. The pedestals are designed for full orbital arc coverage and are readily adaptable to ground or rooftop installations.
The electrical performance is compliant with FCC 25.209 regulations, ITU-RS-580 sidelobe specifications and Intelsat (F3) and Eutelsat requirements.
Features
- Fully interchangeable reflector components with aluminum reflector panels and galvanized steel backup structure
- Designed for 1.5 to 15 GHz operation, meeting FCC and ITU-RS-580 requirements
- Galvanized steel elevation-over-azimuth pedestal with jackscrews
- Survives 125 mph winds in any position
Options
- L, S, C, X, and Ku-Band feed configurations
- C/Ku receive only feed systems
- CP/LP manual or remote switchable feeds
- Specialized feed systems (e.g., extended, multi-band)
- Antenna control system with tracking
- Reflector and feed deicing systems
- Environmental hub configurations
- Integrated transmit cross axis kits
- Integrated LNA or LNB systems
- HPAs, converters and M&C systems
- Packing for sea and air transport
- Turnkey installation and testing
Upgrades
- X-Band low PIM reflector/feed configurations
- Bullgear azimuth drive
- High power configuration
- Low operating temperatures
- High power configurations
Benefits
- High antenna efficiency
- Excellent rejection of noise and microwave interference
Applications
- Communications, Data Transfer, Broadcast
