CPI 1230 Automatic Deicing System

The CPI Antenna Technologies Model 1230 Automatic Deicing System (ADS) is a versatile, efficient solution designed to prevent ice buildup on the main reflector, sub-reflector, and feed window of earth station antennas. Standard configurations are available for CPI antennas ranging from 4.8m to 16.4m, with customizable options for non-standard setups.

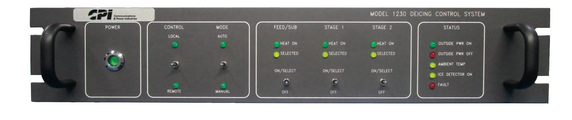

The 1230 ADS features a Power Control Unit (PCU) that offers control and status monitoring over a dry contact relay system. The rackmounted control unit connects to the PCU via associated cross-site control cabling. Reliable relay logic is used to control the PCU, supporting high maintainability. The system is CE-compliant for EU applications.

Automatic, staged control optimizes energy use, helping reduce operational costs. Energy-efficient heaters with quick activation ensures rapid operation during icing events.

For legacy designs seeking a modern upgrade path, see the CPI Model 1240 ADS, which leverages the robust Model 1230 design and adds Ethernet support.

Features:

• Electric forced air deice system for reflector, sub-reflector, and feed window
• Reliable rain and snow detection
• Operates in fully automatic or manual override capacity
• Rack-mounted Local (front panel) or Remote (rear panel) control
• Accepts dry contact closures for remote monitoring and operation

Benefits:

• Logical, straight forward controls and indicators
• Simple system operation

Applications:

• Electric deice for any medium to large aperture earth station antenna equipment
• Mitigating effects of winter weather on critical RF sub-systems
