CPI

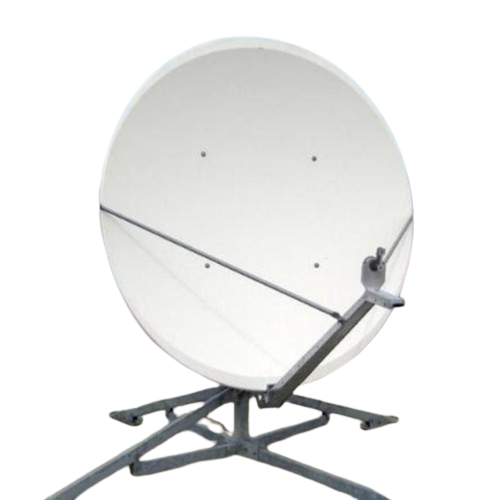

CPI 1.8 Meter C-Band-Linear Antenna Receive Transmit, Series 1182
Product Code:
1182-2410|1182-2420
Condition:
New
Availability:
YES
Weight:
36.00 KGS
Width:
180.00
(cm)
Height:
180.00
(cm)
Depth:
46.00
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.315.9545
The CPI SAT 1182 series C-Band VSAT 1.8 meter antennas deliver incredible RF performance at a highly cost effective price. The 1182 antenna features fine azimuth and elevation adjustment for precision manual pointing.
- 1.8 Meter Transmit Receive Antenna
- Fine Tune Azimuth
- C band 2 Port Linear Tx Rx Feed Assembly
- Cross Pol or Co-Pol Feed Option
- Precision Compression Molded Reflector
| Electrical | C-Band Linear Polarity | C-Band Circular Polarity | ||
| Antenna Size | 1.8M (71 in.) | |||
| Operating Frequency | Rx Tx | 3.400-4.200 GHz | 3.625-4.200 GHz | |
| 5.850-6.725 GHz | 5.850-6.425 GHz | |||
| Midband Gain ( +/- .3dB) | Rx Tx | 35.4 dBi | 35.5 dBi | |
| 39.6 dBi | 39.5 dBi | |||
| 3 dB Beam Width | Rx Tx | 3.0° | 3.0° | |
| 1.9° | 1.9° | |||
| Sidelobe Envelope, Co-Pol, dBi | ||||
| 100λ / D < Θ ≤ 20° | 29 – 25 Log Θ dBi | |||
| 20° < Θ ≤ 26.3° | -3.5 dBi | |||
| 26.3° < Θ ≤ 48° | 32 – 25 Log Θ dBi | |||
| 48° < Θ < 180° | -10 dBi (Typical) | |||
| Antenna Noise Temp 10° Elevation | 56 K | 58 K | ||
| 20° Elevation | 49 K | 53 K | ||
| 30° Elevation | 45 K | 46 K | ||
| Cross Pol Isolation | Rx | > 30 dB (On Axis) | 15.3 dB Min (AR = 3.0 dB) | |
| Tx | 17.5 dB Min (AR = 2.3 dB) | |||
| VSWR | 1.4:1 max | 1.3:1 max | ||
| Feed Interface | Tx | CPR 229G | ||
| Rx | CPR 137G | |||
| Mechanical | ||||
| Reflector Material | One Piece Glass Fiber Reinforced Polyester SMC | |||
| Antenna Optics | Prime Focus, Offset, 0.6 F/D | |||
| Mount Type | Elevation over Azimuth | |||
| Mast Pipe Size | 3-1/2” SCH 40 Pipe (4.00” OD) 10.16 cm. | |||
| Elevation Adjustment Range | 10° to 80° Continuous Fine Adjustment | |||
| Azimuth Adjustment Range | 360° Continuous, +/- 10° Fine Adjustment | |||
| Environmental Performance | ||||
| Wind Loading | Operational | 50 mph (80 km/h) | ||
| Survival | 125 mph (201 km/h) | |||
| Temperature | Operational | -40° to 140° F (-40° to 60° C) | ||
| Survival | -50° to 160° F (-46° to 71° C) | |||
| Rain | Operational | 1/2 inch/h | ||
| Survival | 1/2” radial | |||
| Atmospheric Conditions | Salt, Pollutants and Contaminants as Encountered in Coastal and Industrial Areas | |||
| Solar Radiation | 360 BTU/h/ft2 | |||
5 customers are viewing this product
Details
The CPI SAT 1182 series C-Band VSAT 1.8 meter antennas deliver incredible RF performance at a highly cost effective price. The 1182 antenna features fine azimuth and elevation adjustment for precision manual pointing.
- 1.8 Meter Transmit Receive Antenna
- Fine Tune Azimuth
- C band 2 Port Linear Tx Rx Feed Assembly
- Cross Pol or Co-Pol Feed Option
- Precision Compression Molded Reflector
| Electrical | C-Band Linear Polarity | C-Band Circular Polarity | ||
| Antenna Size | 1.8M (71 in.) | |||
| Operating Frequency | Rx Tx | 3.400-4.200 GHz | 3.625-4.200 GHz | |
| 5.850-6.725 GHz | 5.850-6.425 GHz | |||
| Midband Gain ( +/- .3dB) | Rx Tx | 35.4 dBi | 35.5 dBi | |
| 39.6 dBi | 39.5 dBi | |||
| 3 dB Beam Width | Rx Tx | 3.0° | 3.0° | |
| 1.9° | 1.9° | |||
| Sidelobe Envelope, Co-Pol, dBi | ||||
| 100λ / D < Θ ≤ 20° | 29 – 25 Log Θ dBi | |||
| 20° < Θ ≤ 26.3° | -3.5 dBi | |||
| 26.3° < Θ ≤ 48° | 32 – 25 Log Θ dBi | |||
| 48° < Θ < 180° | -10 dBi (Typical) | |||
| Antenna Noise Temp 10° Elevation | 56 K | 58 K | ||
| 20° Elevation | 49 K | 53 K | ||
| 30° Elevation | 45 K | 46 K | ||
| Cross Pol Isolation | Rx | > 30 dB (On Axis) | 15.3 dB Min (AR = 3.0 dB) | |
| Tx | 17.5 dB Min (AR = 2.3 dB) | |||
| VSWR | 1.4:1 max | 1.3:1 max | ||
| Feed Interface | Tx | CPR 229G | ||
| Rx | CPR 137G | |||
| Mechanical | ||||
| Reflector Material | One Piece Glass Fiber Reinforced Polyester SMC | |||
| Antenna Optics | Prime Focus, Offset, 0.6 F/D | |||
| Mount Type | Elevation over Azimuth | |||
| Mast Pipe Size | 3-1/2” SCH 40 Pipe (4.00” OD) 10.16 cm. | |||
| Elevation Adjustment Range | 10° to 80° Continuous Fine Adjustment | |||
| Azimuth Adjustment Range | 360° Continuous, +/- 10° Fine Adjustment | |||
| Environmental Performance | ||||
| Wind Loading | Operational | 50 mph (80 km/h) | ||
| Survival | 125 mph (201 km/h) | |||
| Temperature | Operational | -40° to 140° F (-40° to 60° C) | ||
| Survival | -50° to 160° F (-46° to 71° C) | |||
| Rain | Operational | 1/2 inch/h | ||
| Survival | 1/2” radial | |||
| Atmospheric Conditions | Salt, Pollutants and Contaminants as Encountered in Coastal and Industrial Areas | |||
| Solar Radiation | 360 BTU/h/ft2 | |||
Download
| Download Name | |
| 1.8 Meter C-Band Antenna Receive Transmit Data Sheet | |
