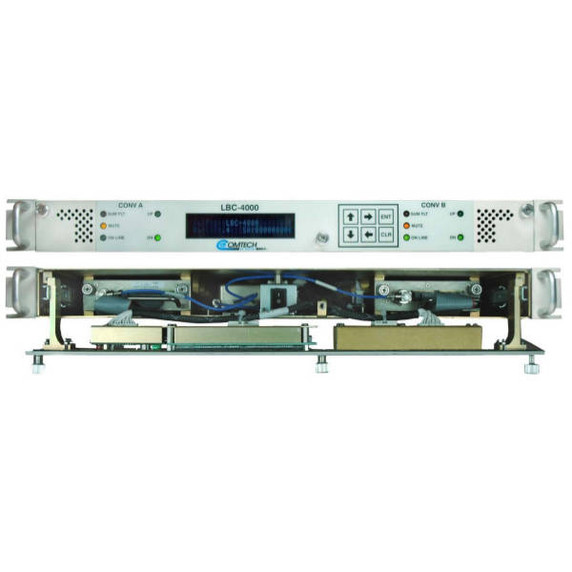

Comtech LBC-4000 Up/Down Converter System
Product Code:
LBC-4000
Condition:
New
Availability:
YES
Weight:
11.34 KGS
Width:
48.30
(cm)
Height:
4.45
(cm)
Depth:
55.90
(cm)
$13,935.00
Comtech EF Data LBC-4000A L-Band Up/Down Converter System
The Comtech EF Data LBC-4000A L-Band to IF indoor frequency converter is a 1RU 19-inch chassis with two front panel accessible converter modules. The unit can be configured as a redundant up or down converter, or two individual up or down converters, or an up and a down converter. It contains two diode “OR-ed” internal power supplies, for increased reliability and microprocessor-based Monitor & Control (M&C) functions.
The LBC-4000A up converter module translates a 70 MHz IF input signal (140 MHz optional) up to a user-selected frequency at L-Band (950 to 2000 MHz).
The LBC-4000A down converter module translates an L-Band (950 to 2000 MHz) input signal down to a user selected frequency in the 70 MHz (140 MHz optional) IF band. The LBC-4000 can be locked to an internal reference or an external 5 or 10 MHz reference signal. The LBC-4000 is an excellent choice for interfacing legacy 70 or 140 MHz equipment to quad-band or tri-band block converters.
Comtech EF Data LBC-4000A Upconverter Features
- Meets or exceeds MIL-STD-188-164A
- Low phase noise
- 1 kHz option
- 40 dB user attenuation adjustment
- 70 ±18 MHz IF (140 ± 36 MHz optional) Input Frequency
- 950 - 2000 MHz output frequency
- Auto band sensing capability
- Redundant option available
Comtech EF Data LBC-4000A Downconverter Features
- Meets or exceeds MIL-STD-188-164A
- Low phase noise
- User-selectable spectral inversion
- 50 dB user attenuation adjustment
- 950 - 2000 MHz input frequency
- 70 ±18 MHz IF (140 ± 36 MHz optional) output frequency
- Auto band sensing capability
- Redundant option available
5 customers are viewing this product
Details
Comtech EF Data LBC-4000A L-Band Up/Down Converter System
The Comtech EF Data LBC-4000A L-Band to IF indoor frequency converter is a 1RU 19-inch chassis with two front panel accessible converter modules. The unit can be configured as a redundant up or down converter, or two individual up or down converters, or an up and a down converter. It contains two diode “OR-ed” internal power supplies, for increased reliability and microprocessor-based Monitor & Control (M&C) functions.
The LBC-4000A up converter module translates a 70 MHz IF input signal (140 MHz optional) up to a user-selected frequency at L-Band (950 to 2000 MHz).
The LBC-4000A down converter module translates an L-Band (950 to 2000 MHz) input signal down to a user selected frequency in the 70 MHz (140 MHz optional) IF band. The LBC-4000 can be locked to an internal reference or an external 5 or 10 MHz reference signal. The LBC-4000 is an excellent choice for interfacing legacy 70 or 140 MHz equipment to quad-band or tri-band block converters.
Comtech EF Data LBC-4000A Upconverter Features
- Meets or exceeds MIL-STD-188-164A
- Low phase noise
- 1 kHz option
- 40 dB user attenuation adjustment
- 70 ±18 MHz IF (140 ± 36 MHz optional) Input Frequency
- 950 - 2000 MHz output frequency
- Auto band sensing capability
- Redundant option available
Comtech EF Data LBC-4000A Downconverter Features
- Meets or exceeds MIL-STD-188-164A
- Low phase noise
- User-selectable spectral inversion
- 50 dB user attenuation adjustment
- 950 - 2000 MHz input frequency
- 70 ±18 MHz IF (140 ± 36 MHz optional) output frequency
- Auto band sensing capability
- Redundant option available
