Cobham

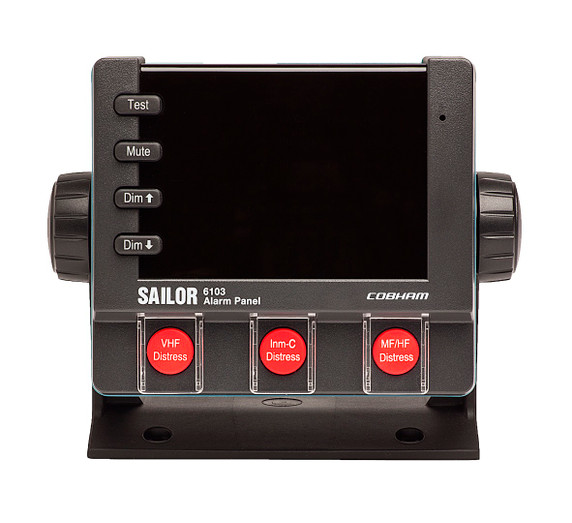

Cobham SAILOR 6103 Multi Alarm Panel - 406103A-00500
Product Code:
406103A-00500
Condition:
New
Availability:
YES
Weight:
0.50 KGS
Width:
15.30
(cm)
Height:
12.40
(cm)
Depth:
9.00
(cm)
$1,680.00
SAILOR 6103 GMDSS Alarm Panel for Connection to VHF, MF/HF and Mini-C.
The Alarm Panel is used for sending distress alerts and showing visible and audible indication of incoming distress messages.
The distress buttons are protected by spring loaded covers to avoid unintended activation of a distress alert. The distress buttons must be pressed for 3 to 6 seconds before the distress alert is initiated. The Alarm Panel is supplied from 10.8 - 32 V DC. The input is protected against reverse polarity.
The SAILOR 6103 Multi Alarm Panel has three distress buttons and can send distress alerts via Inmarsat C, and distress calls via VHF and MF/HF. It can also receive information on incoming distress messages.
The SIALOR 6103 Multi Alarm Panel connects to VHF equipment, MF/HF equipment and Inmarsat C equipment.
Through the Ethernet connector and a connected Ethernet switch you can interface to two Inmarsat C systems, two VHF systems and two MF/HF systems.
SAILOR 6103 GMDSS Alarm Panel Includes:
- DC Power Cable, 4pin
- U-Bracket
- Flush Mounting Kit
- User Manual
5 customers are viewing this product
Details
SAILOR 6103 GMDSS Alarm Panel for Connection to VHF, MF/HF and Mini-C.
The Alarm Panel is used for sending distress alerts and showing visible and audible indication of incoming distress messages.
The distress buttons are protected by spring loaded covers to avoid unintended activation of a distress alert. The distress buttons must be pressed for 3 to 6 seconds before the distress alert is initiated. The Alarm Panel is supplied from 10.8 - 32 V DC. The input is protected against reverse polarity.
The SAILOR 6103 Multi Alarm Panel has three distress buttons and can send distress alerts via Inmarsat C, and distress calls via VHF and MF/HF. It can also receive information on incoming distress messages.
The SIALOR 6103 Multi Alarm Panel connects to VHF equipment, MF/HF equipment and Inmarsat C equipment.
Through the Ethernet connector and a connected Ethernet switch you can interface to two Inmarsat C systems, two VHF systems and two MF/HF systems.
SAILOR 6103 GMDSS Alarm Panel Includes:
- DC Power Cable, 4pin
- U-Bracket
- Flush Mounting Kit
- User Manual
Download
| Download Name | |
| SAILOR 6103 Multi Alarm Panel User Manual | |
