Cisco

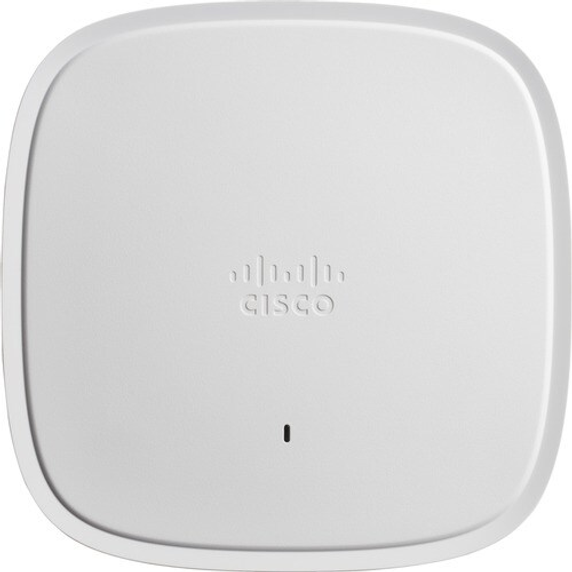

Cisco C9120AXE-H Catalyst 9120AXE Access Point
Product Code:
C9120AXE-H
Weight:
3.00 KGS
Width:
24.13
(cm)
Height:
5.84
(cm)
Depth:
24.13
(cm)
$2,277.06
The Cisco® Catalyst® 9120 Series Access Points are the next generation of enterprise access points. They are resilient, secure, and intelligent.
We are more dependent on our wireless networks than ever before. Additional devices connect to the network every year and the Cisco Catalyst 9120 Series Access Points will provide a seamless experience anywhere for everyone. Going beyond the Wi-Fi 6 (802.11ax) standard, the Catalyst 9120 provides integrated security, resiliency and operational flexibility as well as increased network intelligence.
Extending Cisco's intent-based network and perfect for networks of all sizes, the Catalyst 9120 scales to the growing demands of IoT while fully supporting the latest innovations and new technologies. Not only that, but the Catalyst 9120 is the leaders in performance, security and analytics.
The Catalyst 9120 Series Access Points, paired with Cisco DNA, are enterprise-class products that will address your current and future needs. These access points are the first step in updating your network and are able to take better advantage of all of the features and benefits that Wi-Fi 6 provides.
- 802.11ax wireless LAN standard ensures trouble-free and convenient connectivity
- 2.5 Gigabit Ethernet Ethernet technology for increasing efficiency with the quicker transfer and sharing of information
- Management port allows the convenience of establishing a large, efficient network
- 5.38 Gbit/s wireless transmission speed provides high and efficient communication with maximum efficiency
- External antenna form factor for reliable connectivity with maximum productivity
- Create a reliable wireless business network with this wireless access point that features a high-speed data transfer rate
| Feature | Specification |
| Part Number | C9120AXE-H |
| Description |
Indoor access point, external antennas, challenging environments |
| Regulatory Domains |
Customer verification required |
| Supported Controllers |
Cisco Catalyst 9800, 3500, 5520, 8540 Series, Virtual Wireless Controller |
| Wireless Standards |
802.11a/b/g/n/ac/ax |
| MIMO Technology |
4x4 MU-MIMO, 4 spatial streams |
| Frequency Bands |
2.4 GHz (20 MHz), 5 GHz (20, 40, 80, 160 MHz) |
| Max Data Rate |
5.38 Gbps (160 MHz on 5 GHz, 20 MHz on 2.4 GHz) |
| Antenna Type |
External (sold separately) |
| External Antenna Support |
Up to 6 dBi gain (2.4 GHz & 5 GHz) |
| Smart Antenna Connector |
Compact multi-RF DART, requires AIR-CAB002-DART-R= cable |
| Interfaces |
1x 2.5G Multigigabit Ethernet, Management console port, USB 2.0 (future) |
| Power Input |
802.3at PoE+, 802.3bt UPOE/UPOE+, Cisco Power Injectors (AIR-PWRINJ6=, AIR-PWRINJ5=) |
| PoE Power Consumption |
802.3at: 25.5W (full functionality), 802.3af: 13.4W (reduced performance) |
| Environmental Conditions |
Storage: -30°C to 70°C, Operating: -20°C to 50°C, Humidity: 10-90% (non-condensing), Altitude: 9843 ft at 40°C |
| System Memory |
2048 MB DRAM, 1024 MB Flash |
| Dimensions |
8.5 x 8.05 x 2.0 inches (21.6 x 21.6 x 5.1 cm) |
| Weight | 3 lb (1.36 kg) |
| Transmit Power |
2.4 GHz: 23 dBm (max), -4 dBm (min); 5 GHz: 26 dBm (max), -1 dBm (min) |
| Warranty |
Limited lifetime hardware warranty |
5 customers are viewing this product
Details
The Cisco® Catalyst® 9120 Series Access Points are the next generation of enterprise access points. They are resilient, secure, and intelligent.
We are more dependent on our wireless networks than ever before. Additional devices connect to the network every year and the Cisco Catalyst 9120 Series Access Points will provide a seamless experience anywhere for everyone. Going beyond the Wi-Fi 6 (802.11ax) standard, the Catalyst 9120 provides integrated security, resiliency and operational flexibility as well as increased network intelligence.
Extending Cisco's intent-based network and perfect for networks of all sizes, the Catalyst 9120 scales to the growing demands of IoT while fully supporting the latest innovations and new technologies. Not only that, but the Catalyst 9120 is the leaders in performance, security and analytics.
The Catalyst 9120 Series Access Points, paired with Cisco DNA, are enterprise-class products that will address your current and future needs. These access points are the first step in updating your network and are able to take better advantage of all of the features and benefits that Wi-Fi 6 provides.
- 802.11ax wireless LAN standard ensures trouble-free and convenient connectivity
- 2.5 Gigabit Ethernet Ethernet technology for increasing efficiency with the quicker transfer and sharing of information
- Management port allows the convenience of establishing a large, efficient network
- 5.38 Gbit/s wireless transmission speed provides high and efficient communication with maximum efficiency
- External antenna form factor for reliable connectivity with maximum productivity
- Create a reliable wireless business network with this wireless access point that features a high-speed data transfer rate
| Feature | Specification |
| Part Number | C9120AXE-H |
| Description |
Indoor access point, external antennas, challenging environments |
| Regulatory Domains |
Customer verification required |
| Supported Controllers |
Cisco Catalyst 9800, 3500, 5520, 8540 Series, Virtual Wireless Controller |
| Wireless Standards |
802.11a/b/g/n/ac/ax |
| MIMO Technology |
4x4 MU-MIMO, 4 spatial streams |
| Frequency Bands |
2.4 GHz (20 MHz), 5 GHz (20, 40, 80, 160 MHz) |
| Max Data Rate |
5.38 Gbps (160 MHz on 5 GHz, 20 MHz on 2.4 GHz) |
| Antenna Type |
External (sold separately) |
| External Antenna Support |
Up to 6 dBi gain (2.4 GHz & 5 GHz) |
| Smart Antenna Connector |
Compact multi-RF DART, requires AIR-CAB002-DART-R= cable |
| Interfaces |
1x 2.5G Multigigabit Ethernet, Management console port, USB 2.0 (future) |
| Power Input |
802.3at PoE+, 802.3bt UPOE/UPOE+, Cisco Power Injectors (AIR-PWRINJ6=, AIR-PWRINJ5=) |
| PoE Power Consumption |
802.3at: 25.5W (full functionality), 802.3af: 13.4W (reduced performance) |
| Environmental Conditions |
Storage: -30°C to 70°C, Operating: -20°C to 50°C, Humidity: 10-90% (non-condensing), Altitude: 9843 ft at 40°C |
| System Memory |
2048 MB DRAM, 1024 MB Flash |
| Dimensions |
8.5 x 8.05 x 2.0 inches (21.6 x 21.6 x 5.1 cm) |
| Weight | 3 lb (1.36 kg) |
| Transmit Power |
2.4 GHz: 23 dBm (max), -4 dBm (min); 5 GHz: 26 dBm (max), -1 dBm (min) |
| Warranty |
Limited lifetime hardware warranty |
Download
| Download Name | |
| Catalyst 9120AXE Access Point Data Sheet | |
