Calian

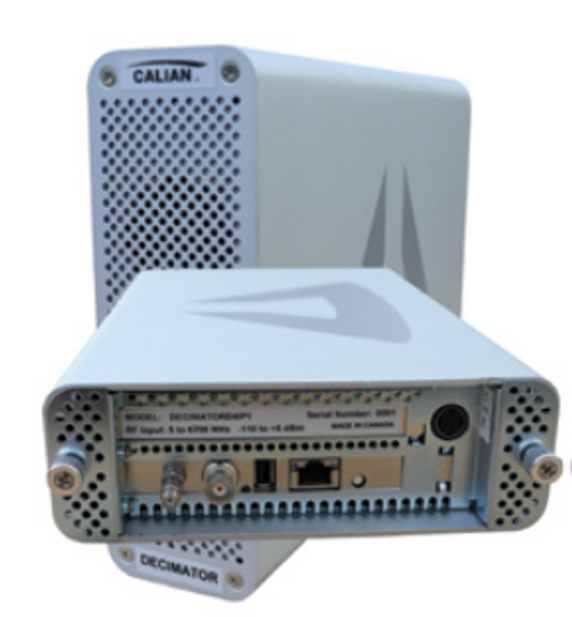

Calian Portable Decimator D4 Spectrum & Signal Analyzer
Product Code:
DecimatorD4/P1
Condition:
New
Weight:
1.63 KGS
Width:
17.53
(cm)
Height:
5.84
(cm)
Depth:
24.13
(cm)
$11,285.71
The Portable Decimator D4 is a fourth-generation spectrum measurement and analysis product providing high-end performance at a low price.
It’s conveniently packaged for use by field technologists or it can be installed anywhere in satellite, cable or terrestrial wireless networks.
The Portable Decimator D4 is a small enclosure easily transported in a typical laptop case. It can be connected to any AC power source worldwide.
The powerful GUI is available using any standard web browser.
The Portable Decimator D4 uses state-of-the art digital technology and fast fourier transformations to make fast and accurate measurements.
With a very low noise floor and large dynamic range, it is well-suited to measure any type of satellite, cable or terrestrial wireless carrier, including very small carriers, beacon signals and for carrier monitoring applications.
The Portable Decimator D4 accepts all signals from 5 MHz to 6.5 GHz and input power levels ranging from –110 to +5 dBm. RBW varies from 1 Hz to 15 MHz.
The Portable Decimator D4 can be connected to an external 10 MHz reference for improved frequency accuracy and stability.
All data communications with the Portable Decimator D4 occurs via its built-in ethernet port. No additional software is required.
The GUI is very easy to use and operates like most traditional spectrum analyzers. It provides user selectable colours for markers and traces, allows storage of multiple traces and provides measurement reporting.
The Decimator D4 also includes a powerful built-in carrier monitoring function, which provides notification via email or SNMP of carrier measurements that exceed user-defined thresholds, offering you peace of mind that up to 100 of your carriers are operating as expected.
The signal analysis engine demodulates and decodes the MPEG transport stream-based DVB-S/S2/S2X signal and provides signal characteristics, modulation accuracy, power measurements and constellation display to view the digital modulation quality.
Overview
- Full satellite L-band, standard C-band, plus cable & wireless bands from 5 MHz to 6.5 GHz (50 ohm SMA)
- Built-in carrier monitoring
- External 10 MHz reference or internal reference
- Web browser control
- Small enclosure
- Connects to AC power worldwide
- Custom design versions supporting other frequency bands or form factors available upon request
Key Features
- Secure web browser user interface can be run on all devices
- Analysis frequency range 5 MHz to 6.5 GHz
- Carrier monitoring, cross-pol isolation measurement
- DVB-S/S2/S2X demodulation and signal analysis
- Constellation display and waterfall display
- Programmable email & SNMP alarms can be set up to notify multiple people immediately if a signal is out of pre-set thresholds
- Up to 10 concurrent remote users can connect to the Decimator D4 and perform ad-hoc measurements
5 customers are viewing this product
Details
The Portable Decimator D4 is a fourth-generation spectrum measurement and analysis product providing high-end performance at a low price.
It’s conveniently packaged for use by field technologists or it can be installed anywhere in satellite, cable or terrestrial wireless networks.
The Portable Decimator D4 is a small enclosure easily transported in a typical laptop case. It can be connected to any AC power source worldwide.
The powerful GUI is available using any standard web browser.
The Portable Decimator D4 uses state-of-the art digital technology and fast fourier transformations to make fast and accurate measurements.
With a very low noise floor and large dynamic range, it is well-suited to measure any type of satellite, cable or terrestrial wireless carrier, including very small carriers, beacon signals and for carrier monitoring applications.
The Portable Decimator D4 accepts all signals from 5 MHz to 6.5 GHz and input power levels ranging from –110 to +5 dBm. RBW varies from 1 Hz to 15 MHz.
The Portable Decimator D4 can be connected to an external 10 MHz reference for improved frequency accuracy and stability.
All data communications with the Portable Decimator D4 occurs via its built-in ethernet port. No additional software is required.
The GUI is very easy to use and operates like most traditional spectrum analyzers. It provides user selectable colours for markers and traces, allows storage of multiple traces and provides measurement reporting.
The Decimator D4 also includes a powerful built-in carrier monitoring function, which provides notification via email or SNMP of carrier measurements that exceed user-defined thresholds, offering you peace of mind that up to 100 of your carriers are operating as expected.
The signal analysis engine demodulates and decodes the MPEG transport stream-based DVB-S/S2/S2X signal and provides signal characteristics, modulation accuracy, power measurements and constellation display to view the digital modulation quality.
Overview
- Full satellite L-band, standard C-band, plus cable & wireless bands from 5 MHz to 6.5 GHz (50 ohm SMA)
- Built-in carrier monitoring
- External 10 MHz reference or internal reference
- Web browser control
- Small enclosure
- Connects to AC power worldwide
- Custom design versions supporting other frequency bands or form factors available upon request
Key Features
- Secure web browser user interface can be run on all devices
- Analysis frequency range 5 MHz to 6.5 GHz
- Carrier monitoring, cross-pol isolation measurement
- DVB-S/S2/S2X demodulation and signal analysis
- Constellation display and waterfall display
- Programmable email & SNMP alarms can be set up to notify multiple people immediately if a signal is out of pre-set thresholds
- Up to 10 concurrent remote users can connect to the Decimator D4 and perform ad-hoc measurements
