New
Zoom the image with the mouse
AYECKA

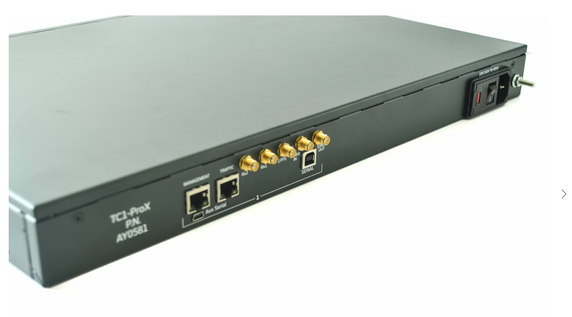

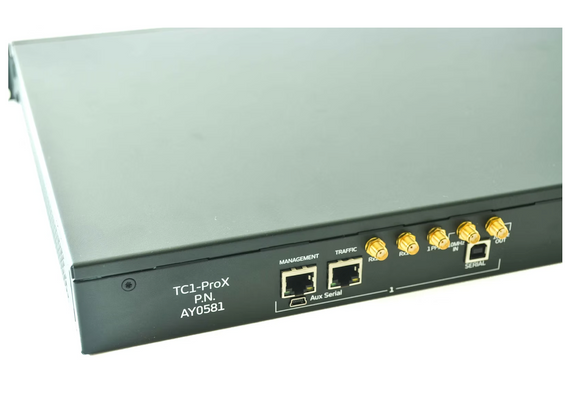

AYECKA TC-1 Prox DVBS-2X Transport Stream Converter
Product Code:
TC1PROX
Condition:
New
Weight:
1.80 KGS
Width:
48.30
(cm)
Height:
4.45
(cm)
Depth:
31.00
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
The TC1ProX is our latest generation transport stream converter. The converter fully supports DVB-S, DVB-S2 and DVB-S2X standards, with symbol rates ranging from 100 Ksps to 500 Msps, and is ideally suited to applications requiring broad satellite signal monitoring capabilities.
Product Highlights
- Full L-band tuner capable of rejecting strong neighboring signals
- Broadcast and Interactive DVB-S2X Profiles
- Full CCM, VCM, ACM standard compliance
- Roll Off down to 0.05 for DVB-S2X and 0.20 for DVB-S2
- NCR lock option including sliced signals (Annex M)
- Full compliance ESA L.3 standard baseband frame output over GbE interface
- Fast lock time – power up to data output
- Advanced lock and search modes
a. L-Band frequency only with auto symbol rate detection
b. L-Band + symbol rate
c. Relock (no search) - DiSEqC 2.x, 500ma LNB power (support universal and professional LNB)
- Compatible with AYECKA TC1 Analyzer software
Main Applications
- Video Monitoring
- Data Monitoring
- Spectrum Scanning Systems
5 customers are viewing this product
Details
The TC1ProX is our latest generation transport stream converter. The converter fully supports DVB-S, DVB-S2 and DVB-S2X standards, with symbol rates ranging from 100 Ksps to 500 Msps, and is ideally suited to applications requiring broad satellite signal monitoring capabilities.
Product Highlights
- Full L-band tuner capable of rejecting strong neighboring signals
- Broadcast and Interactive DVB-S2X Profiles
- Full CCM, VCM, ACM standard compliance
- Roll Off down to 0.05 for DVB-S2X and 0.20 for DVB-S2
- NCR lock option including sliced signals (Annex M)
- Full compliance ESA L.3 standard baseband frame output over GbE interface
- Fast lock time – power up to data output
- Advanced lock and search modes
a. L-Band frequency only with auto symbol rate detection
b. L-Band + symbol rate
c. Relock (no search) - DiSEqC 2.x, 500ma LNB power (support universal and professional LNB)
- Compatible with AYECKA TC1 Analyzer software
Main Applications
- Video Monitoring
- Data Monitoring
- Spectrum Scanning Systems
