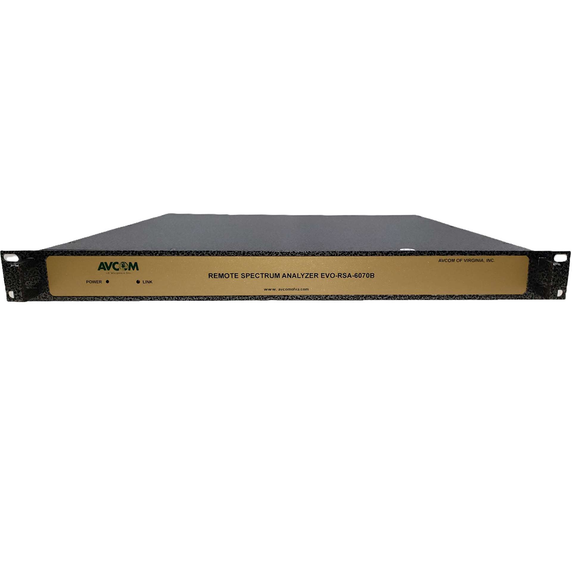

Avcom EVO-RSA Rackmount Spectrum Analyzer (Rev B)
Product Code:
EVO-RSA-XXXXB-XX
Condition:
New
Weight:
3.27 KGS
Width:
48.26
(cm)
Height:
4.37
(cm)
Depth:
46.04
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.315.9545
The EVO-RSA is a spectrum analyzer designed on a completely new platform to meet today’s system challenges. Avcom’s newest analyzer technology provides excellent performance by employing high-performance DSP, and FPGAs. This robust product features many capabilities to provide reliable operation and monitoring in rackmount applications.
The spectrum analyzer can be connected via ethernet, or USB, and supports communication with a WEB-GUI, POSIX-C API, and Avcom' s EVO GUI. This wide range of options makes the unit ideal for integrating with custom M&C systems or easy setups using existing Avcom applications.
Features:
- Monitoring & Control (M&C) via Multiple Interfaces
- Up to 12 Inputs Available
- L-Band and Extended Frequency Band Options
| TECHNICAL SPECIFICATIONS | ||||
| RF SPECIFICATIONS | ||||
| Input Connectors | SMA, BNC, F, and/or N | |||
| Nominal Input Impedance | 50 Ω (SMA, BNC, N) 75 Ω (F) |
|||
| Max DC Input Voltage | 25 V | |||
| Input Frequency Range | MODEL | MIN (MHz) | MAX (MHz) | |
| 2290 | 900 | 2200 | ||
| 3040 | 400 | 3000 | ||
| 3070 | 70 | 6000 | ||
| Max Span Width | 1300 MHz | |||
| Min Tuning Step Size | 1 kHz | |||
| Resolution Bandwidth | 1 kHz, 3 kHz, 10 kHz, 30 kHz, 100 kHz, 300 kHz, 1 MHz | |||
| Reference Levels | -40 dBm, -30 dBm, -20 dBm, -10 dBm | |||
| Maximum Input Power Level | -10 dBm | |||
| RF Sensitivity (-40 Ref Level) | -100 dBm | |||
| Spur Free Dynamic Range (3 kHz RBW) | 60 dB | |||
| Noise Floor (-40 dBm Ref Level, 3 kHz RBW) | -100 dBm, -134 dB/Hz | |||
| Noise Floor (-10 dBm Ref Level, 3 kHz RBW) | -70 dBm, -104 dB/Hz | |||
| Isolation Between Inputs | >40 dB typical | |||
| Amplitude Accuracy | +/- 1 dB typical | |||
| Frequency Accuracy | +/- 1 kHz typical | |||
| Phase Noise (2 GHz) | OFFSET FREQUENCY | PHASE NOISE (dBc/Hz) | ||
| 10 kHz | -100 | |||
| 100 kHz | -100 | |||
| 1 MHz | -109 | |||
