Agilis

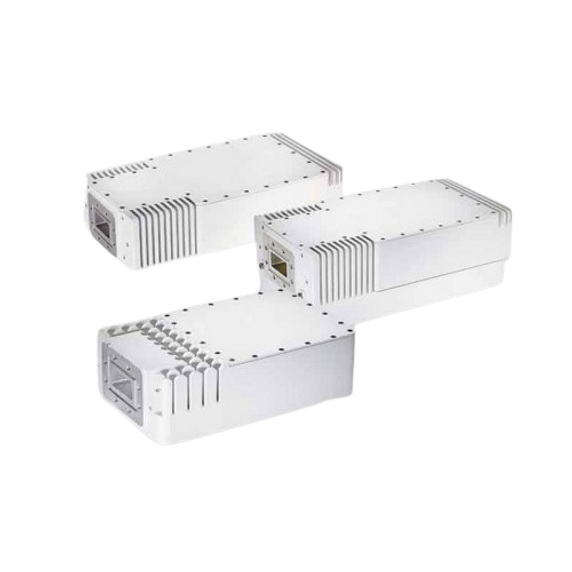

Agilis ALB180F2EA-FK ALB180 Series 10W Full C-Band VSAT Outdoor Block-Up Converter F Input (BUC)
Product Code:
ALB180F2EA-FK
Condition:
New
Availability:
Please Contact Us At Contact@Orbitalconnect.Com Or 888.315.9545.
Weight:
3.00 KGS
Width:
25.00
(cm)
Height:
9.40
(cm)
Depth:
12.80
(cm)
$3,384.61
| Summary | ||||||||||||||||||||||||||
|
Agilis ALB180 K-Series C-Band BUC (Block-up Converter) is a highly cost effective outdoor RF Agilis C-Band BUC is designed for high reliability operation in various applications such as flyaway antenna. The BUC also has one of the best M&C features in the industry. Easy to install, it is redundancy-ready and field-proven for any harsh operating environment. It is suitable for both data and voice communication operating in different modulation formats. Agilis C-Band BUC offers a wide range of distinctive advantages and enhanced features for satellite communications systems based in remote or challenging geographic regions. The equipment employs L-Band interface to the indoor unit. Agilis ALB180 K-Series C-Band BUC is an ideal solution suitable for broadband application (such as DVB- RCS) in satellite IP networks. |
||||||||||||||||||||||||||
| Features | ||||||||||||||||||||||||||
| • Available for all C-Band frequencies • Direct antenna mount • Wide operating temperature range -40ºC to +60ºC • Wide input D.C voltage range 18V to 60V for 5W and 10W C-BUC • Standard RS232/485 interface & optional SNMP/HTTP M&C option • Excellent linearity • Extremely reliable • High power efficiency • Excellent phase noise characteristics • Low spurious • Automatic temperature compensation feature • RoHS compliant • Waterproof with IP65 standard • Easy installation • Redundancy option |
||||||||||||||||||||||||||
| Monitoring and Control | ||||||||||||||||||||||||||
| • SSPA on/off control • Automatic gain control with level stability accuracy better than ± 0.5dB • Adjustable gain • Temperature sensor reading • LO unlocked alarm • Input power detection • Output power detection • SNMP/HTTP (Optional) |
||||||||||||||||||||||||||
| Reliability | ||||||||||||||||||||||||||
| Field proven under harsh environment conditions, Agilis ODUs can withstand temperature ranging from -40ºC to +60ºC with up to 100% humidity. | ||||||||||||||||||||||||||
| Quality Assurance | ||||||||||||||||||||||||||
| All Agilis ODUs go through intensive active electrical stress screening with performance being monitored during screening. In addition, all outdoor units undergo 100% waterproof test equivalent to IP65 to ensure normal operation in tropical, cold and harsh environments. | ||||||||||||||||||||||||||
| Frequency Range | ||||||||||||||||||||||||||
|
||||||||||||||||||||||||||
|
||||||||||||||||||||||||||
|
||||||||||||||||||||||||||
|
||||||||||||||||||||||||||
|
||||||||||||||||||||||||||
|
||||||||||||||||||||||||||
|
||||||||||||||||||||||||||
|
||||||||||||||||||||||||||
5 customers are viewing this product
