Agilis

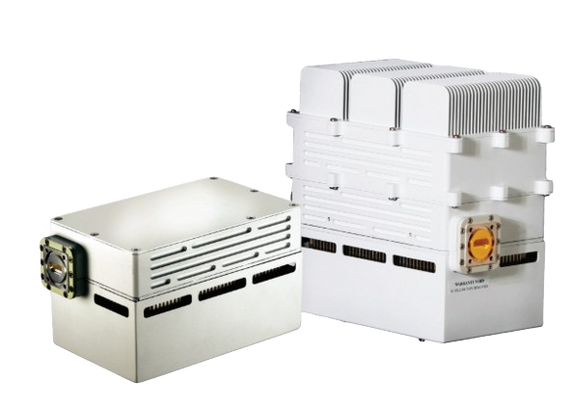

Agilis ALB1292F7-16C-F ALB129 Series Compact 16W Ext. Ku-Band Block-Up Converter
Product Code:
ALB1292F7-16C-F
Condition:
New
Availability:
Please Contact Us At Contact@Orbitalconnect.Com Or 888.315.9545.
Weight:
6.50 KGS
Width:
23.50
(cm)
Height:
13.00
(cm)
Depth:
21.00
(cm)
$8,461.53
Agilis ALB1292F7-16C-F ALB129 Series Compact 16W Ext. Ku-Band Block-Up Converter
ALB128 Series Ku-Band BUC (Block-Up Converter) is a highly cost effective RF outdoor transmitter for satellite communication. The BUC has very high output power linearity and works well from -40ºC up to 60ºC. The BUC also has a wide input voltage range which allows it to work from 18V to 60V. Agilis Ku-Band BUC is designed for high reliability operation in various applications such as flyaway antenna. The BUC also has the most complete M&C features in the industry.
Agilis Ku-Band BUC is a compact design that comprises of Upconverter, Solid State Power Amplifier, Phase Locked Oscillator and DC-DC power converter. It employs L-Band IF interface to the indoor unit. Agilis ALB128 Ku-Band BUC is an ideal design suitable for broadband applications (such as DVB-RCS) in satellite IP networks.
Features
• Compact and lightweight
• Feed mountable
• Available in both standard and extended Ku-Band
• Forward power detection facility
• Intuitive monitoring & control through RS232/485 & Ethernet (SNMP & HTTP)
• Auto ranging 38 to 60VDC Power Supply
• Optional input AC Voltage
• Automatic fault identification & alarm generation
• Wide operating temperature range -40ºC to +60ºC
• IP65 rated housing ( Weather proof Construction)
• RoHS compliant
Quality Assurance
100% of all BUCs go through stringent quality checks in addition to well defined Electrical Stress Screening to ensure operation in harsh outdoor environments. The BUCs are also subjected to seal test for water ingress verification.
Reliability
Field proven under harsh environment conditions, Agilis ODUs can withstand temperature ranging from -40ºC to +60ºC with up to 100% humidity.
| Technical Specifications | |
| Transmit Frequency | 13.75GHz-14.5GHz |
| IF Frequency Range | 950MHz to 1700MHz |
| LO Frequency | 12.8GHz (Extended Ku-Band) |
| Output Power (Pisa) | 46dBm |
| Spectral Re-growth | 30dBc @2dB below rated power (Pics) at 1.0 x symbol rate offset for OQPSK or QPSK |
| Small Signal Gain | 74dB Min |
| Gain Flatness | ±2dB over the O/P frequency band, ±2dB over the operating temperature range |
| Gain Control | 20 dB in step of 0.5 dB |
| O/P spurious | According to EN301428 |
| Phase Noise @ Offset | |
| 1KHz 10KHz 100KHz |
-73dBc/Hz -83dBc/Hz -93dBc/Hz |
| I/P VSWR | 1.5:1 |
| O/P VSWR | 1.25:1 (with optional external isolator) |
| Noise Power Density Tx BD | 70dBW/4KHz |
| Noise Power Density Rx BD | 142dBW/4KHz |
| DC Power | |
| Prime Power | 48VDC (range 38 to 60VDC) via external MS connector, Optional 230VAC (range 96 to 264VAC) |
| Power Consumption | 177.6W (max for 16W/20W/25W ) |
| Interfaces | |
| IF Input Interface | 50Ohms N-type Female |
| Output Interface | WR 75G |
| External Reference | |
| Frequency | 10MHz |
| Power | -5dBm to +5dBm |
| Monitor | BUC temperature, Status alarm, RF output power, LED status indication |
| Control | Attenuation, RF output mute |
| Tx Redundancy | External RCU (optional for 1+1 redundancy system requirement) |
| Environmental | |
| Operating Temperature | -40°C to +60°C |
| Humidity | Up to 100% |
| Weather protection | Sealed to IP65 |
| Mechanical | |
| Dimensions | 200L x 130W x 130H mm, 200L x 130W x 235H mm (AC option) |
| Weight | 3.7kg/8.14lbs, 6.0kg/13.22lbs (AC option) |
| Colour | White Powder Coat |
