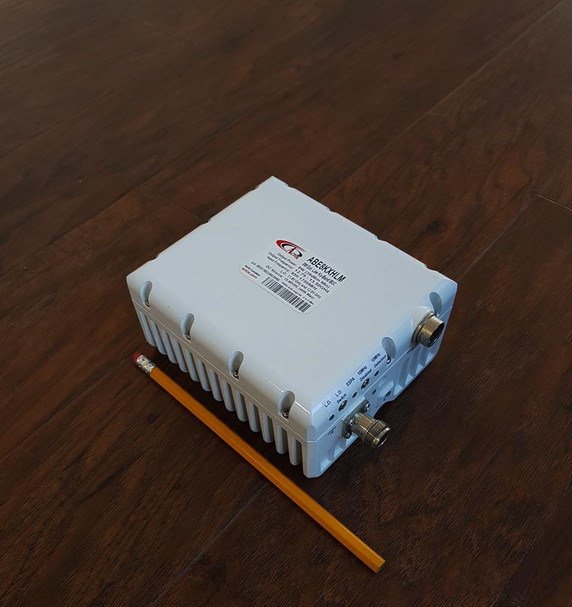

Actox ABE8KXHLMF - 8W Low Ku-Band Block Up Converter, F-Type
Product Code:
ABE8KXHLMF
Condition:
New
Availability:
YES
Weight:
1.20 KGS
Width:
14.00
(cm)
Height:
12.00
(cm)
Depth:
6.95
(cm)
$4,235.00
This unit features:
- Output frequency 12.75-13.50 GHz
- Based on GaN technology which enables high efficiency, low energy consumption and high reliability
- Double - L.O. (switchable 11.80 and 12.05 GHz)
- Incomparable low power consumption (47W max)- can be powered by iDirect or similar modems
- Extreme P-Out GaN linearity
- Digital temperature compensation
- L.O. lock and amplifier LEDs
- Field-exchangeable (F/N) IF connector
- Internal 10 MHz reference, high stability (optional)
- RoHS compliant
|
Model |
RF Frequency |
Local Frequency |
IF Frequency |
Output Power |
Connector |
|
ABE8KXHLMF |
12.75 to 13.50 GHz |
11.80 and 12.05 GHz |
950 to 1,700 MHz |
8W (+39 dBm min.) |
F-type |
|
Parameter |
Value |
|
Output interface |
Waveguide, WR-75 G |
|
Output power |
+39 dBm minimum over temperature |
|
Conversion gain |
62 dB typ |
| External reference required frequency |
10 MHz (sine-wave) |
| External reference input power |
-5 to +5 dBm @ input port |
|
Phase noise (Exceeds Intelsat’s standard IESS308/309) |
-53 dBc/Hz max. @ 10 Hz -63 dBc/Hz max. @ 100 Hz -73 dBc/Hz max. @ 1 KHz -83 dBc/Hz max. @ 10 KHz -93 dBc/Hz max. @ 100 KHz -113 dBc/Hz max. @ 1 MHz |
|
Input V.S.W.R. |
1.5:1 max |
|
Output V.S.W.R. |
1.5:1 max |
|
Power supply : auto-ranging via IF connector |
+15 VDC ~ +60 VDC, 47W max. |
|
Mute |
Shut off the BUC if L.O. unlocked |
|
Input interface |
F-type |
|
Power consumption |
47W max. |
|
Operating temperature |
-40 to +55 degrees C |
|
Storage temperature |
-55 to +85 degrees C |
|
Vibration & shock |
Complies with MIL-STD-810E |
|
Size |
140 (L) x 120 (W) x 69.5 (H) mm |
|
Weight |
1.2 kg (2.6 lbs) max |
