Actox

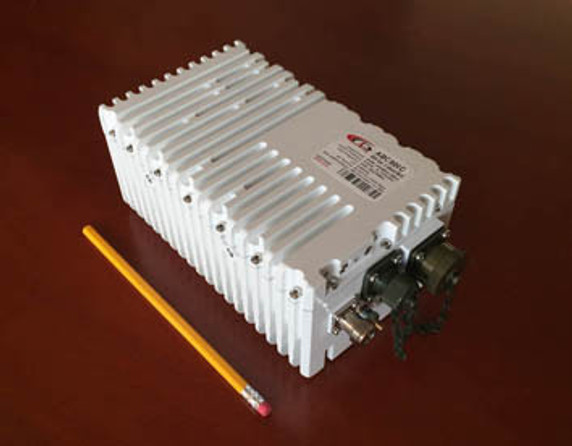

Actox ABC80ICF - 80W Insat 6.725-7.025 GHz C-Band BUC, F-Type
Product Code:
ABC80ICF-DC
Condition:
New
Availability:
YES
Weight:
3.36 KGS
Width:
12.00
(cm)
Height:
10.15
(cm)
Depth:
19.50
(cm)
$11,855.17
| ABC80ICF - 80W Insat 6.725-7.025 GHz C-Band BUC | ||||||||||||||
|
This unit features:
|
||||||||||||||
| Parameter | Value |
| Output interface | Waveguide, CPR-137 |
| Output power @ P1 dB | +49 dBm minimum over temperature |
| Conversion gain | 75 dB max |
| Required frequency | 10 MHz (sine-wave) |
| External reference input power | -5 to +5 dBm @ input port |
| Phase noise | -55 dBc/Hz max. @ 10 Hz -65 dBc/Hz max. @ 100 Hz -75 dBc/Hz max. @ 1 KHz -85 dBc/Hz max. @ 10 KHz -95 dBc/Hz max. @ 100 KHz -115 dBc/Hz max. @ 1 MHz |
| Input V.S.W.R. | 1.5:1 max |
| Output V.S.W.R. | 1.5:1 max |
| Power option | +36 ~ +60 VDC via MS con., 350 W max |
| Mute | Shut off the HPA in case of LO unlocked |
| Input interface | F-type |
| M&C | RS-232 and RS-485 |
| FSK | Multiplexed on TX IFL, compatible with Comtech and Paradise |
