Norsat International Inc.

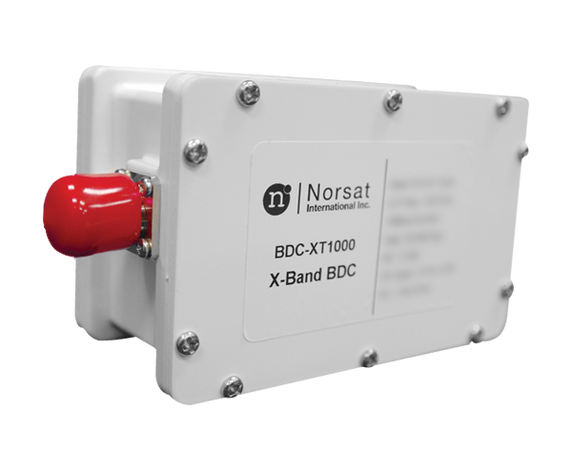

Norsat BDC-XT1000N 1000 Single Band X-Band EXT REF BDC
Product Code:
BDC-XT1000N
Condition:
New
Availability:
6 - 8 Weeks
Weight:
0.55 KGS
Width:
8.00
(cm)
Height:
4.20
(cm)
Depth:
10.80
(cm)
$5,500.00
Norsat’s Block Downconverters (BDCs) provide high performance signal conversion for satellite communication.
| KEY SPECIFICATIONS | |
| Band | X-Band |
| External Ref Freq | 10 MHz (sine-wave), +/- 5 dBm |
| Input Frequency Band 1 | 8.00 - 8.70 GHz |
| LO Frequency 1 | 7.05 GHz |
| LO Stability | Ext Ref |
| Noise Figure | 13 dB max. at room temp. |
| Number Of Onboard Los | Single-Band |
| Output Frequency Band 1 | 950 - 1650 MHz |
| RF SPECIFICATIONS | |
| Conversion Gain Max | 33 dB |
| Conversion Gain Min | 27 dB |
| Conversion Gain Typ | 30 dB |
| Gain Flatness (Over Full Band) | ≤ 4 dB p-p |
| Input VSWR | 2.2 : 1 max. |
| Output P1db | + 5 dBm min. |
| Phase Noise SSB Max | Depends on External Reference |
| ELECTRICAL SPECIFICATIONS | |
| Power Requirements | 15 - 24 V |
| INTERFACE SPECIFICATIONS | |
| RF Input Connector | N: 50 Ohm |
| RF Output Connector | N: 50 Ohm |
| ENVIRONMENTAL SPECIFICATIONS | |
| IP Rating | IP 67 |
| Temperature Operational | -40°C to +60°C |
| Temperature Storage | -50 to +70°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 42 mm |
| Product Length | 108 mm |
| Product Weight | 0.55 kg |
| Product Width | 80 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0.46 kg |
| Aluminium COO | KR |
| Aluminium Total Value | $ 1.15 |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Unit Package Dimensions | 139 mm x 80 mm x 42 mm |
| Unit Package Height | 42 mm |
| Unit Package Length | 139 mm |
| Unit Package Width | 80 mm |
| Warranty | 3 years |
