SWIFT 2+1 REDUNDANCY SWITCH MODULE WITH STANDBY INPUTS AND OUTPUTS - DC-6 GHZ

Name: SWIFT 2+1 REDUNDANCY SWITCH MODULE WITH STANDBY INPUTS AND OUTPUTS - DC-6 GHZ
Brand: ETL Systems
SKU: SWF-G1S-CX-110
Availability: OutOfStock

No reviews yet

Product Code: SWF-G1S-CX-110

Availability: YES

Weight: 10.00 KGS

Request a quote at Contact@orbitalconnect.com or +1.888.315.9545

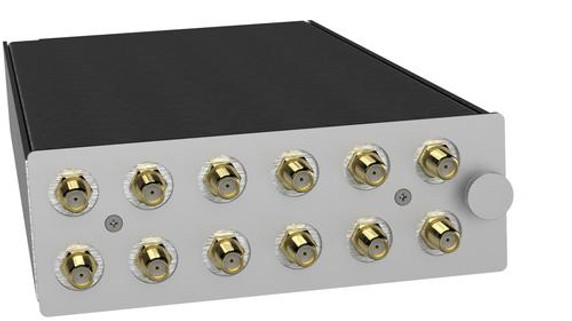

Model SWF-G1S-CX-110 is a 2:1 latching RF redundancy switch module with standby inputs and outputs for use in a 1U Genus chassis alongside Falcon frequency converter modules.

Covering an Input/Output frequency range of DC to 6 GHz.

Integrated Converter Redundancy - each Falcon redundancy module uses 6 slots per 1U Chassis, to be used alongside our Falcon upconverter and downconverter modules.

Offering hot-swap & field-replaceable 2+1 frequency converter redundancy, entirely contained in a 1U converter chassis. Without the need for a separate chassis for the redundancy switch.

Converter redundancy options - 1+1 or 2+1 redundant configuration options (with standby input / output) are available in the Falcon redundancy switch range.

Resilience - the redundant switch module is hot-swap and field replaceable by the user, minimising downtime. For full RF specifications, please check the datasheet.

GENUS CHASSIS FAMILY - The swift range of modules can be used for other redundancy configurations within the Genus chassis family.

VIEW THE FULL FALCON FREQUENCY CONVERTER RANGE

Each Falcon conversion chassis has 17 module slots.

2 slots are required for mandatory 10MHz reference source and fan.

Leaving 15 module slots for other RF modules.

Depending on the configuration the chassis can house up to 5 conversion modules or 3 conversion modules and a redundancy switch.

Maximum converter module capacity in the chassis is dependent upon the application required.

Module sizes

1 slot wide - for 10MHz reference source
1 slot wide - for fan
3 slots wide - for Falcon Up/Down Conversion modules
6 slots wide - for Swift Redundancy Switch modules
The swift range of modules can be used for other redundancy configurations within the Genus chassis family.

VIEW FALCON CONVERTER RANGE

Integrated redundancy within the Falcon RF converter chassis - each module is 6 slots wide
Can have up to 3 block or agile, up or down converter modules and 1 redundancy module in a 1U chassis
Only 1 chassis is required for frequency conversion & redundancy.
Eliminates the requirement for a 2nd redundancy chassis - saving rack space and power
1+1 redundancy or 2+1 redundancy switch module options depending on the application

VIEW FALCON CONVERTER RANGE

Data Sheet:

https://www.etlsystems.com/sites/default/files/products/downloads/DC-6GHz%202%2B1%20Redundancy%20Switch%20SWF-G1S-CX-110%20%20V0.1.pdf

More details

5 customers are viewing this product

Details
Specifications
Compare
Additional information

Details

Model SWF-G1S-CX-110 is a 2:1 latching RF redundancy switch module with standby inputs and outputs for use in a 1U Genus chassis alongside Falcon frequency converter modules.

Covering an Input/Output frequency range of DC to 6 GHz.

Integrated Converter Redundancy - each Falcon redundancy module uses 6 slots per 1U Chassis, to be used alongside our Falcon upconverter and downconverter modules.

Offering hot-swap & field-replaceable 2+1 frequency converter redundancy, entirely contained in a 1U converter chassis. Without the need for a separate chassis for the redundancy switch.

Converter redundancy options - 1+1 or 2+1 redundant configuration options (with standby input / output) are available in the Falcon redundancy switch range.

Resilience - the redundant switch module is hot-swap and field replaceable by the user, minimising downtime. For full RF specifications, please check the datasheet.

GENUS CHASSIS FAMILY - The swift range of modules can be used for other redundancy configurations within the Genus chassis family.

VIEW THE FULL FALCON FREQUENCY CONVERTER RANGE

Each Falcon conversion chassis has 17 module slots.

2 slots are required for mandatory 10MHz reference source and fan.

Leaving 15 module slots for other RF modules.

Depending on the configuration the chassis can house up to 5 conversion modules or 3 conversion modules and a redundancy switch.

Maximum converter module capacity in the chassis is dependent upon the application required.

Module sizes

1 slot wide - for 10MHz reference source
1 slot wide - for fan
3 slots wide - for Falcon Up/Down Conversion modules
6 slots wide - for Swift Redundancy Switch modules
The swift range of modules can be used for other redundancy configurations within the Genus chassis family.

VIEW FALCON CONVERTER RANGE

Integrated redundancy within the Falcon RF converter chassis - each module is 6 slots wide
Can have up to 3 block or agile, up or down converter modules and 1 redundancy module in a 1U chassis
Only 1 chassis is required for frequency conversion & redundancy.
Eliminates the requirement for a 2nd redundancy chassis - saving rack space and power
1+1 redundancy or 2+1 redundancy switch module options depending on the application

VIEW FALCON CONVERTER RANGE

Data Sheet:

https://www.etlsystems.com/sites/default/files/products/downloads/DC-6GHz%202%2B1%20Redundancy%20Switch%20SWF-G1S-CX-110%20%20V0.1.pdf
