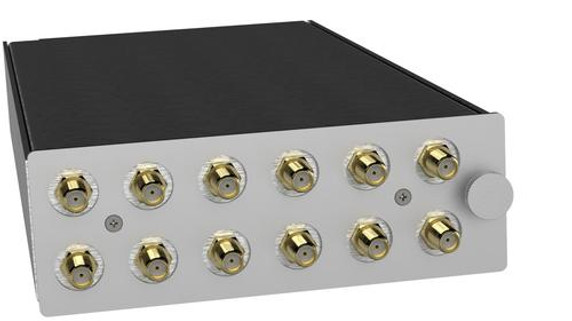

SWIFT 1+1 REDUNDANCY SWITCH MODULE WITH STANDBY INPUTS AND OUTPUTS - DC TO 18 GHZ

No reviews yet
Product Code: SWF-G1S-KX-109
Availability: YES
Weight: 10.00 KGS

Request a quote at Contact@orbitalconnect.com or +1.888.315.9545

Model SWF-G1S-KX-109 is a Falcon 1:1 latching RF redundancy switch module, with standby inputs and outputs for use in a 1U Genus chassis alongside Falcon frequency converter modules.

Covering an Input/Output frequency range of DC to 18 GHz.

Integrated Field-replaceable Converter Redundancy - Each Falcon redundancy module uses 6 slots per 1U Chassis, to be used alongside our Falcon up and downconverter modules.

Offering hot-swap & field-replaceable 2+1 frequency converter redundancy, entirely contained in a 1U converter chassis. Without the need for a separate chassis for the redundancy switch.

Converter redundancy options - 1+1 or 2+1 redundant configuration options (with standby input / output) are available in the Falcon redundancy switch range.

Resilience - the redundant switch module is hot-swap & field replaceable by the user, minimising downtime.  For full RF specifications, please check the datasheet.



Each Falcon conversion chassis has 17 module slots.

2 slots are required for mandatory 10MHz reference source and fan.

Leaving 15 module slots for other RF modules.

Depending on the configuration the chassis can house up to 5 conversion modules or 3 conversion modules and a redundancy switch.

Maximum converter module capacity in the chassis is dependent upon the application required.

Module sizes

  • 1 slot wide - for 10MHz reference source
  • 1 slot wide - for fan
  • 3 slots wide - for Falcon Up/Down Conversion modules
  • 6 slots wide - for Falcon Redundancy Switch modules




  • Integrated redundancy within the Falcon RF converter chassis - each module is 6 slots wide
  • Can have up to 3 block or agile, up or down converter modules and 1 redundancy module in a 1U chassis
  • Only 1 chassis is required for frequency conversion & redundancy.
  • Eliminates the requirement for a 2nd redundancy chassis - saving rack space and power
  • 1+1 redundancy or 2+1 redundancy switch module options depending on the application




Data sheet:
https://www.etlsystems.com/sites/default/files/products/downloads/DC-18GHz%201%2B1%20Redundancy%20Switch%20SWF-G1S-QX-109%20%20V0.1.pdf
