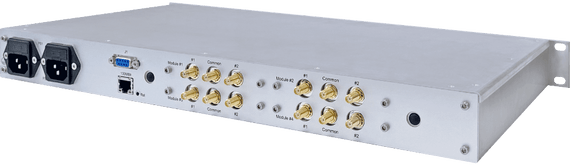

RF-Design FlexLink RSC201 Series - Single & Quad Redundancy Switch
Product Code:
9000400
Condition:
New
Availability:
YES
Weight:
5.00 KGS
Width:
55.00
(cm)
Height:
13.00
(cm)
Depth:
50.00
(cm)
The FlexLink RSC201 series represents professional 2:1 redundancy switches in 1RU/19"rack-mount design, operating at a broadband frequency range of 5...2500MHz. The units are available as single (1 x 2:1), 2-way (2 x 2:1), and quad (4 x 2:1) redundancy switches.
The FlexLink RSC201 2:1 redundancy switch´s output port can be switched to one input port manually or automatically while all input signals are individually monitored considering the predefined threshold level. The units provide alarming and also controls the switching independently. The unit is designed to allow redundancy switching between an active unit to a back-up unit so to assure constant and stable RF signal availability.

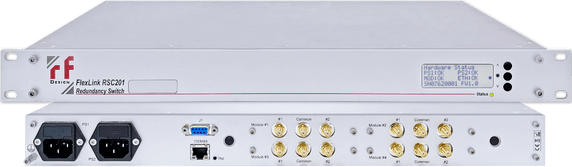

The units have a front-panel LC-Display/keypads for user-friendly local configuration. Remote access and configuration can be done via a rear side Ethernet-Interface (WebGUI/SNMP) while it can also be integrated into a third party management and control system (NMS or M&C) via SNMP.
Features & Benefits
- Space saving 1RU/19" chassis
- Available as single (1 x 2:1) and quad (4 x 2:1) redundancy switches
- Manual or automatic switching
- RF power monitoring
- Remote and local alarm monitoring
- DC-through voltage (Option)
- Local & remote configuration
- Front side Status LED´s
- 1:1 redundant dual power supply (hot-swap)
5 customers are viewing this product
Details
The FlexLink RSC201 series represents professional 2:1 redundancy switches in 1RU/19"rack-mount design, operating at a broadband frequency range of 5...2500MHz. The units are available as single (1 x 2:1), 2-way (2 x 2:1), and quad (4 x 2:1) redundancy switches.
The FlexLink RSC201 2:1 redundancy switch´s output port can be switched to one input port manually or automatically while all input signals are individually monitored considering the predefined threshold level. The units provide alarming and also controls the switching independently. The unit is designed to allow redundancy switching between an active unit to a back-up unit so to assure constant and stable RF signal availability.
The units have a front-panel LC-Display/keypads for user-friendly local configuration. Remote access and configuration can be done via a rear side Ethernet-Interface (WebGUI/SNMP) while it can also be integrated into a third party management and control system (NMS or M&C) via SNMP.
Features & Benefits
- Space saving 1RU/19" chassis
- Available as single (1 x 2:1) and quad (4 x 2:1) redundancy switches
- Manual or automatic switching
- RF power monitoring
- Remote and local alarm monitoring
- DC-through voltage (Option)
- Local & remote configuration
- Front side Status LED´s
- 1:1 redundant dual power supply (hot-swap)
