RF-Design
RF-Design FlexLink R25 Extended L-Band Switch Matrix System Eco and Pro Version 64:64
Weight:
45.00 KGS
Width:
48.26
(cm)
Height:
22.00
(cm)
Depth:
40.00
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.315.9545
FlexLink R25
Extended L-Band Switch Matrix System Eco and Pro Version 64:64
The FlexLink R25-Eco represents a unique, innovative & clever L-Band Switch Matrix system, built into a 5RU/19″ rack mount chassis with only 500mm depth. It performs as a scalable distributive switch/routing platform allowing to switch/route any selected input to any or all outputs and can be assembled with various input/output configurations from 8:8 to 64:64 in one matrix chassis.
The FlexLink R25-Eco is future proof coming with widened bandwidth of 850 – 2450MHz supporting the extended L-Band (850 – 2450MHz) frequency range making it a perfect solution also for KA-Band and HTS applications.
Features & Benefits
- Space saving 5RU/19″ modular rack mount design
- Extended L-Band frequency 850 – 2450MHz
- Up to 64:64 inputs/outputs within one chassis
- Easy expandable with external components
- Coax inputs & outputs 50/75Ohm SMA(f), F(f) or BNC(f) or optical inputs (mixed input & output configuration)

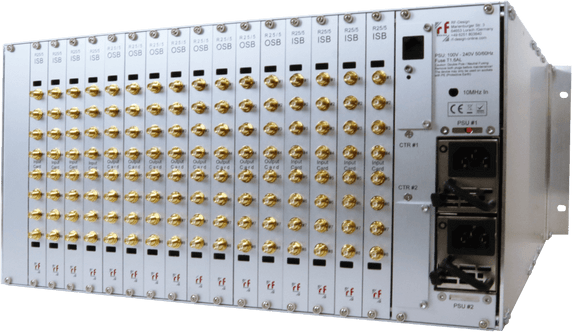

- 10MHz reference signal port (rear side)
- Beneficial options such as switchable LNB-power
- Hot-swappable Controller Card and Matrix Switch-Boards

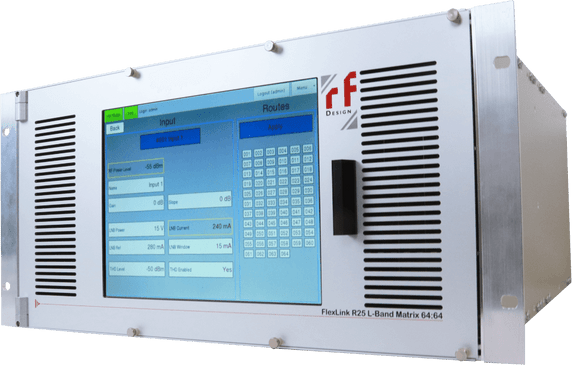

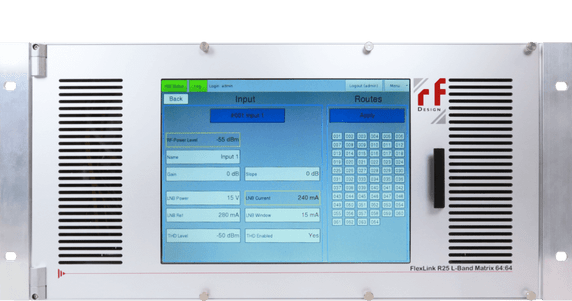

- 10.4″ front-side touchscreen LC-Display for local configuration
- 1000MBit Ethernet-Interface (WebGUI, SNMPv2c)
- 1:1 redundant dual power supply (hot-swappable)
