PPC Belden

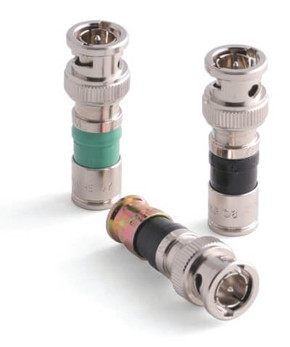

PPC Belden EXBNC6 EX Universal BNC Compression Connector, Headend
Product Code:
EXBNC6
Condition:
New
Weight:
1.00 KGS
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
EX® Universal compression connector, BNC, series 6 cable
Installers are often faced with the issue of identifying old, unmarked 60% through Quad Shield Series cables in the field, and having to guess which connectors offer the best match. This causes avoidable service calls resulting from incorrect cable and connector pairings. Through a unique, patented body design, the EX® connector series achieves true universality on 60% through Quad Shield cable for PE and PVC jackets.
| Technical Data | |
| Specification | Value |
| Bandwidth | 0 MHz to 1 GHz |
| Impedance | 75 Ohms (nominal) |
| Return Loss | Minimum -30 dB to 1 GHz |
| Shielding Effectiveness | -80 dB minimum |
| Operating Voltage | 90 V (at 60 Hz continous AC) |
| Operating Temperature | -40° F to 140° F (-40° C to 60° C) |
| Cable Retention | 50 lb (22.73 kg) minimum |
5 customers are viewing this product
Details
EX® Universal compression connector, BNC, series 6 cable
Installers are often faced with the issue of identifying old, unmarked 60% through Quad Shield Series cables in the field, and having to guess which connectors offer the best match. This causes avoidable service calls resulting from incorrect cable and connector pairings. Through a unique, patented body design, the EX® connector series achieves true universality on 60% through Quad Shield cable for PE and PVC jackets.
| Technical Data | |
| Specification | Value |
| Bandwidth | 0 MHz to 1 GHz |
| Impedance | 75 Ohms (nominal) |
| Return Loss | Minimum -30 dB to 1 GHz |
| Shielding Effectiveness | -80 dB minimum |
| Operating Voltage | 90 V (at 60 Hz continous AC) |
| Operating Temperature | -40° F to 140° F (-40° C to 60° C) |
| Cable Retention | 50 lb (22.73 kg) minimum |
