PPC Belden

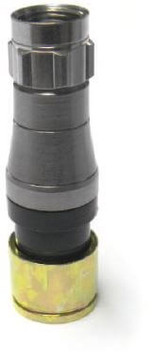

PPC Belden EX11N716PLUS SignalTight Universal Compression RG11 Connector, 7/16 NUT, ST, MOV PIN
Product Code:
EX11N716PLUS
Condition:
New
Weight:
1.00 KGS
$155.71
SignalTight® drop connectors achieve signal transmission approaching that of a fully-tightened connector, even if left loose. This design protects against slow data speeds, maintains ground continuity, reduces QAM errors and packet loss from loose connections. The result leaves a higher-quality customer experience and the elimination of unnecessary service calls to correct matters related to loose connections.
| Technical Data | |
| Specification | Parameter |
| Bandwidth | 0 MHz to 3 GHz |
| Impedance | 75 Ohms (nominal) |
| Return Loss | Minimum -35 dB to 1 GHz, |
| Minimum -20 dB to 3 GHz | |
| Insertion Loss | < .10 dB to 1 GHz |
| Operating Voltage | 90 V (at 60 Hz continuous AC) |
| Operating Temperature | -40° F to +140° F (-40° C to 60° C) |
| Cable Retention (Trishield) | 75 lbs (34.02 kg) minimum |
5 customers are viewing this product
Details
SignalTight® drop connectors achieve signal transmission approaching that of a fully-tightened connector, even if left loose. This design protects against slow data speeds, maintains ground continuity, reduces QAM errors and packet loss from loose connections. The result leaves a higher-quality customer experience and the elimination of unnecessary service calls to correct matters related to loose connections.
| Technical Data | |
| Specification | Parameter |
| Bandwidth | 0 MHz to 3 GHz |
| Impedance | 75 Ohms (nominal) |
| Return Loss | Minimum -35 dB to 1 GHz, |
| Minimum -20 dB to 3 GHz | |
| Insertion Loss | < .10 dB to 1 GHz |
| Operating Voltage | 90 V (at 60 Hz continuous AC) |
| Operating Temperature | -40° F to +140° F (-40° C to 60° C) |
| Cable Retention (Trishield) | 75 lbs (34.02 kg) minimum |
