Norsat International Inc.

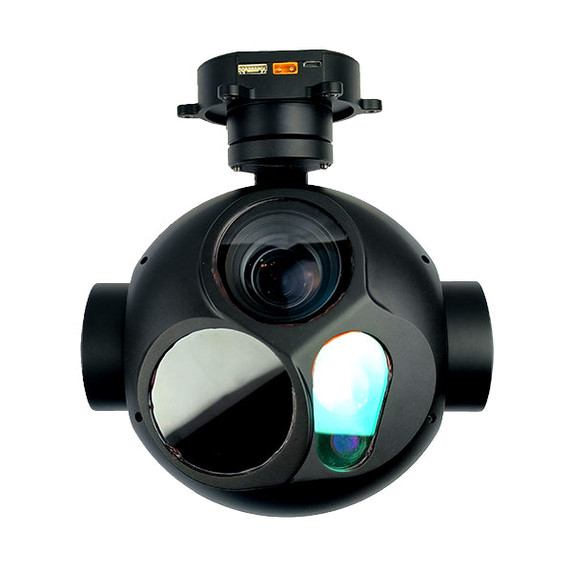

Norsat OPT169BR OPTIVIA Light Gimbal Camera

Name: Norsat OPT169BR OPTIVIA Light Gimbal Camera
Brand: Norsat International Inc.
SKU: OPT169BR
Price: 45500 USD
Availability: InStock

No reviews yet

Product Code: OPT169BR

Condition: New

Availability: 10 - 12 Weeks

Weight: 1.58 KGS

Width: 16.50 (cm)

Height: 19.50 (cm)

Depth: 16.90 (cm)

$45,500.00

KEY SPECIFICATIONS
Optional Upgrade Devices	LRFB3000CD or LRFB5000DD
Recording Time	≥60 min ≥ Small drone flight time
Stabilization Accuracy Horizontal Jitter Angle	±0.03°
Stabilization Accuracy Pitch Jitter Angle	±0.02°
Stabilization Accuracy Roll Jitter Angle	±0.02°
Standard Preinstalled Components	1080P Zoom Camera; Laser Rangefinder; Thermal Infrared Camera
RF SPECIFICATIONS
IR Detection Range	≥3.8km
IR Detector Type	(VOx) Uncooled infrared microbolometer camera
IR Focal Length	35mm
IR Fov	35mm lens FOV: 12.52° × 10.03°
IR Identification Range	≥1.6km
IR Resolution	640×512
IR Temperature Color Panel Status	Black Hot, White Hot, Pseudo-color (≥8 types)
IR Temperature Measurement Range	-20°C to 150°C, expandable to 100°C to 550°C
IR Thermal Sensitivity Netd	50mk@F1.0
IR Wavelength Range	8 - 14μm
Laser Rangefinder Accuracy	±1
Laser Rangefinder Operating Wavelength	1535nm ± 10nm (Class I safety laser)
Laser Rangefinder Ranging Range	50 - 5000m
Visible Light Detection Detection Tracking Target Size	4m × 6m
Visible Light Detection Maximum Relative Humidity	70%
Visible Light Detection Minimum Visibility	≥23 km
Visible Light Detection Range	≥6km
Visible Light Fov Diagonal	WIDE 67.8° ± 5% TELE 2.77° ± 5%
Visible Light Fov Horizontal	WIDE 59.8° ± 5% TELE 2.34° ± 5%
Visible Light Fov Vertical	WIDE 40.5° ± 5% TELE 1.48° ± 5%
Visible Light Identification Range	≥4.5km
Visible Light Minimum Identifiable Target Size	32×32 pixels
Visible Light Resolution	1920×1080
ELECTRICAL SPECIFICATIONS
Power Consumption	Dynamic 10W
Power Supply	DC 12V - 26.2V
INTERFACE SPECIFICATIONS
Control Method	SBUS, PWM signal (requires decoding board), UART command (standard), Network lP(standard)
External Interface Communication Interface	TTL
External Interface Video Interface	RTSP 1080P 30FPS picture-in-picture output
ENVIRONMENTAL SPECIFICATIONS
Temperature Operational	-10°C to +55°C (20% - 80% RH)
Temperature Storage	-20°C to +60°C (20% to 95% RH)
PHYSICAL SPECIFICATIONS
Product Height	195 mm
Product Length	169 mm
Product Weight	1.58 kg
Product Width	165 mm
Roll Angle Elevation	-45° to +45°
Rotation Range Azimuth	360° continuous rotation
Rotation Range Elevation	-30° to +120° (down is positive)
Volume	165 x 169 x 195 mm
ADDITIONAL INFORMATION
Country Of Origin	Made in China
ECCN Number	EAR99
Harmonized System Code	8525893110
Unit Package Dimensions	360 x 260 x 360 mm
Unit Package Weight	7.5 kg
Warranty	1
