Norsat International Inc.
Norsat OPT162BR OPTIVIA 30x EO + 3000m Laser Rangefinder Gimbal Camera
$37,600.00
Zoom the image with the mouse
Norsat International Inc.
Norsat OPT165BX OPTIVIA 30x Optical Zoom + 800m Laser Fill Light Dual-Sensor Gimbal Camera
Product Code:
OPT165BX
Condition:
New
Availability:
10 - 12 Weeks
Weight:
1.07 KGS
Width:
11.00
(cm)
Height:
15.90
(cm)
Depth:
16.45
(cm)
$21,500.00
| KEY SPECIFICATIONS | |
| Recording Time | ≥60 min ≥ Small drone flight time |
| Stabilization Accuracy Horizontal Jitter Angle | ±0.03° |
| Stabilization Accuracy Pitch Jitter Angle | ±0.02° |
| Stabilization Accuracy Roll Jitter Angle | ±0.02° |
| Standard Preinstalled Components | 30x Opt. Zoom Visible Light Camera; Laser Illuminator |
| RF SPECIFICATIONS | |
| Laser Illuminator Angle Narrow | 2.0° @ 800m range (28m spot) |
| Laser Illuminator Angle Wide | 70° @ 80m range (112m spot) |
| Laser Illuminator Operating Range | 850±10nm (Class 3B) |
| Laser Illuminator Range | 800m |
| Visible Light Fov Diagonal | WIDE 67.8° ± 5% TELE 2.77° ± 5% |
| Visible Light Fov Horizontal | WIDE 59.8° ± 5% TELE 2.34° ± 5% |
| Visible Light Fov Vertical | WIDE 40.5° ± 5% TELE 1.48° ± 5% |
| Visible Light Resolution | 1920×1080@30fps |
| ELECTRICAL SPECIFICATIONS | |
| Power Consumption | Dynamic: 10W |
| Power Supply | DC 12V - 26.2V |
| INTERFACE SPECIFICATIONS | |
| Control Method | IP, UART,SBUS (PWM optional) |
| External Interface Communication Interface | TTL |
| External Interface Video Interface | Ethernet (RTSP) output , Local TF card 1080p recording |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature Operational | -10°C to +55°C (20% - 80% RH) |
| Temperature Storage | -20°C to +60°C (20% to 95% RH) |

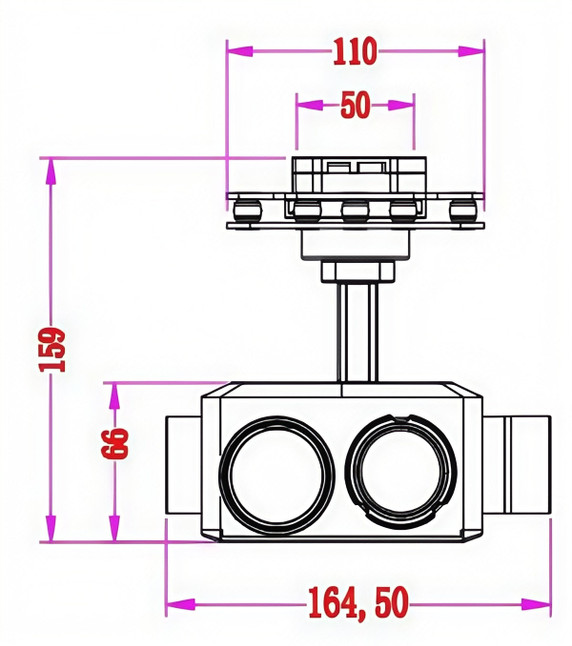

| PHYSICAL SPECIFICATIONS | |
| Product Height | 159 mm |
| Product Length | 164.5 mm |
| Product Weight | 1.066 kg |
| Product Width | 110 mm |
| Roll Angle Elevation | -45° to +45° |
| Rotation Range Azimuth | -290° to +290° |
| Rotation Range Elevation | -45 ° to +120° |
| Volume | 110 × 164.5 × 159 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Harmonized System Code | 8525893900 |
| Unit Package Dimensions | 540 x 350 x 380 mm |
| Unit Package Weight | 15 kg |
| Warranty | 1 |
5 customers are viewing this product
Details
| KEY SPECIFICATIONS | |
| Recording Time | ≥60 min ≥ Small drone flight time |
| Stabilization Accuracy Horizontal Jitter Angle | ±0.03° |
| Stabilization Accuracy Pitch Jitter Angle | ±0.02° |
| Stabilization Accuracy Roll Jitter Angle | ±0.02° |
| Standard Preinstalled Components | 30x Opt. Zoom Visible Light Camera; Laser Illuminator |
| RF SPECIFICATIONS | |
| Laser Illuminator Angle Narrow | 2.0° @ 800m range (28m spot) |
| Laser Illuminator Angle Wide | 70° @ 80m range (112m spot) |
| Laser Illuminator Operating Range | 850±10nm (Class 3B) |
| Laser Illuminator Range | 800m |
| Visible Light Fov Diagonal | WIDE 67.8° ± 5% TELE 2.77° ± 5% |
| Visible Light Fov Horizontal | WIDE 59.8° ± 5% TELE 2.34° ± 5% |
| Visible Light Fov Vertical | WIDE 40.5° ± 5% TELE 1.48° ± 5% |
| Visible Light Resolution | 1920×1080@30fps |
| ELECTRICAL SPECIFICATIONS | |
| Power Consumption | Dynamic: 10W |
| Power Supply | DC 12V - 26.2V |
| INTERFACE SPECIFICATIONS | |
| Control Method | IP, UART,SBUS (PWM optional) |
| External Interface Communication Interface | TTL |
| External Interface Video Interface | Ethernet (RTSP) output , Local TF card 1080p recording |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature Operational | -10°C to +55°C (20% - 80% RH) |
| Temperature Storage | -20°C to +60°C (20% to 95% RH) |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 159 mm |
| Product Length | 164.5 mm |
| Product Weight | 1.066 kg |
| Product Width | 110 mm |
| Roll Angle Elevation | -45° to +45° |
| Rotation Range Azimuth | -290° to +290° |
| Rotation Range Elevation | -45 ° to +120° |
| Volume | 110 × 164.5 × 159 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Harmonized System Code | 8525893900 |
| Unit Package Dimensions | 540 x 350 x 380 mm |
| Unit Package Weight | 15 kg |
| Warranty | 1 |
