Norsat International Inc.
Norsat OPT148BX OPTIVIA Three-light And Two-axis Stabilization Small Pod
Product Code:

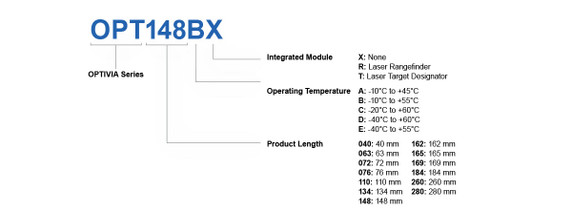

OPT148BX
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.51 KGS
Width:
14.80
(cm)
Height:
13.60
(cm)
Depth:
14.80
(cm)
$20,200.00
| KEY SPECIFICATIONS | |
| Recording Time | ≥60 min ≥ Small drone flight time |
| Stabilization Accuracy Horizontal Jitter Angle | ±0.03° |
| Stabilization Accuracy Pitch Jitter Angle | ±0.02° |
| Stabilization Accuracy Roll Jitter Angle | ±0.02° |
| Standard Preinstalled Components | 4K Zoom Camera; 1080P Zoom Camera; Thermal Infrared Camera |
| RF SPECIFICATIONS | |
| IR Detection Range | ≥5km |
| IR Detector Type | (VOx) Uncooled infrared microbolometer camera |
| IR Focal Length | 45mm |
| IR Fov | 45mm lens FOV: 9.8° × 7.8° |
| IR Identification Range | ≥2.5km |
| IR Resolution | 640×512 |
| IR Temperature Color Panel Status | Black Hot, White Hot, Pseudo-color (≥8 types) |
| IR Temperature Measurement Range | -20°C to 150°C, expandable to 100°C to 550°C |
| IR Thermal Sensitivity Netd | 50mk@F1.0 |
| IR Wavelength Range | 8 - 14μm |
| Visible Light Detection Detection Tracking Target Size | 4m × 6m |
| Visible Light Detection Maximum Relative Humidity | 70% |
| Visible Light Detection Minimum Visibility | ≥23 km |
| Visible Light Detection Range | ≥5km |
| Visible Light Fov | 4K CameraFOV: 10.1°×7.6° (35 mm); 1080P CameraFOV: 60°×43° (6 mm) |
| Visible Light Identification Range | ≥2km |
| Visible Light Minimum Identifiable Target Size | 32×32 pixels |
| Visible Light Resolution | 4K, 1080P |
| ELECTRICAL SPECIFICATIONS | |
| Power Consumption | Dynamic 6.4W |
| Power Supply | DC 12V - 26.2V |
| INTERFACE SPECIFICATIONS | |
| Control Method | Network Control:Ground Station can be controlled by mouse, touchscreen, and supports scroll wheel operation; Control Protocols Supported: Supports Network IP, Serial(UART) , SBUS, PWM |
| External Interface Communication Interface | TTL |
| External Interface Video Interface | Network H.264 Stream Output |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature Operational | -10°C to +55°C (20% - 80% RH) |
| Temperature Storage | -20°C to +60°C (20% to 95% RH) |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 136 mm |
| Product Length | 148 mm |
| Product Weight | 0.51 kg |
| Product Width | 148 mm |
| Rotation Range Azimuth | Full 360° unlimited azimuth rotation |
| Rotation Range Elevation | -20° to +180° |
| Volume | Φ: 148 x H: 136 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Harmonized System Code | 8525893110 |
| Unit Package Dimensions | 340 x 240 x 300 mm |
| Unit Package Weight | 7 kg |
| Warranty | 1 |
5 customers are viewing this product
Details
| KEY SPECIFICATIONS | |
| Recording Time | ≥60 min ≥ Small drone flight time |
| Stabilization Accuracy Horizontal Jitter Angle | ±0.03° |
| Stabilization Accuracy Pitch Jitter Angle | ±0.02° |
| Stabilization Accuracy Roll Jitter Angle | ±0.02° |
| Standard Preinstalled Components | 4K Zoom Camera; 1080P Zoom Camera; Thermal Infrared Camera |
| RF SPECIFICATIONS | |
| IR Detection Range | ≥5km |
| IR Detector Type | (VOx) Uncooled infrared microbolometer camera |
| IR Focal Length | 45mm |
| IR Fov | 45mm lens FOV: 9.8° × 7.8° |
| IR Identification Range | ≥2.5km |
| IR Resolution | 640×512 |
| IR Temperature Color Panel Status | Black Hot, White Hot, Pseudo-color (≥8 types) |
| IR Temperature Measurement Range | -20°C to 150°C, expandable to 100°C to 550°C |
| IR Thermal Sensitivity Netd | 50mk@F1.0 |
| IR Wavelength Range | 8 - 14μm |
| Visible Light Detection Detection Tracking Target Size | 4m × 6m |
| Visible Light Detection Maximum Relative Humidity | 70% |
| Visible Light Detection Minimum Visibility | ≥23 km |
| Visible Light Detection Range | ≥5km |
| Visible Light Fov | 4K CameraFOV: 10.1°×7.6° (35 mm); 1080P CameraFOV: 60°×43° (6 mm) |
| Visible Light Identification Range | ≥2km |
| Visible Light Minimum Identifiable Target Size | 32×32 pixels |
| Visible Light Resolution | 4K, 1080P |
| ELECTRICAL SPECIFICATIONS | |
| Power Consumption | Dynamic 6.4W |
| Power Supply | DC 12V - 26.2V |
| INTERFACE SPECIFICATIONS | |
| Control Method | Network Control:Ground Station can be controlled by mouse, touchscreen, and supports scroll wheel operation; Control Protocols Supported: Supports Network IP, Serial(UART) , SBUS, PWM |
| External Interface Communication Interface | TTL |
| External Interface Video Interface | Network H.264 Stream Output |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature Operational | -10°C to +55°C (20% - 80% RH) |
| Temperature Storage | -20°C to +60°C (20% to 95% RH) |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 136 mm |
| Product Length | 148 mm |
| Product Weight | 0.51 kg |
| Product Width | 148 mm |
| Rotation Range Azimuth | Full 360° unlimited azimuth rotation |
| Rotation Range Elevation | -20° to +180° |
| Volume | Φ: 148 x H: 136 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Harmonized System Code | 8525893110 |
| Unit Package Dimensions | 340 x 240 x 300 mm |
| Unit Package Weight | 7 kg |
| Warranty | 1 |
