Norsat International Inc.

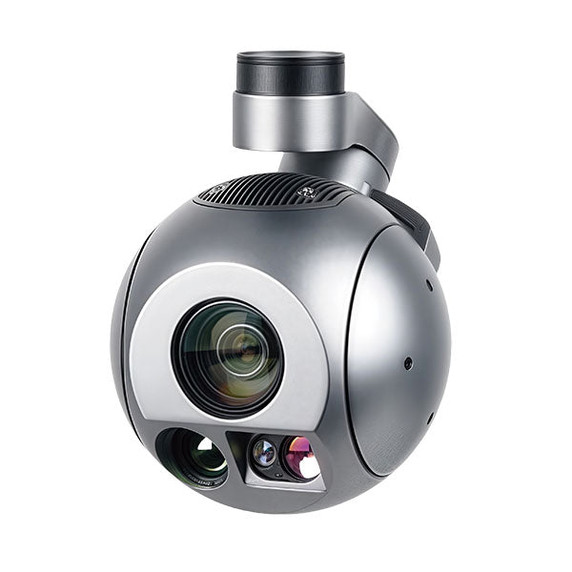

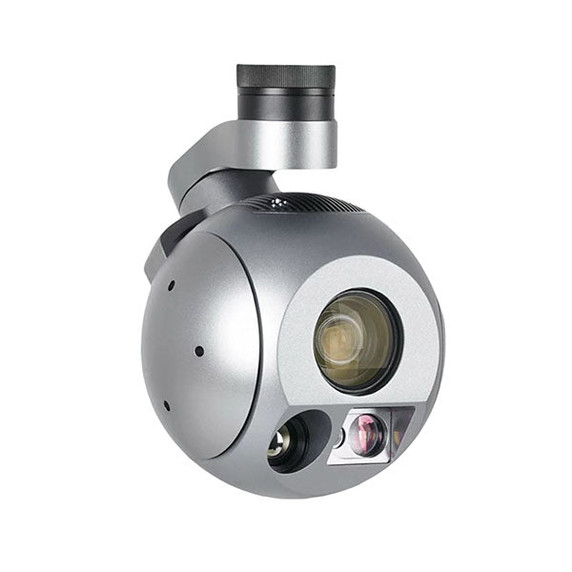

Norsat OPT134CR OPTIVIA Electro-Optical Pod (Quick-Disconnect with Fast Release Mechanism)
Product Code:
OPT134CR
Condition:
New
Availability:
10 - 12 Weeks
Weight:
1.14 KGS
Width:
12.50
(cm)
Height:
21.04
(cm)
Depth:
13.42
(cm)
$42,200.00
Optional Upgrade Devices:
LRFB3200CC or LRFB2500CC or LRFB5000DD
| KEY SPECIFICATIONS | |
| Optional Upgrade Devices | LRFB3200CC or LRFB2500CC or LRFB5000DD |
| Recording Time | 4h |
| Stabilization Accuracy Horizontal Jitter Angle | ±0.02° |
| Stabilization Accuracy Pitch Jitter Angle | ±0.02° |
| Stabilization Accuracy Roll Jitter Angle | ±0.02° |
| Standard Preinstalled Components | 40×Zoom&32×Digital Zoom; Laser Rangefinder; Thermal Infrared Camera |
| RF SPECIFICATIONS | |
| IR Detection Range | Human (1.8 × 0.5m): 792m, Vehicle (4.2 × 1.8m): 3km |
| IR Detector Type | (VOx) Uncooled infrared microbolometer camera |
| IR Focal Length | 19mm |
| IR Fov | Horizontal: 22.9°; Vertical: 18.4; Diagonal: 29.0° |
| IR Identification Range | Human (1.8 × 0.5m): 198m, Vehicle (4.2 × 1.8m): 607m |
| IR Resolution | 640×512@60fps |
| IR Temperature Color Panel Status | White Hot (Default); Black Hot (Inverted); Pseudo Color (Rainbow/Ironbow preset) |
| IR Temperature Measurement Range | -20°C to +550°C |
| IR Thermal Sensitivity Netd | 50mk@F1.0 |
| IR Wavelength Range | 8 - 14μm |
| Laser Rangefinder Accuracy | ±1 |
| Laser Rangefinder Operating Wavelength | 1535nm ± 5nm |
| Laser Rangefinder Ranging Range | Human (1.8 × 0.5m): ≥15m - 2000m; Vehicle (4.2 × 1.8m): ≥15m - 3000m |
| Visible Light Detection Detection Tracking Target Size | 4.2m x 1.8m |
| Visible Light Detection Maximum Relative Humidity | 70% |
| Visible Light Detection Minimum Visibility | ≥10km |
| Visible Light Detection Range | ≥8.5km |
| Visible Light Fov Diagonal | 29.0° |
| Visible Light Fov Horizontal | 22.9° |
| Visible Light Fov Vertical | 18.4° |
| Visible Light Identification Range | ≥2km |
| Visible Light Minimum Identifiable Target Size | 32×32 pixels |
| Visible Light Resolution | 1920×1080@60fps |
| ELECTRICAL SPECIFICATIONS | |
| Power Consumption | Avg 10W; Peak 16W |
| Power Supply | DC 16V (Input Voltage: 4S - 6S, Output Voltage: 5V (PWM)) |
| INTERFACE SPECIFICATIONS | |
| Control Method | PWM / S.BUS / Serial TTL / TCP (with Network Output) / UDP (with Network Output); One-Click Restore |
| External Interface Communication Interface | TTL |
| External Interface Video Interface | Network/SDL |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature Operational | -20°C to +60°C |
| Temperature Storage | -40°C to +60 °C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 210.4 mm |
| Product Length | 134.2 mm |
| Product Weight | 1.136 kg |
| Product Width | 125 mm |
| Roll Angle Elevation | -40° to +40° |
| Rotation Range Azimuth | -300° to +300 °/±360°×n（Network Output-Only Version） |
| Rotation Range Elevation | -60° to +130° |
| Volume | 134.2 × 125 × 210.4 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Harmonized System Code | 8525893110 |
| Unit Package Dimensions | 370 x 240 x 380 mm |
| Unit Package Weight | 7 kg |
| Warranty | 1 |
