Norsat International Inc.
Norsat ELMTBKU006-SN-EOL ELEMENT 6W Ku-Band MINIBUC - DEMO
Product Code:

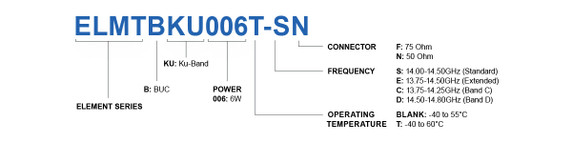

ELMTBKU006-SN-EOL
Condition:
New
Availability:
2 pcs
Weight:
0.98 KGS
Width:
9.74
(cm)
Height:
5.50
(cm)
Depth:
15.88
(cm)
$680.00
| KEY SPECIFICATIONS | |
| Band | Ku-Band |
| Band Type | S: Standard |
| External Ref Freq | 10 MHz (sine-wave), - 5 to +5 dBm |
| Input Frequency Band 1 | 950 - 1450 MHz |
| LO Frequency 1 | 13.05 GHz |
| Output Frequency Band 1 | 14.00 - 14.50 GHz |
| Output Power Rated | 6W |
| RF SPECIFICATIONS | |
| Gain Flatness (40Mhz) | ≤ 1.5 dB p-p |
| Gain Flatness (Over Full Band) | ≤ 4 dB p-p |
| Gain Flatness (Over Temperature) | ≤ 4.0 dB p-p |
| Input VSWR | 2.0 : 1 max. |
| Linear Gain Max | 65 dB |
| Linear Gain Min | 55 dB |
| Linear Gain Typ | 60 dB |
| Output P1db | 37.8 dBm min. |
| Output Power Psat | 38.3 dBm min. |
| Output Spurious In Band | ≤ -60 dBc |
| Output Spurious Out Of Band | ≤ -50 dBc |
| Output VSWR | 2.0 : 1 max. |
| Phase Noise 100Khz Offset Max | -90 dBc/Hz |
| ELECTRICAL SPECIFICATIONS | |
| Power Consumption | 48W max. |
| Power Requirements | +15 to +30V DC |
| INTERFACE SPECIFICATIONS | |
| IF Connector | N-Connector |
| RF Output Connector | WR75G |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 0 - 100% condensing |
| IP Rating | IP 67 |
| Temperature Operational | -40°C to +55°C |
| PHYSICAL SPECIFICATIONS | |
| Enclosed Accessories | Screws, Gasket |
| Product Height | 55 mm |
| Product Length | 158.8 mm |
| Product Weight | 0.98 kg |
| Product Width | 97.4 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0.69 kg |
| Aluminium COO | KR |
| Aluminium Total Value | $ 1.725 |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | EAR99 |
| Ex Works | Korea |
| Harmonized System Code | 8543700000 |
| Unit Package Weight | 1.6 kg |
| Warranty | 1 year |
