Norsat International Inc.
Norsat ELMTBKU003-EF 3W Ku-Band BUC
Product Code:

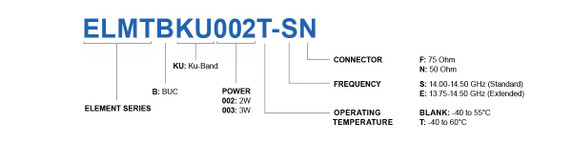

ELMTBKU003-EF
Availability:
YES
Weight:
0.70 KGS
Width:
9.51
(cm)
Height:
5.83
(cm)
Depth:
12.84
(cm)
$481.48
Norsat Satellite Communication solutions are renowned for their high quality, reliability, and innovation. The Ku ELEMENT series offers small size and weight with a variety of frequency options that make it ideal for VSAT applications.
| KEY SPECIFICATIONS | |
| Product Family | ELEMENT |
| Band | Ku-Band |
| Output Power (Rated) | 3W |
| Input Frequency - Band 1 | L-Band: 950 - 1700 MHz |
| Output Frequency 1 | Ku-Band: 13.75 - 14.50 GHz |
| RF SPECIFICATIONS | |
| Output Power (Saturated) | 34.3 dBm min. |
| Output Power( P1dB) | 34 dBm min. |
| Noise Power Density | -80 dBm/Hz in Tx; -156 dBm/Hz in Rx |
| LO Frequency 1 | 12.80 GHz |
| Phase Noise @ 100Hz offset | -60 dBc/Hz |
| Phase Noise @ 1KHz offset | -70 dBc/Hz |
| Phase Noise @ 10KHz offset | -80 dBc/Hz |
| Phase Noise @ 100KHz offset | -90 dBc/Hz |
| Phase Noise @ 1MHz offset | -100 dBc/Hz |
| Gain Variation over operating band | ≤ 4 dB p-p |
| Gain Variation over temperature | ≤ 4.0 dB p-p |
| Input VSWR | 2.0 : 1 |
| Output VSWR | 2.0 : 1 |
| Spurious | ≤ -60 dBc (in band); ≤ -50 dBc (out of band) |
| ELECTRICAL SPECIFICATIONS | |
| Power Consumption @ P1dB | 18W max. |
| Power Requirements | +15V to +60V DC via IFL |
| INTERFACE SPECIFICATIONS | |
| RF Input Connector | F-75 Ohm |
| RF Output Connector | WR-75 waveguide grooved |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature - Operational | -40 to +55°C |
| Temperature - Storage | -40 to +80°C |
| Humidity | 0-100% condensing |
| PHYSICAL SPECIFICATIONS | |
| Enclosed Accessories | Screws, Gasket |
| Dimensions (L x W x H) | 128.4 x 95.1 x 58.3 mm |
| Weight | 700g |
5 customers are viewing this product
Details
Norsat Satellite Communication solutions are renowned for their high quality, reliability, and innovation. The Ku ELEMENT series offers small size and weight with a variety of frequency options that make it ideal for VSAT applications.
| KEY SPECIFICATIONS | |
| Product Family | ELEMENT |
| Band | Ku-Band |
| Output Power (Rated) | 3W |
| Input Frequency - Band 1 | L-Band: 950 - 1700 MHz |
| Output Frequency 1 | Ku-Band: 13.75 - 14.50 GHz |
| RF SPECIFICATIONS | |
| Output Power (Saturated) | 34.3 dBm min. |
| Output Power( P1dB) | 34 dBm min. |
| Noise Power Density | -80 dBm/Hz in Tx; -156 dBm/Hz in Rx |
| LO Frequency 1 | 12.80 GHz |
| Phase Noise @ 100Hz offset | -60 dBc/Hz |
| Phase Noise @ 1KHz offset | -70 dBc/Hz |
| Phase Noise @ 10KHz offset | -80 dBc/Hz |
| Phase Noise @ 100KHz offset | -90 dBc/Hz |
| Phase Noise @ 1MHz offset | -100 dBc/Hz |
| Gain Variation over operating band | ≤ 4 dB p-p |
| Gain Variation over temperature | ≤ 4.0 dB p-p |
| Input VSWR | 2.0 : 1 |
| Output VSWR | 2.0 : 1 |
| Spurious | ≤ -60 dBc (in band); ≤ -50 dBc (out of band) |
| ELECTRICAL SPECIFICATIONS | |
| Power Consumption @ P1dB | 18W max. |
| Power Requirements | +15V to +60V DC via IFL |
| INTERFACE SPECIFICATIONS | |
| RF Input Connector | F-75 Ohm |
| RF Output Connector | WR-75 waveguide grooved |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature - Operational | -40 to +55°C |
| Temperature - Storage | -40 to +80°C |
| Humidity | 0-100% condensing |
| PHYSICAL SPECIFICATIONS | |
| Enclosed Accessories | Screws, Gasket |
| Dimensions (L x W x H) | 128.4 x 95.1 x 58.3 mm |
| Weight | 700g |
Download
| Download Name | |
| Norsat ELMTBKU003-EF 3W Ku-Band BUC Data Sheet | |
