Norsat International Inc.
Norsat ATOMBKUG080E2F 80W Ku-Band BUC
Product Code:
ATOMBKUG080E2F
Availability:
YES
Weight:
2.30 KGS
Width:
9.40
(cm)
Height:
15.60
(cm)
Depth:
16.40
(cm)
$24,878.83
The Norsat ATOM series of block upconverters (BUC) are among the smallest, lightest, and most energy efficient transmitters available. The high efficiency of ATOM reduces power consumption significantly, delivering considerable operational cost savings over the lifetime of the device.

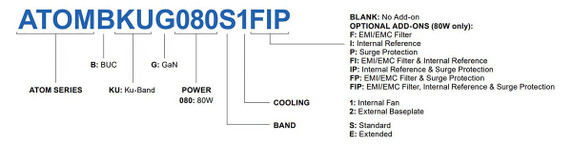

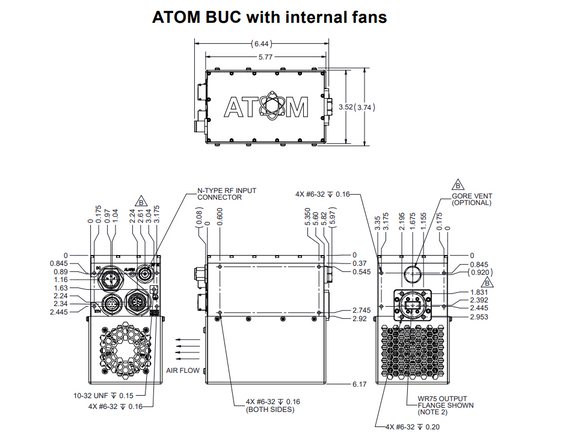

| ATOM BUC 80W, Ku-Band GaN, 13.75-14.50 GHz, EXT BASEPLATE,N-CONN,WR75, EMI FLTR |
| KEY SPECIFICATIONS | |
| Product Family | ATOM |
| Band | Ku-Band |
| Output Power (Rated) | 80W |
| Input Frequency - Band 1 | L-Band: 950 - 1700 MHz |
| Output Frequency 1 | Ku-Band: 13.75 - 14.50 GHz |
| RF SPECIFICATIONS | |
| Output Power (Saturated) | 49 dBm min. |
| Noise Power Density | -65 dBm/Hz in Tx, -156 dBm/Hz in Rx |
| Phase Noise @ 100Hz offset | -63 dBc/Hz |
| Phase Noise @ 1KHz offset | -73 dBc/Hz |
| Phase Noise @ 10KHz offset | -83 dBc/Hz |
| Phase Noise @ 100KHz offset | -93 dBc/Hz |
| Phase Noise @ 1MHz offset | -103 dBc/Hz |
| Gain Variation over operating band | ≤ 3 dB p-p |
| Gain Variation over temperature | ≤ 3.0 dB p-p |
| Input VSWR | 1.5 : 1 |
| Output VSWR | 2.5 : 1 |
| Spurious | In-Band: ≤ -60 dBc; Out-of-Band: ≤ -60 dBc |
| ELECTRICAL SPECIFICATIONS | |
| Input Voltage | 18V to + 56V DC |
| Power Consumption @Psat | 370 W max. |
| Power Connector | MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins. 58-533723-4P |
| INTERFACE SPECIFICATIONS | |
| RF Input Connector | N- 50 Ohm |
| RF Output Connector | WR-75 waveguide grooved |
| M & C SPECIFICATIONS | |
| M & C Interface | RS-232 & RS-485 & Ethernet |
| M & C Connector | MIL-26482 Series 1 receptacle, Shell size 12, 10 Pins(RS-485 & RS-232); MIL-26482 Series 1 receptacle, Shell Size 10, 6 Pins(Ethernet) |
| Mute Control | Fully configurable |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature - Operational | -40 to +60°C |
| Temperature - Storage | -50 to +80°C |
| Humidity | 100% condensing |
| PHYSICAL SPECIFICATIONS | |

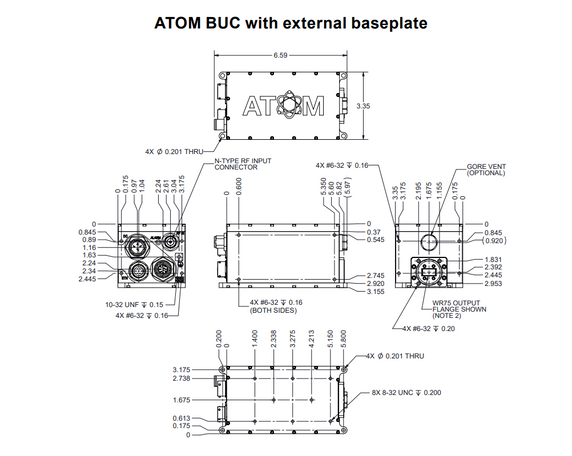

| Cooling | External Baseplate |
| Enclosed Accessories | Screws, Gasket, M&C Connector, Power Connector |
| Dimensions (L x W x H) | 164 x 94 x 156 mm |
| Weight | 2.30 kg |
5 customers are viewing this product
Details
The Norsat ATOM series of block upconverters (BUC) are among the smallest, lightest, and most energy efficient transmitters available. The high efficiency of ATOM reduces power consumption significantly, delivering considerable operational cost savings over the lifetime of the device.
| ATOM BUC 80W, Ku-Band GaN, 13.75-14.50 GHz, EXT BASEPLATE,N-CONN,WR75, EMI FLTR |
| KEY SPECIFICATIONS | |
| Product Family | ATOM |
| Band | Ku-Band |
| Output Power (Rated) | 80W |
| Input Frequency - Band 1 | L-Band: 950 - 1700 MHz |
| Output Frequency 1 | Ku-Band: 13.75 - 14.50 GHz |
| RF SPECIFICATIONS | |
| Output Power (Saturated) | 49 dBm min. |
| Noise Power Density | -65 dBm/Hz in Tx, -156 dBm/Hz in Rx |
| Phase Noise @ 100Hz offset | -63 dBc/Hz |
| Phase Noise @ 1KHz offset | -73 dBc/Hz |
| Phase Noise @ 10KHz offset | -83 dBc/Hz |
| Phase Noise @ 100KHz offset | -93 dBc/Hz |
| Phase Noise @ 1MHz offset | -103 dBc/Hz |
| Gain Variation over operating band | ≤ 3 dB p-p |
| Gain Variation over temperature | ≤ 3.0 dB p-p |
| Input VSWR | 1.5 : 1 |
| Output VSWR | 2.5 : 1 |
| Spurious | In-Band: ≤ -60 dBc; Out-of-Band: ≤ -60 dBc |
| ELECTRICAL SPECIFICATIONS | |
| Input Voltage | 18V to + 56V DC |
| Power Consumption @Psat | 370 W max. |
| Power Connector | MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins. 58-533723-4P |
| INTERFACE SPECIFICATIONS | |
| RF Input Connector | N- 50 Ohm |
| RF Output Connector | WR-75 waveguide grooved |
| M & C SPECIFICATIONS | |
| M & C Interface | RS-232 & RS-485 & Ethernet |
| M & C Connector | MIL-26482 Series 1 receptacle, Shell size 12, 10 Pins(RS-485 & RS-232); MIL-26482 Series 1 receptacle, Shell Size 10, 6 Pins(Ethernet) |
| Mute Control | Fully configurable |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature - Operational | -40 to +60°C |
| Temperature - Storage | -50 to +80°C |
| Humidity | 100% condensing |
| PHYSICAL SPECIFICATIONS | |
| Cooling | External Baseplate |
| Enclosed Accessories | Screws, Gasket, M&C Connector, Power Connector |
| Dimensions (L x W x H) | 164 x 94 x 156 mm |
| Weight | 2.30 kg |
Download
| Download Name | |
| Norsat ATOMBKUG080E2F 80W Ku-Band BUC Data Sheet | |
