Norsat International Inc.
Norsat ATOMBKU080S1AFI 80W Ku-Band BUC
Product Code:

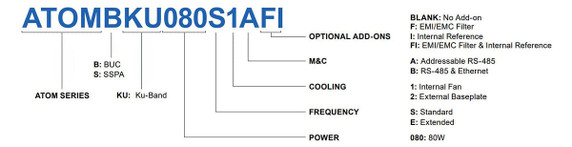

ATOMBKU080S1AFI
Availability:
YES
Weight:
6.50 KGS
Width:
13.50
(cm)
Height:
16.40
(cm)
Depth:
29.50
(cm)
$40,626.83
The Norsat ATOM series of block upconverters (BUC) are among the smallest, lightest, and most energy efficient transmitters available. The high efficiency of ATOM reduces power consumption significantly, delivering considerable operational cost savings over the lifetime of the device.
| ATOM BUC 80W,KU-BAND 14.0-14.5GHz,INT FAN,N-CONN,WR75,Addressable RS-485,EMI FLTR,INT REF |
| KEY SPECIFICATIONS | |
| Product Family | ATOM |
| Band | Ku-Band |
| Output Power (Rated) | 80W |
| Input Frequency - Band 1 | L-Band: 950 - 1450 MHz |
| Output Frequency 1 | Ku-Band: 14.0 - 14.50 GHz |
| RF SPECIFICATIONS | |
| Output Power (Saturated) | 50 dBm min. |
| Output Power( P1dB) | 49 dBm min. |
| LO Frequency 1 | 13.05 GHz |
| Phase Noise @ 1KHz offset | -72 dBc/Hz |
| Phase Noise @ 10KHz offset | -82 dBc/Hz |
| Phase Noise @ 100KHz offset | -92 dBc/Hz |
| Phase Noise @ 1MHz offset | -102 dBc/Hz |
| Gain Variation over operating band | ≤ 6.0 dB p-p |
| Gain Variation over temperature | ≤ 3.0 dB p-p |
| Input VSWR | 2.0 : 1 |
| Output VSWR | 2.0 : 1 |
| Spurious | In-Band: ≤ -55 dBc; Out-of-Band(@P1dB):≤ -55 dBc |
| ELECTRICAL SPECIFICATIONS | |
| Input Voltage | 18V to + 56V DC |
| Power Consumption @Psat | 610 W max. |
| Power Connector | MIL-26482 Series 1 receptacle, Shell Size 22, 4 Pins. ACS06E22-22P-472 |
| INTERFACE SPECIFICATIONS | |
| RF Input Connector | N- 50 Ohm |
| RF Output Connector | WR-75 waveguide grooved |
| M & C SPECIFICATIONS | |
| M & C Interface | Addressable RS-485 |
| M & C Connector | MIL-26482 Series 1 receptacle, Shell Size 12, 10 Pins. 58-533723-10P |
| Mute Control | Fully configurable |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature - Operational | -40 to +60°C |
| Temperature - Storage | -50 to +80°C |
| Humidity | 100% condensing |
| PHYSICAL SPECIFICATIONS | |
| Cooling | Internal Fan |
| Enclosed Accessories | Screws, Gasket, M&C Connector, Power Connector |

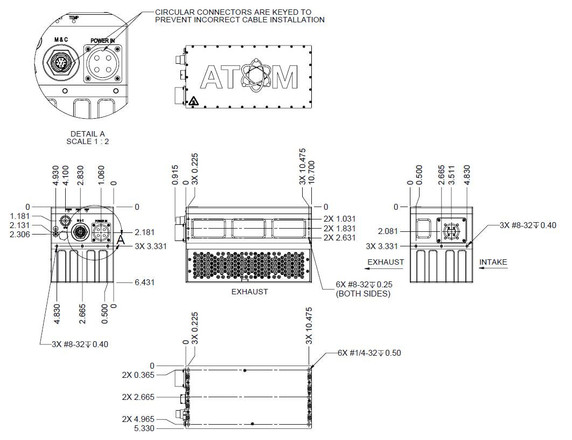

| Dimensions (L x W x H) | 295 x 135 x 164 mm |
| Weight | < 6.5 kg |
5 customers are viewing this product
Details
The Norsat ATOM series of block upconverters (BUC) are among the smallest, lightest, and most energy efficient transmitters available. The high efficiency of ATOM reduces power consumption significantly, delivering considerable operational cost savings over the lifetime of the device.
| ATOM BUC 80W,KU-BAND 14.0-14.5GHz,INT FAN,N-CONN,WR75,Addressable RS-485,EMI FLTR,INT REF |
| KEY SPECIFICATIONS | |
| Product Family | ATOM |
| Band | Ku-Band |
| Output Power (Rated) | 80W |
| Input Frequency - Band 1 | L-Band: 950 - 1450 MHz |
| Output Frequency 1 | Ku-Band: 14.0 - 14.50 GHz |
| RF SPECIFICATIONS | |
| Output Power (Saturated) | 50 dBm min. |
| Output Power( P1dB) | 49 dBm min. |
| LO Frequency 1 | 13.05 GHz |
| Phase Noise @ 1KHz offset | -72 dBc/Hz |
| Phase Noise @ 10KHz offset | -82 dBc/Hz |
| Phase Noise @ 100KHz offset | -92 dBc/Hz |
| Phase Noise @ 1MHz offset | -102 dBc/Hz |
| Gain Variation over operating band | ≤ 6.0 dB p-p |
| Gain Variation over temperature | ≤ 3.0 dB p-p |
| Input VSWR | 2.0 : 1 |
| Output VSWR | 2.0 : 1 |
| Spurious | In-Band: ≤ -55 dBc; Out-of-Band(@P1dB):≤ -55 dBc |
| ELECTRICAL SPECIFICATIONS | |
| Input Voltage | 18V to + 56V DC |
| Power Consumption @Psat | 610 W max. |
| Power Connector | MIL-26482 Series 1 receptacle, Shell Size 22, 4 Pins. ACS06E22-22P-472 |
| INTERFACE SPECIFICATIONS | |
| RF Input Connector | N- 50 Ohm |
| RF Output Connector | WR-75 waveguide grooved |
| M & C SPECIFICATIONS | |
| M & C Interface | Addressable RS-485 |
| M & C Connector | MIL-26482 Series 1 receptacle, Shell Size 12, 10 Pins. 58-533723-10P |
| Mute Control | Fully configurable |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature - Operational | -40 to +60°C |
| Temperature - Storage | -50 to +80°C |
| Humidity | 100% condensing |
| PHYSICAL SPECIFICATIONS | |
| Cooling | Internal Fan |
| Enclosed Accessories | Screws, Gasket, M&C Connector, Power Connector |
| Dimensions (L x W x H) | 295 x 135 x 164 mm |
| Weight | < 6.5 kg |
Download
| Download Name | |
| Norsat ATOMBKU080S1AFI 80W Ku-Band BUC Data Sheet | |
