Norsat International Inc.

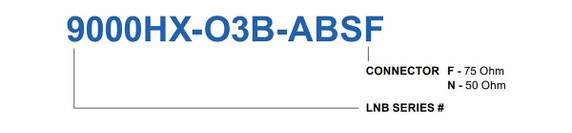

Norsat 9000HX-O3B-ABSF 9000 Dual-mode Ka-Band PLL LNB
Product Code:
9000HX-O3B-ABSF
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.40 KGS
Width:
6.00
(cm)
Height:
3.90
(cm)
Depth:
10.40
(cm)
$2,466.00
Norsat’s Low Noise Blocks (LNBs) provide signal reception for satellite communications around the world. We offer premium performance and reliability in the smallest form factor possible. All of our standard Ka-Band LNBs are backed by a 3 year warranty and nearly forty years of experience as the industry’s leading provider of high performance LNBs.
| KEY SPECIFICATIONS | |
| Band | Ka-Band |
| External Ref Freq | 10 MHz (sine-wave), - 10 to 0 dBm |
| Input Frequency Band 1 | 17.852 - 18.588 GHz |
| Input Frequency Band 2 | 18.372 - 19.300 GHz |
| LO Frequency 1 | 16.80 GHz |
| LO Frequency 2 | 17.40 GHz |
| LO Stability | ±25 KHz |
| LO Type | PLL |
| Noise Figure Max | 1.5 dB |
| Noise Figure Typ | 1.2 dB |
| Number Of Onboard Los | Dual-Band |
| Output Frequency Band 1 | 1052 - 1788 MHz |
| Output Frequency Band 2 | 972 - 1900 MHz |
| RF SPECIFICATIONS | |
| Control Signal 1 | 13V |
| Control Signal 2 | 18V |
| Conversion Gain Max | 65 dB |
| Conversion Gain Min | 55 dB |
| Conversion Gain Typ | 58 dB |
| Gain Flatness (Over Full Band) | ≤ 5 dB p-p max. |
| Input VSWR | 2.0 : 1 max. |
| Output P1db | + 5 dBm min. |
| Output VSWR | 2.0 : 1 max. |
| Phase Noise 0.1Khz Offset Max | -60 dBc/Hz |
| Phase Noise 1Khz Offset Max | -70 dBc/Hz |
| Phase Noise 10Khz Offset Max | -80 dBc/Hz |
| ELECTRICAL SPECIFICATIONS | |
| Power Requirements | +11V to +26V DC |
| INTERFACE SPECIFICATIONS | |
| IF Connector | F-Connector |
| RF Input Connector | WR-42 waveguide grooved |
| ENVIRONMENTAL SPECIFICATIONS | |
| IP Rating | IP 67 |
| Temperature Operational | -40°C to +60°C |
| Temperature Storage | -40 to +80°C |

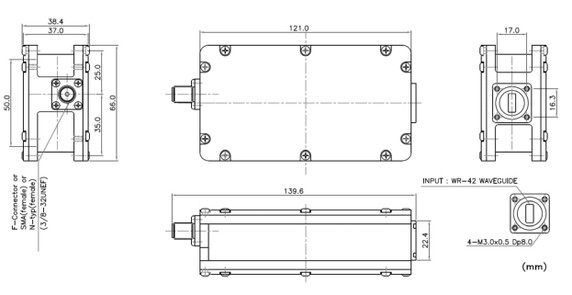

| PHYSICAL SPECIFICATIONS | |
| Product Height | 39 mm |
| Product Length | 104 mm |
| Product Weight | 0.4 kg |
| Product Width | 60 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0.291 kg |
| Aluminium Total Value | $ 0.7275 |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Package Height Case 1 | 70 mm |
| Package Length Case 1 | 187 mm |
| Package Width Case 1 | 100 mm |
| Unit Package Dimensions | 187 x 100 x 70 mm |
| Unit Package Weight | 0.54 kg |
| Warranty | 3 years |
